Вовед
This manual provides essential instructions for the safe and efficient use of your Sencor SRV 1550WH Robot Vacuum Cleaner and Mop. Please read this manual thoroughly before operating the device and keep it for future reference.
Производот завршиview
The Sencor SRV 1550WH is a robot vacuum cleaner and mop designed for autonomous cleaning. It vacuums dirt and simultaneously mops dust from hard floors. Equipped with two side brushes, it effectively cleans along walls and in corners. Its ultra-slim design allows it to navigate under furniture and around obstacles. The SENCOR Smart Room technology ensures efficient movement, and the device features intelligent impact and fall sensors for safe operation.

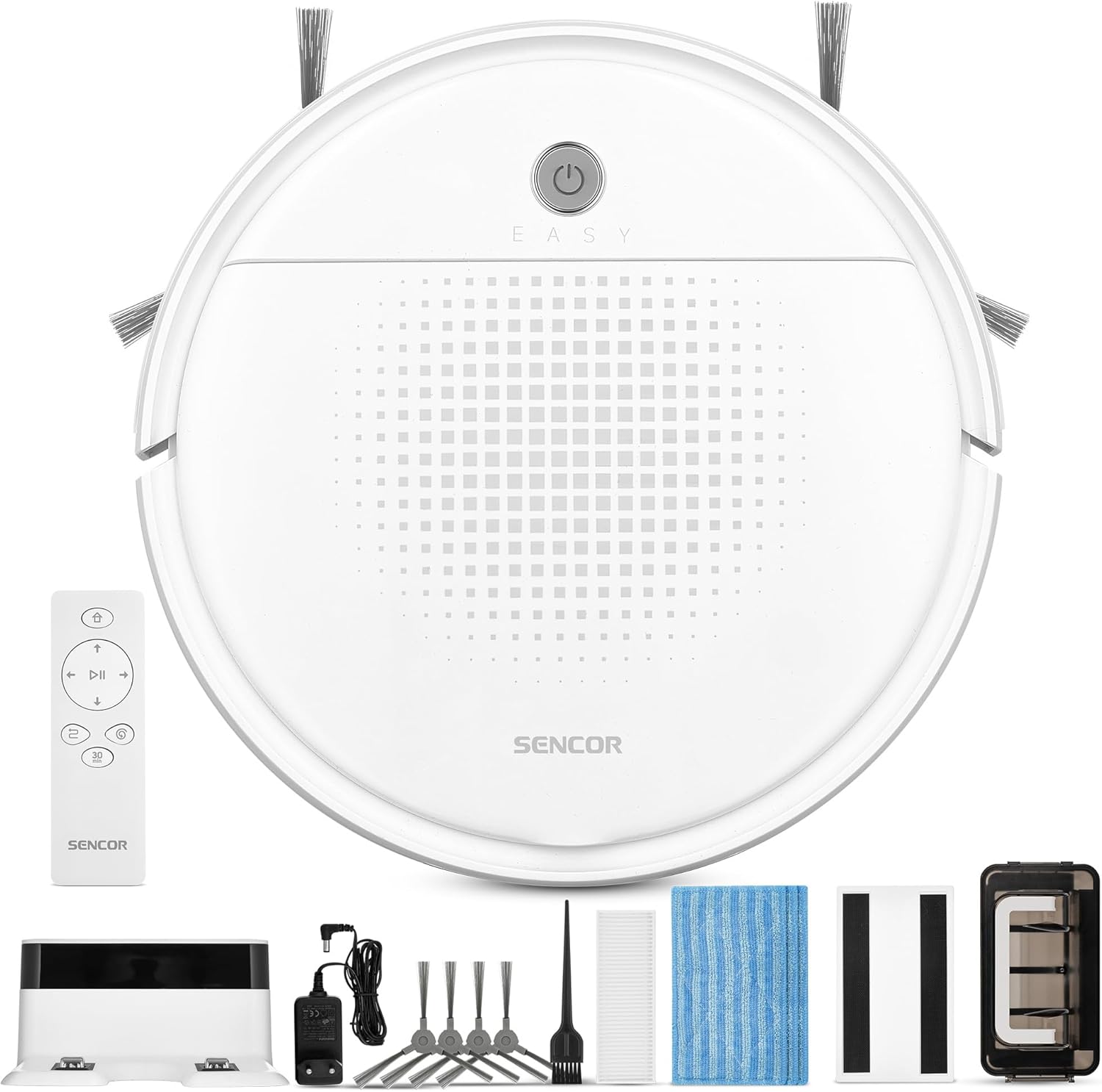

Слика 1: Sencor SRV 1550WH Robot Vacuum Cleaner and Mop with its included accessories, including the charging station, remote control, side brushes, mop pads, and cleaning tools.
Содржина на пакетот
- Robot vacuum cleaner (including two side brushes and filters)
- Станица за полнење на батерии
- Додаток за чистење
- 3x textile mop sleeves
- Далечински управувач
- 2x AAA batteries (for remote control)
- 2x spare rotating side brushes
- Адаптер за напојување
- 1x spare HEPA filter
- Четка за чистење
Инструкции за безбедност
Before using the appliance, please read all safety warnings and instructions. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual in a safe place for future reference.
- Овој апарат може да го користат деца на возраст од 8 години и повеќе и лица со намалени физички, сетилни или ментални способности или недостаток на искуство и знаење доколку им се дадени надзор или инструкции за користење на апаратот на безбеден начин и ги разбираат вклучените опасности .
- Децата не смеат да си играат со апаратот. Чистењето и одржувањето на корисникот не смеат да го вршат деца без надзор.
- Only use the original power adapter and charging station provided by the manufacturer.
- Не го користете апаратот во влажни средини или во близина на вода.
- Погрижете се станицата за полнење да биде поставена на рамна, стабилна површина до ѕид, со слободен простор околу неа.
- Remove any loose cables, small objects, or fragile items from the cleaning area before operation.
- Do not operate the robot over open flames or hot ashes.
- Не дозволувајте роботот да собира големи предмети, течности или материјали што горат/чадат.
- Редовно чистете ги четките и филтрите за да одржите оптимални перформанси.
Поставување
1. Отпакување и првична проверка
Carefully remove all components from the packaging. Check for any signs of damage. Retain the packaging for future transport or storage.
2. Поставување на станица за полнење
Place the charging station against a wall in an open area. Ensure there is at least 1 meter (3 feet) of clear space on both sides and 2 meters (6 feet) in front of the charging station for the robot to easily dock. Connect the power adapter to the charging station and plug it into a power outlet.
3. Инсталирање на странични четки
Turn the robot upside down. Align the side brushes with the corresponding posts on the bottom of the robot and press them down until they click into place. Ensure they are securely attached.
4. Почетна наплата
Place the robot onto the charging station. Ensure the charging contacts on the robot align with those on the station. The indicator light on the robot will show its charging status. For first-time use, charge the robot for at least 5-6 hours to ensure the battery is fully conditioned.
Работа со робот-правосмукалката
1. Вклучување/исклучување
Press and hold the power button on the robot for a few seconds to turn it on or off. Alternatively, use the power button on the remote control.
Слика 2: A hand holding the remote control for the Sencor robot vacuum, with the robot and charging station visible in the background, illustrating remote operation.
2. Започнување на циклус на чистење
Притиснете го "Clean" button on the robot or the remote control to start a cleaning cycle. The robot will automatically select a cleaning path using SENCOR Smart Room technology.
3. Режими на чистење
- Автоматско чистење: The robot navigates and cleans the entire accessible area.
- 30-Minute Program: Ideal for smaller areas or a single room, the robot cleans for approximately 30 minutes before returning to the charging station. Activate this mode via the remote control.
4. Mop Function
To use the mop function, attach a clean textile mop sleeve to the bottom of the robot. The robot will vacuum and mop simultaneously. Ensure the water tank (if applicable, though not explicitly mentioned for this model, it's implied by "laveur") is filled if a wet mop is desired. For this model, it uses an antistatic mop for dust wiping.

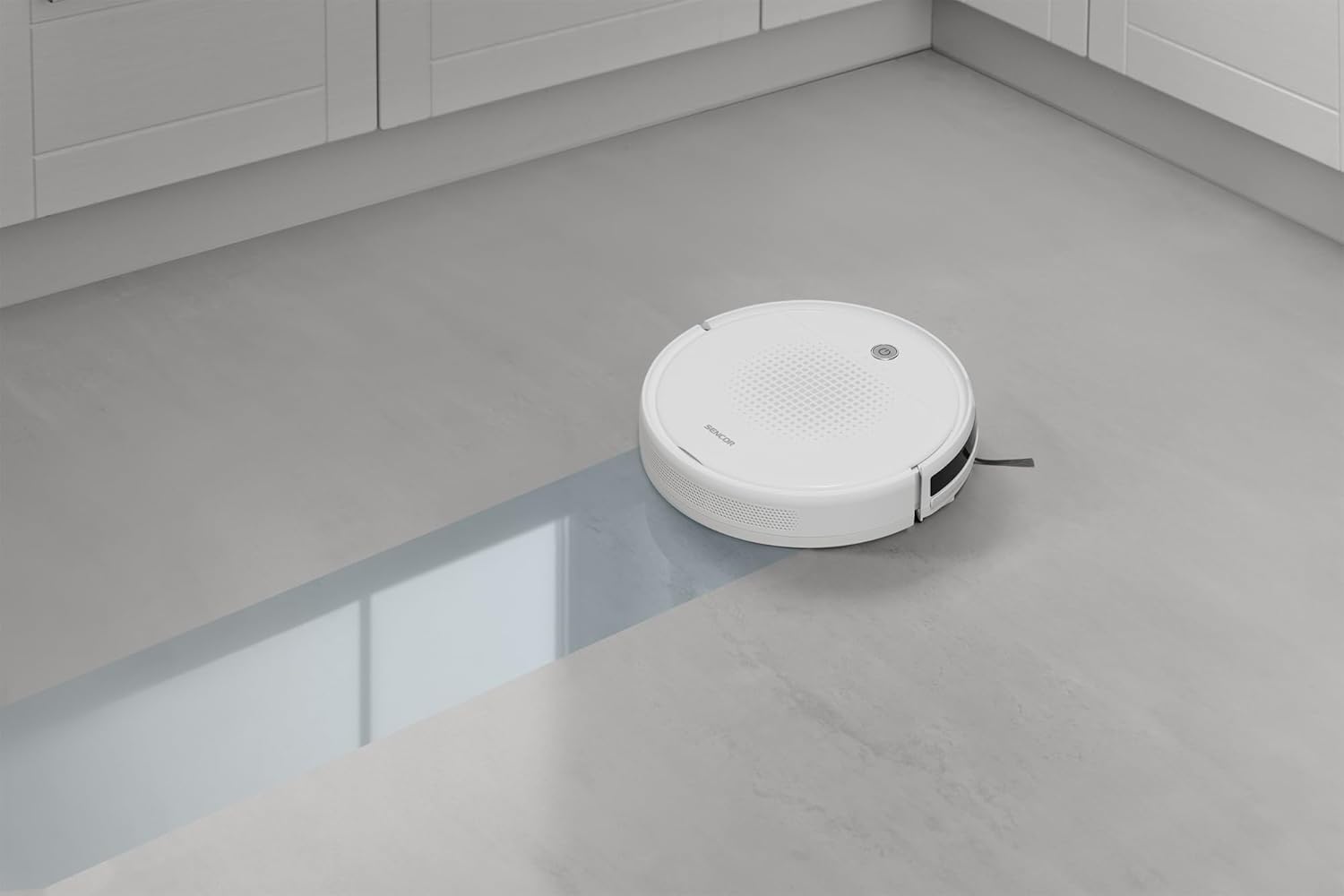

Слика 3: The Sencor robot vacuum cleaner actively mopping a hard floor, leaving a clean path behind it.
5. Automatic Docking and Charging
When the battery is low or a cleaning cycle is complete, the robot will automatically return to its charging station. Ensure the charging station is accessible and powered on.
Слика 4: The Sencor robot vacuum cleaner moving from a carpeted area to a hard floor, demonstrating its ability to clean different surfaces and pick up debris.
Слика 5: The Sencor robot vacuum cleaner operating under a sofa, highlighting its ultra-slim 7 cm design for accessing hard-to-reach areas.
Одржување
Редовното одржување обезбедува оптимални перформанси и го продолжува животниот век на вашиот роботски правосмукалка.
1. Празнење на корпата за прашина
Press the release button to remove the dust bin. Open the dust bin cover and empty its contents into a trash can. It is recommended to empty the dust bin after each cleaning cycle.
2. Чистење/Замена на филтри
Remove the HEPA filter and primary filter from the dust bin. Tap the filters gently to remove dust. The HEPA filter is not washable; replace it every 3-6 months depending on usage. The primary filter can be rinsed with water and air-dried completely before reinstallation.
3. Чистење странични четки
Periodically remove the side brushes by pulling them upwards. Use the provided cleaning brush or a pair of scissors to remove any tangled hair or debris. Reinstall them securely.
4. Cleaning Mop Pads
Remove the textile mop sleeve after each use. Rinse it thoroughly with water and allow it to air dry. Replace mop sleeves when they show signs of wear or reduced effectiveness.
5. Чистење на сензорите и контактите за полнење
Wipe the anti-drop sensors, bumper sensors, and charging contacts on both the robot and the charging station with a clean, dry cloth to ensure proper function.
Решавање проблеми
If your robot vacuum encounters an issue, refer to the following common problems and solutions:
| Проблем | Можна причина | Решение |
|---|---|---|
| Роботот не се вклучува. | Слаба батерија; не е наполнета. | Поставете го роботот на станицата за полнење и осигурајте се дека е целосно наполнет. |
| Роботот не се полни. | Charging contacts are dirty; charging station not powered. | Clean charging contacts on both robot and station. Ensure charging station is plugged in and powered. |
| Роботот често се заглавува. | Obstacles in cleaning path; tangled brushes. | Clear the cleaning area of loose cables, small objects. Clean side brushes for tangled hair. |
| Лоши перформанси на чистење. | Full dust bin; dirty filters; worn brushes. | Empty dust bin. Clean or replace filters. Clean or replace side brushes. |
| Роботот не се враќа на станицата за полнење. | Charging station is blocked or not powered; robot too far from station. | Ensure charging station is accessible and powered. Manually place robot near station to assist docking. |
Спецификации
| Бренд | СЕНЦОР |
| Број на модел | SRV 1550WH |
| Боја | Бело |
| Димензии (Д x Ш x В) | 29 x 29 x 7 cm (11.4 x 11.4 x 2.7 инчи) |
| Тежина | 1.9 килограми (4.19 фунти) |
| Капацитет на корпата за прав | 200 милилитри |
| Voltage | 220 волти |
| Материјал | Пластика |
| Ниво на бучава | 60 децибели |
| Живот на батеријата (работно време) | Up to 60 minutes (1 hour) |
| Посебни карактеристики | Automatic docking, Anti-fall, Anti-collision, Automatic stop, Continuous suction, Simultaneous suction and cleaning, Dirt detection sensor, Logical navigation, Programmable, Pet hair pickup, Easy-to-empty dirt container, Cordless, Bagless, Low noise level, Washable primary filter, HEPA filter. |
| Тип на филтер | ХЕПА |
| Тип на контролер | Далечински управувач |
Гаранција и поддршка
Sencor offers a satisfaction guarantee for this product. Please refer to your purchase documentation for specific warranty terms and conditions.
- Гаранција за задоволство: A 30-day satisfaction guarantee is offered.
- Резервни делови: Информациите за достапноста на резервни делови моментално не се достапни.
- For further assistance or technical support, please contact Sencor customer service through their official webстраницата или информациите за контакт дадени со вашето купување.
