Moman RS-S Motorcycle Helmet Headset & PME1 Phone Holder User Manual

1. Вовед

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Moman RS-S Motorcycle Helmet Headset and PME1 Bike Motorcycle Phone Holder. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.

2. Производот завршиview

2.1 Компоненти

Figure 2.1: Moman RS-S Helmet Headset and PME1 Phone Holder

Moman RS-S Helmet Headset

• Главна единица: Control buttons (Power, Microphone, FM), LED indicator, charging port.
• Говорници: Two 40mm high-fidelity speakers for immersive audio.
• Микрофон: Интегриран микрофон за јасна комуникација.
• Клип за монтирање: For attaching the main unit to the helmet.

Moman PME1 Phone Holder

• Монтирање Clamp: Securely attaches to handlebars.
• Telescopic Arms: Stainless steel arms to firmly hold the phone.
• Силиконски влошки: Full silicone pads for anti-shock and anti-slip protection.
• Безбедносно заклучување: Mechanism to tightly lock the clamp, preventing accidental release.
• Rotatable Joint: Allows for 360-degree rotation and angle adjustment.

2.2 Клучни карактеристики

• Hi-Fi Stereo & Advanced Noise Cancellation: Premium 40mm high-fidelity speakers deliver rich audio. Advanced noise cancellation reduces wind, engine, and background noise for clear sound.

Figure 2.2: Hi-Fi Stereo Sound with 40mm Dynamic Speaker
• AI Voice Assistant & Auto Answer: Hands-free control for music, calls, navigation, and weather. Features a 10-second auto-answer function for incoming calls.


Figure 2.3: AI Voice Assistant for Hands-Free Operation

• Perfect for Solo Riders with FM Radio: Built-in FM radio provides access to various channels for music, news, and entertainment during solo rides.


Figure 2.4: Stereo FM Radio with Stable Signals

• All Round Protection, Never Fall Off: The phone mount uses stainless steel telescopic arms, full silicone pads, and a security lock for triple protection against scratches, shocks, and slips.

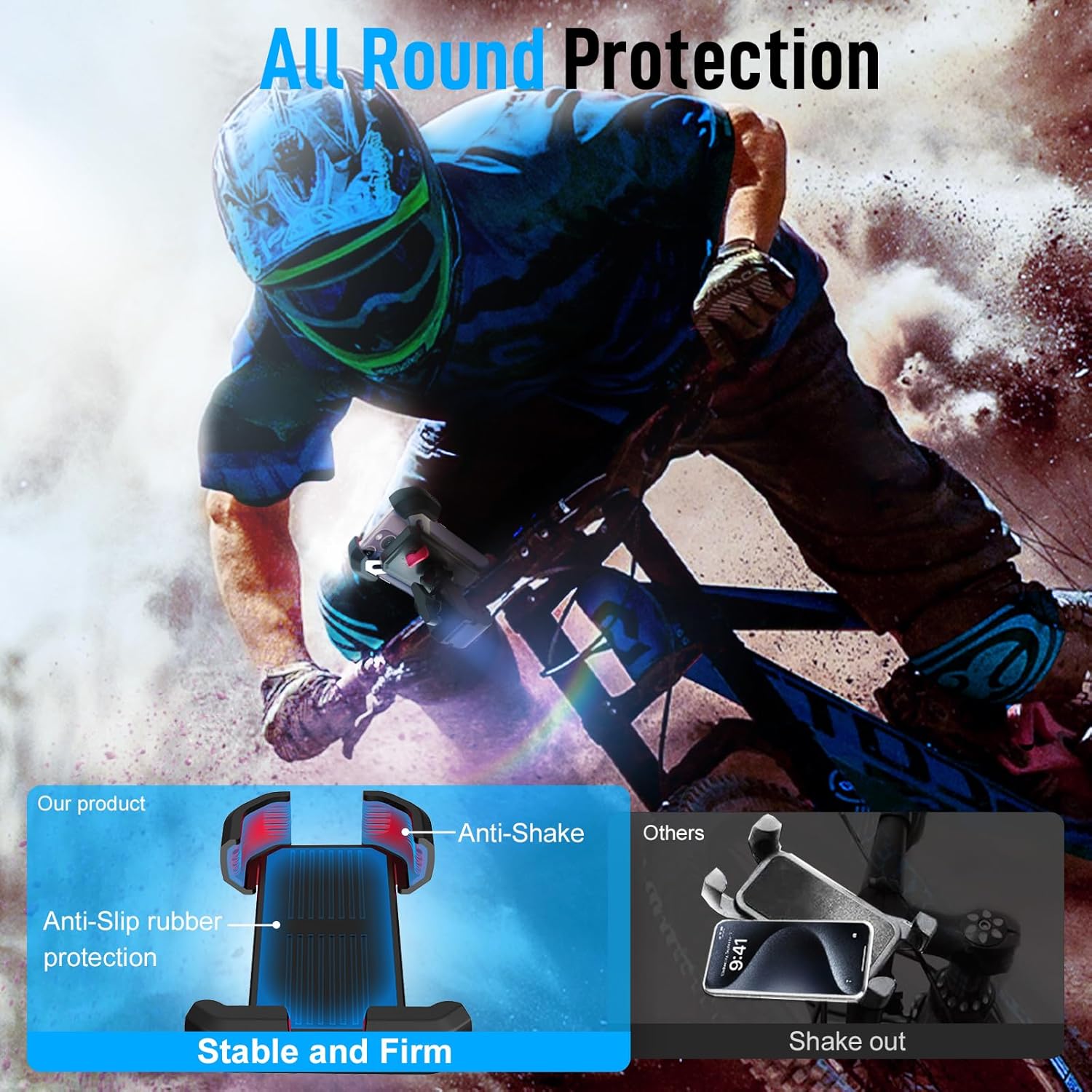

Figure 2.5: All-Round Protection for Phone Holder
• Wide Compatibility For Big Phone & Thick Case: Accommodates mobile phones from 4.5-7 inches with a thickness up to 15mm (including phone cases).
• Unique Design For Easier Use: Features raised, glove-friendly buttons. The headset is designed to be 30% smaller and 30% lighter than comparable models.


Figure 2.6: Unique Design with Raised Buttons, Smaller and Lighter Headset

• Easy ONE-HAND Operation: The phone holder allows for quick and easy phone insertion and removal with one hand.

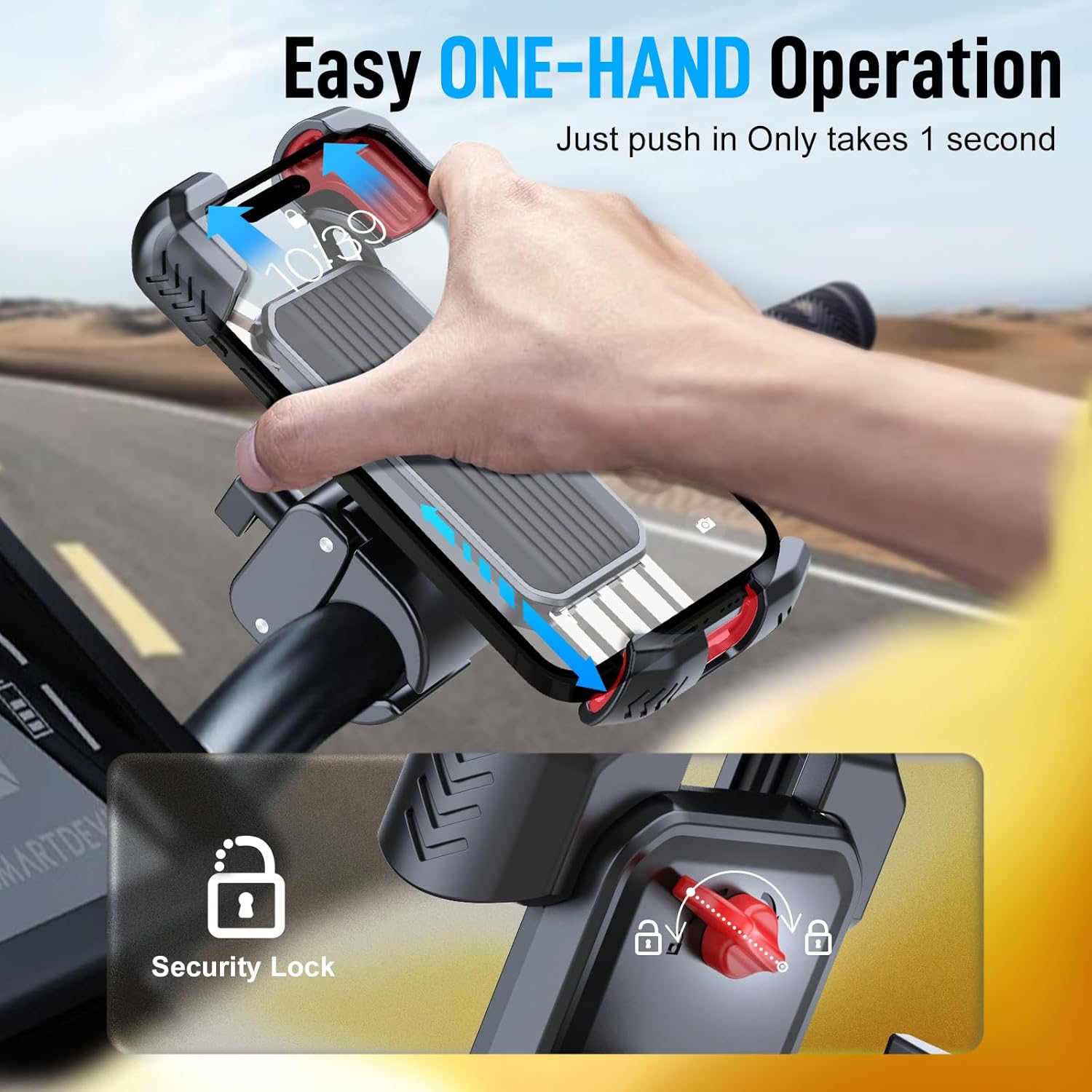

Figure 2.7: Easy One-Hand Operation for Phone Holder

• Дизајн со ротирачки 360°: The phone holder offers full 360-degree rotation for optimal viewинг агли.

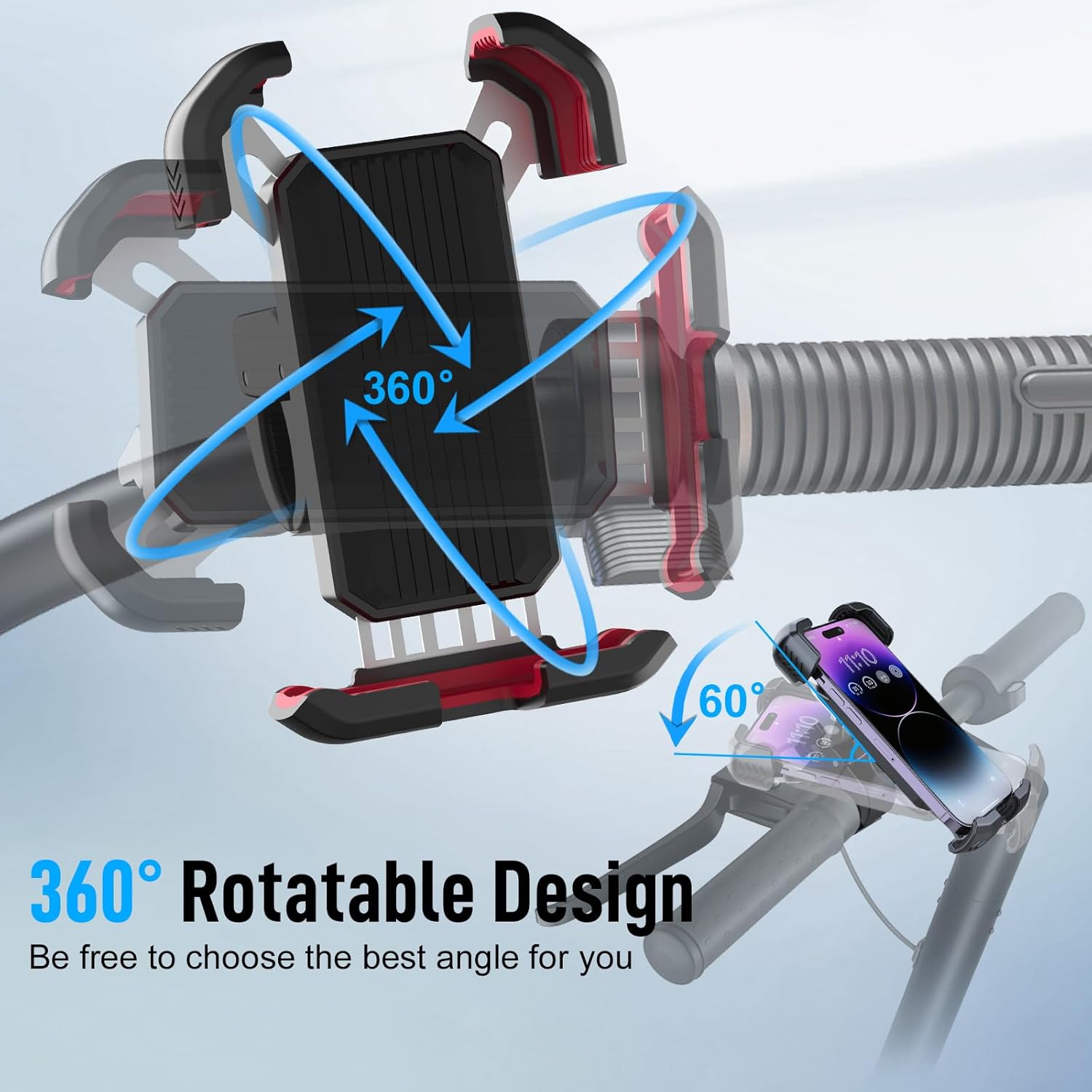

Figure 2.8: 360 Degree Rotatable Design for Phone Holder
• Grip Solid As Rock: Робусниот clamping mechanism ensures the phone holder remains stable and wobble-free on various handlebars.


Figure 2.9: Solid Grip and Compatibility for Phone Holder

3. Поставување

3.1 Moman RS-S Helmet Headset Installation

3.1.1 Полнење на слушалките

Before first use, fully charge the headset. Connect the provided USB charging cable to the headset's charging port and to a standard USB power adapter (not included). The LED indicator will show charging status and turn off when fully charged.

3.1.2 Installing the Headset in Your Helmet

1. Поставување звучници: Locate suitable positions inside your helmet, typically near your ears, where the speakers can be comfortably placed without obstructing airflow or causing pressure points. Use the adhesive backing on the speakers to secure them.
2. Приклучок за микрофон: Attach the microphone to a position inside the helmet where it is close to your mouth but not directly in front of it, to minimize wind noise. Ensure the microphone cable is routed neatly.
3. Монтирање на главната единица: Secure the main headset unit to the side of your helmet using the provided mounting clip. Ensure it is easily accessible for operation and does not interfere with helmet functionality. Route all cables neatly under the helmet padding.

3.1.3 Спарување преку Bluetooth

1. Осигурете се дека слушалките се исклучени.
2. Press and hold the Power button until the LED indicator flashes red and blue alternately, indicating pairing mode.
3. На вашиот паметен телефон, овозможете Bluetooth и пребарајте достапни уреди.
4. Select "Moman RS-S" from the list of devices.
5. Откако ќе се спари, LED индикаторот ќе трепка сино бавно.

3.2 Moman PME1 Phone Holder Installation

3.2.1 Mounting on Handlebars

1. Choose a suitable location on your motorcycle or bicycle handlebars that does not obstruct your view или контроли.
2. Отворете ја монтажата clamp и поставете го околу кормилото.
3. Затегнете ја завртката на clamp until the holder is securely fastened and does not rotate freely.

3.2.2 Securing Your Phone

1. Press the release button or mechanism on the phone holder to extend the telescopic arms.
2. Place your phone into the holder, ensuring it sits firmly against the silicone pads.
3. Release the arms to grip the phone securely. Verify that the phone is held tightly and does not wobble.
4. Engage the security lock (if applicable) to prevent accidental release, especially on bumpy roads.

4. Упатства за работа

4.1 Moman RS-S Helmet Headset Operation

4.1.1 Вклучување/исклучување

• Вклучување: Press and hold the Power button for approximately 3 seconds until the LED indicator flashes blue.
• Исклучено: Press and hold the Power button for approximately 5 seconds until the LED indicator flashes red and then turns off.

4.1.2 Репродукција на музика

• Пушти/Пауза: Кратко притиснете го копчето за вклучување.
• Следна песна: Short press the FM button.
• Претходна песна: Short press the Microphone button.
• Јачина на звук нагоре/намалување: Use your connected smartphone's volume controls.

4.1.3 Управување со повици

• Одговори на повикот: Short press the Power button when an incoming call is detected. The headset also features a 10-second auto-answer function.
• Крај на повикот: Кратко притиснете го копчето за вклучување за време на повик.
• Одбијте го повикот: Press and hold the Power button for 2 seconds when an incoming call is detected.
• Повторно бирајте последен број: Притиснете двапати на копчето за вклучување кога не сте на повик.

4.1.4 FM радио

• Вклучи/исклучи FM радио: Press and hold the FM button for 2 seconds.
• Скенирајте канали: Short press the FM button to scan for the next available station.

4.1.5 Гласовен асистент со вештачка интелигенција

• Активирајте го гласовниот асистент: Short press the Microphone button to activate your smartphone's AI voice assistant (e.g., Siri, Google Assistant).

4.2 Moman PME1 Phone Holder Operation

4.2.1 Inserting and Removing Phone

• Вметнување: With one hand, push the phone into the holder. The telescopic arms will automatically adjust and grip the phone.
• Отстранување: Gently pull the phone upwards or outwards from the holder. The arms will release the phone.

4.2.2 Прилагодување Viewинголен агол

• The phone holder features a 360-degree rotatable joint. Loosen the adjustment knob slightly, position your phone to the desired angle (portrait or landscape), and then tighten the knob to secure it.

4.2.3 Using the Security Lock

• After securing your phone, engage the security lock mechanism, typically a switch or lever, to prevent accidental release of the phone, especially during vigorous riding.

5. Одржување

5.1 Чистење и нега

• Wipe the headset and phone holder with a soft, damp крпа. Не користете груби хемикалии или абразивни средства за чистење.
• Ensure the charging port of the headset is dry before charging.
• Keep the silicone pads of the phone holder free from dirt and debris to maintain optimal grip.

5.2 Складирање

• Чувајте го производот на ладно и суво место подалеку од директна сончева светлина и екстремни температури.
• If storing for an extended period, ensure the headset is partially charged (around 50%) to preserve battery life.

6 Смена на проблеми

6.1 Заеднички прашања и решенија

• Без моќност:
  - Ensure the headset is fully charged. Connect it to a power source and check the charging indicator.
  - Press and hold the Power button for a longer duration (5-7 seconds) to ensure it's not just in standby.
• Не може да се спари со телефон:
  - Ensure the headset is in pairing mode (LED flashing red and blue alternately).
  - Turn off and on your phone's Bluetooth.
  - Delete previous pairings on your phone and try pairing again.
  - Ensure the headset is within the Bluetooth range of your phone (typically 10 meters).
• Без звук или низок тон:
  - Check the volume levels on both the headset (via phone controls) and your smartphone.
  - Ensure the speakers are correctly positioned inside the helmet and connected to the main unit.
  - Re-pair the headset with your phone.
• Микрофонот не работи:
  - Ensure the microphone is properly connected and positioned close to your mouth.
  - Check your phone's privacy settings to ensure the app you are using has microphone access.
• FM Radio Not Receiving Stations:
  - Ensure you are in an area with good FM signal coverage.
  - Try rescanning for stations by pressing the FM button.
• Phone Not Secure in Holder:
  - Ensure the telescopic arms are fully gripping the phone.
  - Verify that the security lock is engaged.
  - Check if your phone (with case) fits within the specified dimensions (4.5-7 inches, up to 15mm thickness).
• Phone Holder Wobbles:
  - Ensure the handlebar clamp е безбедно затегната.
  - Check that the rotatable joint's knob is fully tightened after adjustment.

7. Спецификации

8. Информации за безбедност

Ве молиме почитувајте ги следниве безбедносни упатства за да спречите повреда или оштетување на производот:

• Always prioritize road safety. Do not operate the headset or phone holder in a way that distracts you from riding.
• Do not attempt to disassemble or modify the product. This may void the warranty and cause damage.
• Држете го производот подалеку од екстремни температури, директна сончева светлина и отворен пламен.
• Avoid exposing the headset to excessive moisture, despite its waterproof rating, to prolong its lifespan.
• Ensure all cables are securely routed within the helmet to prevent entanglement or discomfort.
• Verify the phone is securely mounted in the holder before each ride.
• Користете го само обезбедениот кабел за полнење.
• Do not listen to audio at excessively high volumes for prolonged periods, as this can cause hearing damage.
