1. Вовед
Thank you for choosing the Metzler 2 x 240L Anthracite Steel Bin Enclosure. This product is designed to provide an elegant and practical solution for storing your waste bins, enhancing the aesthetic of your outdoor space while protecting your bins from weather elements and unauthorized access. Crafted from powder-coated steel, this enclosure is built for durability and weather resistance.
This manual provides essential information for the safe assembly, operation, and maintenance of your bin enclosure. Please read it thoroughly before beginning assembly and retain it for future reference.
2. Инструкции за безбедност
- Секогаш носете соодветна лична заштитна опрема (ЛЗО) како што се ракавици и заштитни очила за време на склопувањето.
- Ensure all components are securely fastened according to the instructions. Loose parts can cause instability.
- Држете ги децата и домашните миленици подалеку од просторијата за собирање за да спречите несреќи.
- Не обидувајте се да го модифицирате производот на начин што не е опишан во ова упатство.
- Place the bin enclosure on a flat, stable, and level surface to ensure proper function and prevent tipping.
- Be aware of pinch points when opening and closing lids and doors.
3. Содржина на пакетот
Before starting assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact Metzler customer support.
- Steel frame components (side panels, back panel, base frame, top frame)
- 2 x Lid panels with integrated gas struts
- 2 x Front door panels with visible strips
- 2 x Door handles with locking mechanism
- Connecting hardware (screws, bolts, washers, nuts)
- Инструкции за склопување
4. Поставување и склопување
Assembly requires two people for optimal ease and safety. Ensure you have sufficient space to work.
- Подгответе ја страницата: Choose a flat, stable, and level outdoor surface for installation. Clear any debris from the area.
- Соберете ја основната рамка: Connect the base frame components using the provided hardware. Ensure all connections are finger-tight initially.
- Прикачете ги страничните и задните панели: Secure the side and back panels to the base frame. Pay attention to the orientation of the panels.
- Инсталирајте ја горната рамка: Place and secure the top frame onto the assembled panels.
- Монтирање врати: Attach the front door panels to the frame using the hinges. Install the door handles and locking mechanisms.
- Install Lids: Carefully attach the lid panels. Connect the gas struts to the lids and the main frame as per the detailed diagram in the included assembly guide. Ensure the gas struts are correctly oriented for smooth operation.
- Конечно затегнување: Once all components are in place, systematically tighten all screws and bolts using appropriate tools. Do not overtighten.
- Modular Extension (Optional): If combining multiple Metzler bin enclosures, use the pre-drilled holes on the side panels and the included connecting hardware to securely link the units.
Image 1: The Metzler 2 x 240L Anthracite Steel Bin Enclosure with both front doors open, revealing two standard waste bins stored inside. The design features horizontal slats on the doors.
Image 2: The Metzler 2 x 240L Anthracite Steel Bin Enclosure with both top lids open. The internal mechanism shows how the bin lids are connected to the enclosure lids for simultaneous opening.
5. Упатства за работа
The Metzler bin enclosure is designed for convenient and secure waste disposal.
- Placing Bins: Open the front doors using the handles. Roll your 120L or 240L waste bins into the designated compartments. Ensure the bins are positioned correctly so their lids align with the enclosure's internal lifting mechanism.
- Automatic Lid Function: The enclosure features an automatic lid system with gas struts. When you lift the enclosure's top lid, the gas struts assist in opening it smoothly, and the internal mechanism simultaneously lifts the lid of the waste bin inside, allowing for easy waste disposal.
- Затворање на капакот: Gently push down the enclosure's top lid. The gas struts will ensure a controlled and quiet closing.
- Безбедност: The front doors are equipped with locking mechanisms to secure your bins against theft and vandalism. Use the provided key to lock and unlock the doors.
Слика 3: А view of the Metzler bin enclosure with one top lid fully open and one front door open, demonstrating access to a single bin compartment.
6. Одржување
Regular maintenance will ensure the longevity and appearance of your Metzler bin enclosure.
- Чистење: The powder-coated steel surface is easy to clean. Use a soft cloth, warm water, and a mild, non-abrasive detergent. Avoid harsh chemicals or abrasive cleaning tools that could damage the finish.
- Инспекција: Периодично проверувајте ги сите завртки, болтови и врски за да се осигурате дека се цврсто затегнати. Затегнете ги повторно доколку е потребно.
- Гасни потпори: Ensure the gas struts operate smoothly. If you notice any resistance or unusual noise, inspect them for damage.
- Подмачкување: Occasionally apply a silicone-based lubricant to hinges and locking mechanisms to ensure smooth operation.
- Заштита од времето: While weather-resistant, extreme weather conditions (e.g., heavy snow loads) may require additional care or temporary covering.
7 Смена на проблеми
- Lid not opening/closing smoothly:
- Check if gas struts are correctly installed and undamaged.
- Ensure no obstructions are preventing the lid from moving freely.
- Verify that the bin inside is positioned correctly and not interfering with the lid mechanism.
- Doors are stiff or difficult to lock:
- Lubricate hinges and locking mechanisms.
- Check for any misalignment of the doors or frame. Adjust if possible.
- Enclosure appears unstable:
- Ensure the enclosure is placed on a perfectly level surface.
- Проверете ги и затегнете ги сите завртки и навртки за склопување.
8. Спецификации
| Карактеристика | Детал |
|---|---|
| Димензии на производот (Д x Ш x В) | 80 x 116.3 x 116.3 cm |
| Максимална носивост | Suitable for 2 x 240 Litre bins |
| Материјал | Легуриран челик (обложен со прашкаста боја) |
| Боја | Anthracite - Visible Strips |
| Ниво на отпорност на вода | Водоотпорен |
| Потребно е собрание | Да |
| Производител | Мецлер ГмбХ |
| ASIN | B0D6NFJYPX |
| EAN | 04067784008321 |

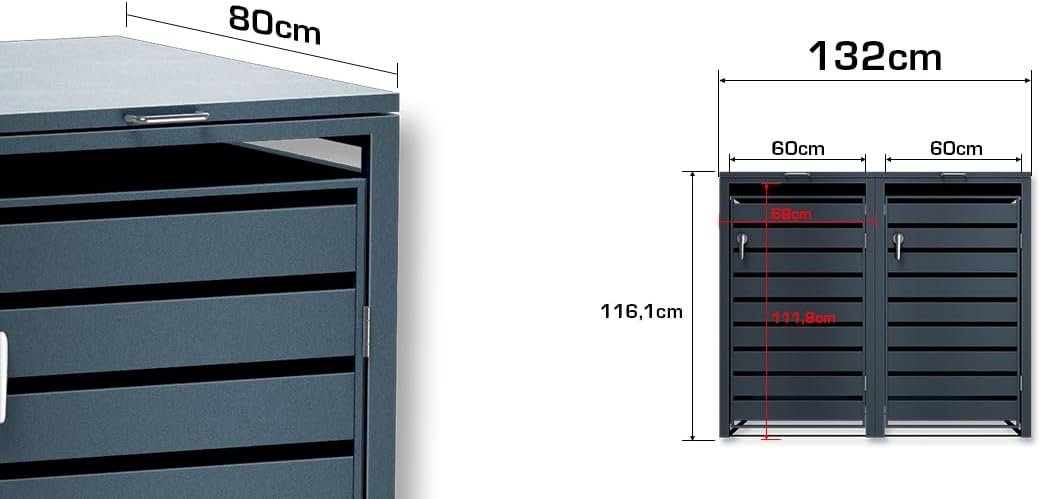

Image 4: Technical diagram illustrating the key dimensions of the bin enclosure: 80 cm depth, 132 cm total width (60 cm per compartment), and 116.1 cm height.
Image 5: An illustration depicting various bin sizes (60L, 120L, 240L) to visually confirm the enclosure's compatibility with 120L and 240L standard waste bins.
9. Информации за гаранцијата
Metzler products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Metzler webстраница. Зачувајте го доказот за купување за какви било гаранциски побарувања.
10. Поддршка
If you encounter any issues or have questions regarding your Metzler bin enclosure that are not covered in this manual, please contact Metzler customer support. You can find contact information on the official Metzler webна лице место или преку вашиот продавач.
Webсајт: www.metzler-gmbh.de
