Вовед
Thank you for choosing the Evolution Power Tools 119-0050 Folding Table Saw Stand. This stand is designed to provide a stable, portable, and efficient workstation for your Evolution R255TBL and R255TBL+ table saws. Please read this manual carefully before assembly and operation to ensure safe and correct use of the product.
Информации за безбедност
Always observe basic safety precautions when using this product to reduce the risk of injury. Keep this manual for future reference.
- Уверете се дека сите компоненти се добро прицврстени пред употреба.
- Не го надминувајте максималниот капацитет на тежина на држачот.
- Operate on a stable, level surface.
- Држете ги децата и случајните минувачи подалеку од работната површина.
- Always wear appropriate personal protective equipment (PPE) when operating power tools mounted on the stand.
Содржина на пакетот
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact Evolution Power Tools customer support.
- Folding Table Saw Stand Frame
- All-terrain Wheels (2)
- Прилагодливи стапала (2)
- Хардвер за склопување (завртки, подлошки, навртки)
- Упатство за употреба
Поставување и склопување
Follow these steps for quick and easy assembly of your table saw stand.
- Отпакувајте ги компонентите: Внимателно извадете ги сите делови од пакувањето и поставете ги на чиста, рамна површина.
- Соберете ја рамката: Connect the main frame sections according to the diagrams provided. Ensure all pivot points are correctly aligned.
- Прикачете тркала: Securely attach the two all-terrain wheels to the designated axle points on the stand frame using the provided hardware.
- Инсталирајте прилагодливи ногарки: Screw the two adjustable feet into the remaining leg supports. These feet allow for leveling on uneven surfaces.
- Mount Table Saw: Position your Evolution R255TBL or R255TBL+ table saw onto the stand's mounting brackets. Use the supplied saw mounting hardware (O x4) to firmly bolt the saw to the stand. This process typically takes less than one minute.
Figure 1: Quick and easy assembly showing saw mounting hardware.
Figure 2: The Evolution table saw stand with a compatible table saw mounted.
Упатства за работа
This stand enhances the functionality and portability of your Evolution table saw.
Користење на штандот
- Стабилност: Once the saw is mounted, ensure the stand is placed on a firm, level surface. Use the adjustable feet to compensate for any unevenness, ensuring maximum stability during operation.
- Преносливост: The stand features large all-terrain wheels for easy movement. To move the stand, tilt it onto its wheels and roll it to your desired location. The design allows it to fit through standard 81.3 cm (32 inch) doorways.
- Преклопување за складирање: The stand is designed to fold compactly, even with the saw attached. To fold, release the locking mechanisms (refer to specific saw manual for detachment if necessary, though the stand is designed to fold with it). Once folded, the stand rests on its own feet for convenient storage.

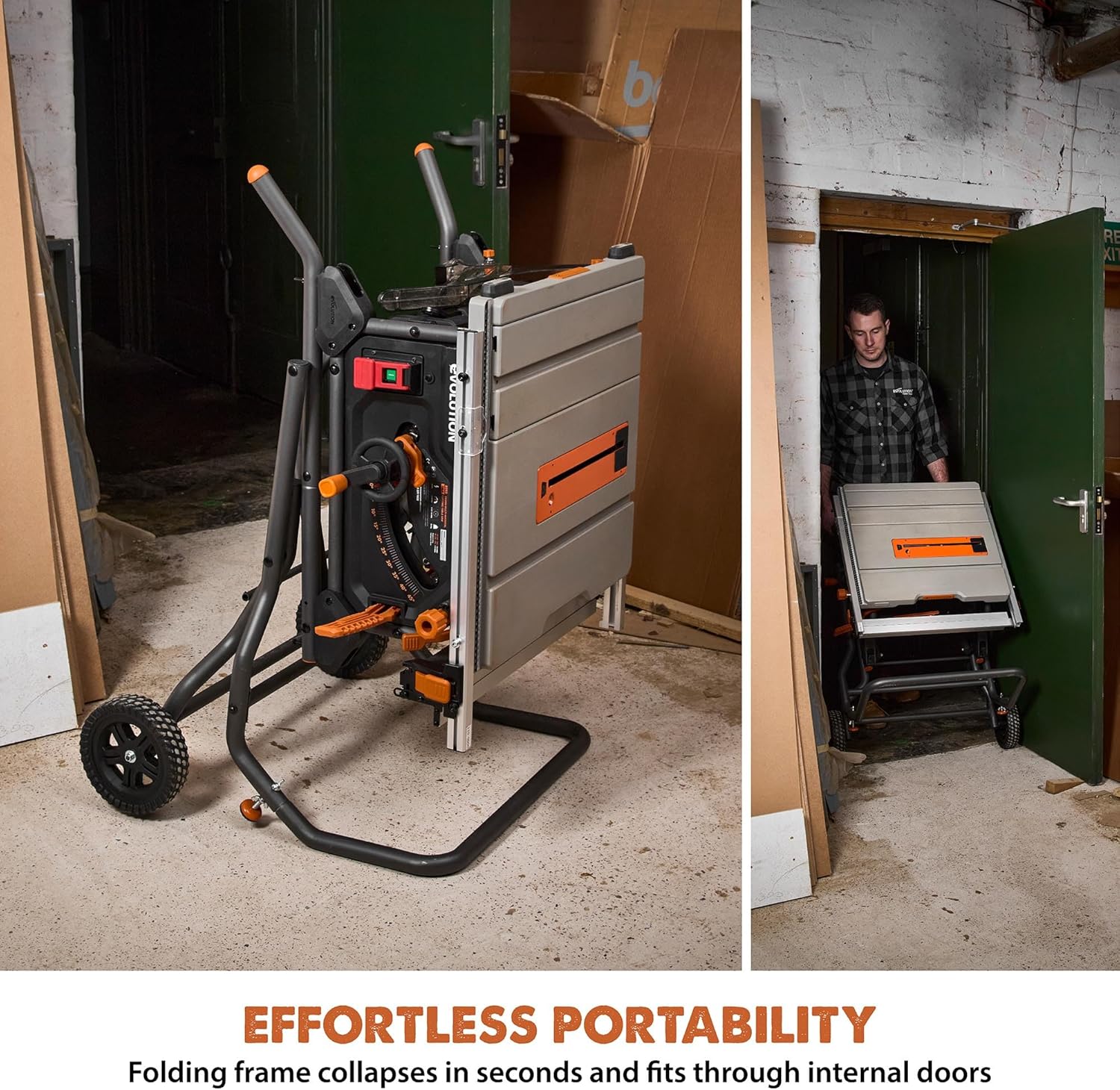

Figure 3: Effortless portability of the folded stand.
Figure 4: Mobility across any jobsite with large diameter all-terrain wheels.
Одржување
Regular maintenance ensures the longevity and safe operation of your stand.
- Чистење: Избришете го држачот со рекламаamp cloth to remove dust and debris. The all-terrain wheels are easy to clean.
- Инспекција: Periodically check all bolts, nuts, and fasteners to ensure they are tight. Retighten as necessary.
- Подмачкување: Apply a light lubricant to moving parts and pivot points as needed to ensure smooth folding and unfolding.
- Складирање: Store the stand in a dry, protected area when not in use.
Решавање проблеми
| Проблем | Можна причина | Решение |
|---|---|---|
| Столбот е нестабилен. | Uneven surface; loose fasteners; adjustable feet not properly set. | Move to a level surface. Check and tighten all fasteners. Adjust the feet to stabilize the stand. |
| Тешкотии при преклопување/одвиткување. | Debris in pivot points; lack of lubrication; bent component. | Clean pivot points. Apply lubricant. Inspect for damage; contact support if bent. |
| Saw does not fit securely. | Incorrect saw model; mounting hardware not tightened. | Ensure saw is Evolution R255TBL or R255TBL+. Tighten all mounting bolts securely. |
Спецификации
| Карактеристика | Детал |
|---|---|
| Број на модел | 119-0050 |
| Компатибилност | Evolution R255TBL, R255TBL+ Table Saws |
| Материјал | Легуриран челик |
| Димензии на производот (ДxШxВ) | 73 x 60 x 88 cm (28.7 x 23.6 x 34.6 инчи) |
| Тежина на ставката | 8 кг (17.6 фунти) |
| Посебни карактеристики | Compact, Quick Assembly, Foldable, All-terrain Wheels, Adjustable Feet |
| Потребно е собрание | Да |
Гаранција
This Evolution Power Tools 119-0050 Folding Table Saw Stand comes with a 2-годишна ограничена гаранција from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For full terms and conditions, please refer to the warranty card included with your product or visit the official Evolution Power Tools webсајт.
Поддршка за корисници
If you have any questions, require assistance with assembly, or need to troubleshoot an issue, please contact Evolution Power Tools customer support.
- Webсајт: www.evolutionpowertools.com
- Е-пошта: Се однесуваат на webстраница за контакт формулар или е-адреса.
- Телефон: Се однесуваат на webсајт за регионални контакт броеви.
Please have your model number (119-0050) and purchase date available when contacting support.
