JUBEST 32"x86" Concealed Sliding Barn Door

1. Производот завршиview

The JUBEST Concealed Sliding Barn Door offers a modern and space-saving solution for interior doorways. Designed for smooth operation and durability, this door features a hidden track system and soft-close mechanisms for quiet and effortless use. Its waterproof and scratch-resistant PVC surface ensures longevity and easy maintenance.

Figure 1: Product features including soft close, waterproof, and scratch-resistant surface.

2. Информации за безбедност

• Секогаш носете соодветна заштитна опрема, вклучувајќи ракавици и заштита за очи, за време на инсталацијата.
• Ensure the wall structure is capable of supporting the weight of the door and hardware. Consult a professional if unsure.
• Use caution when handling heavy door panels. Two people are recommended for lifting and positioning the door.
• Држете ги децата и домашните миленици подалеку од местото на инсталација.
• Do not install on carpeted floors as this may affect door operation and stability.

3. Содржина на пакетот

Проверете дали сите компоненти се присутни пред да започнете со инсталацијата:

• 1 Pre-grooved barn door panel
• 1 Top track
• 1 Top roller
• 2 Soft close mechanisms
• 2 Крајни капачиња
• 2 Bottom rollers
• 1 Bottom track
• 1 Водич за подот
• Necessary screws and wrench
• Detailed instructions (this manual)

Figure 2: Included components and hardware kit.

4. Спецификации

Figure 3: Detailed size chart for door and opening dimensions.

5. Пред-инсталација

5.1 Door Opening Preparation

Ensure your door opening is within the recommended dimensions of 24"-28" wide and 84" high. The door panel itself is 32" wide and 86" high. Refer to the provided diagrams for precise measurements and clearances for different installation methods.

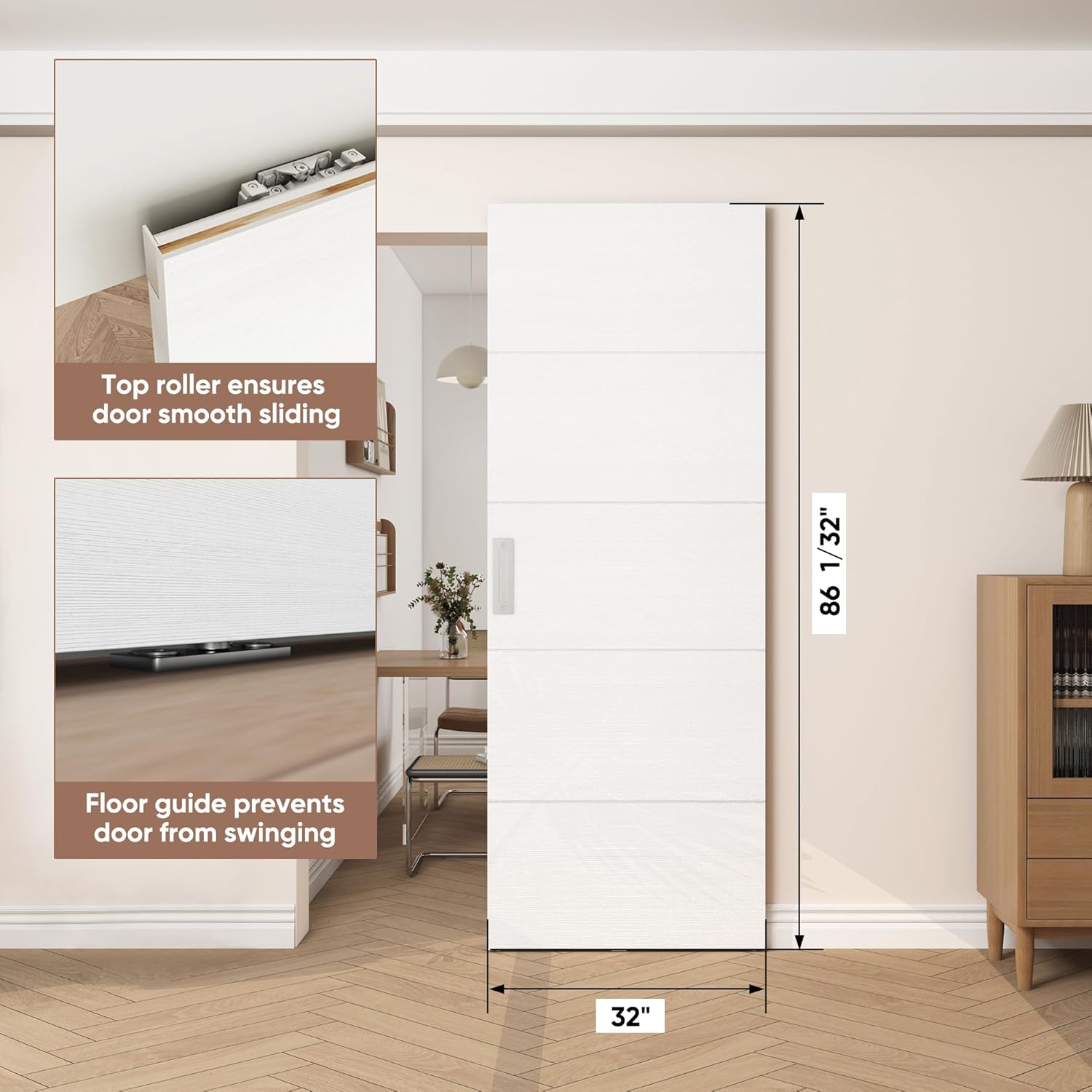

Figure 4: Door dimensions and key hardware components.

5.2 Потребни алатки (не се вклучени)

• Мерната лента
• Молив
• Drill with appropriate bits (e.g., 5/16" or 8mm)
• Saw (for cutting tracks to length)
• Шрафцигер
• Ниво

6. Чекори за инсталација

Внимателно следете ги овие чекори за правилна инсталација. За визуелни упатства, погледнете го официјалното видео за инсталација подолу.

6.1 Prepare Door Panel Grooves

The door panel comes pre-grooved. Ensure the L-groove at the top and the U-channel at the bottom are clear and ready for hardware insertion.

Figure 5: Detail of the L-groove at the top of the door panel.

Figure 6: Detail of the bottom roller and U-channel at the bottom of the door panel.

6.2 Cut Tracks to Length

Cut the top and bottom tracks to the specified lengths based on your door width. The top track length is typically (Door Width - 20mm) and the bottom track length is (Door Width - 130mm).

6.3 Install Soft Close Mechanisms and Top Track

Loosen the screws on the soft close mechanisms and position them at both ends of the top track. Fasten the top track securely onto the door's L-groove. Ensure the soft close mechanisms are flush with the track ends and tighten their screws.

6.4 Install Bottom Rollers and Bottom Track

Remove the wheel from the bottom roller body. Fasten the bottom roller body into the door's U-channel first, then reinsert the wheel part. Insert the cut bottom track into the U-channel.

6.5 Mount Hanger onto Wall

Remove the anti-jump block from the hanger. Mark and drill holes on the wall according to the hanger's dimensions and your desired door height. Securely mount the hanger onto the wall using the provided screws and anchors.

6.6 Mount Floor Guide

Position the floor guide on the floor, aligning it with the door's bottom track. Mark and drill holes, then secure the floor guide to the floor.

6.7 Hang Door Panel and Adjust

Carefully lift the door panel and insert the floor guide into the bottom track. Then, hang the door panel onto the hanger in the middle of the top track. Adjust the height of the top roller wheel by rotating the screw until the door fits the rail completely. Tighten the anti-jump block screws.

6.8 Конечни прилагодувања

Move the door left and right to ensure the actuator engages correctly with the soft close fins. If the door panel is not parallel with the wall, loosen both adjustment screws on the top roller, hold the door parallel by hand, and then tighten the screws.

6.9 Optional Handle Installation

A handle is included in the package. You may choose to install it for easier opening and closing, or omit it to maintain the hidden design of the door.

Figure 7: JUBEST Concealed Sliding Barn Door in an interior setting.

6.10 Видео водич за инсталација

7. Упатства за работа

To open or close the door, gently push or pull the door panel. The integrated soft-close mechanisms will engage near the ends of the track, slowing the door's movement for a quiet and smooth stop. Avoid forcing the door against the soft-close mechanism.

8. Одржување

• Чистење: The PVC surface is waterproof and scratch-resistant. Clean the door panel with a soft, damp крпа и благ детергент. Избегнувајте абразивни средства за чистење.
• Проверка на хардверот: Periodically inspect all screws and connections for tightness. Tighten any loose fasteners to ensure continued smooth operation and safety.
• Одржување на патеката: Keep the top and bottom tracks free from dust and debris to prevent obstruction of the rollers.

9 Смена на проблеми

• Вратата не се лизга непречено: Check the tracks for debris. Ensure all rollers are clean and properly aligned. Verify that the door is parallel to the wall and the adjustment screws are tightened correctly.
• Soft close not engaging: Ensure the soft close mechanisms are correctly positioned at the ends of the track and their screws are tight. Check that the actuator on the door panel is properly aligned to engage with the soft close fins.
• Door feels unstable or pops out of track: This can occur if the hardware is not fully secured or if the door is not parallel to the wall. Re-check all mounting screws for the hanger and floor guide. Ensure the anti-jump blocks are tightened. If the issue persists, re-evaluate the wall mounting for proper support.

10. Гаранција и поддршка

JUBEST products are manufactured with quality and durability in mind. This product is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact customer service.

For any issues, questions, or support needs regarding this product, please contact our professional customer service team. We are dedicated to ensuring customer satisfaction and will assist you in resolving any problems in a timely manner.

Contact information can typically be found on the product packaging or the official JUBEST webсајт.
