1. Производот завршиview
The llano LP-E8 18W Fast Dual Battery Charger is designed for efficient and safe charging of LP-E8 batteries used in various Canon EOS Rebel DSLR cameras. This charger features dual charging slots, fast charging capabilities, a digital display for real-time battery status, and multiple safety protections.
Слика 1.1: llano LP-E8 18W Fast Dual Battery Charger. This image shows the compact, black charger with its digital display and fingerprint-like power button, highlighting its modern design.
Клучни карактеристики:
- Широка компатибилност: Supports Canon EOS Rebel T2i, T3i, T4i, T5i, 550D, 600D, 650D, 700D, Kiss X4, X5, X6i, X7i cameras, including original and third-party LP-E8 batteries.
- Брзо полнење: 18W fast charge capability allows full charging of two LP-E8 batteries in approximately 1.4 hours.
- Напредни безбедносни карактеристики: Integrated protection against overheating, overcharging, overvoltage, overcurrent, and short circuits ensures safe operation.
- Дигитален екран: Provides real-time updates on charging progress and individual battery levels.
- Флексибилен и пренослив: USB-C port supports various power sources (wall adapters, power banks, laptops, car chargers) for charging on the go. Compact design for easy transport.
- Интегрирано складирање: Features a magnetic cover, internal compartments for two batteries, and slots for two SD cards/Micro SD card adapters.

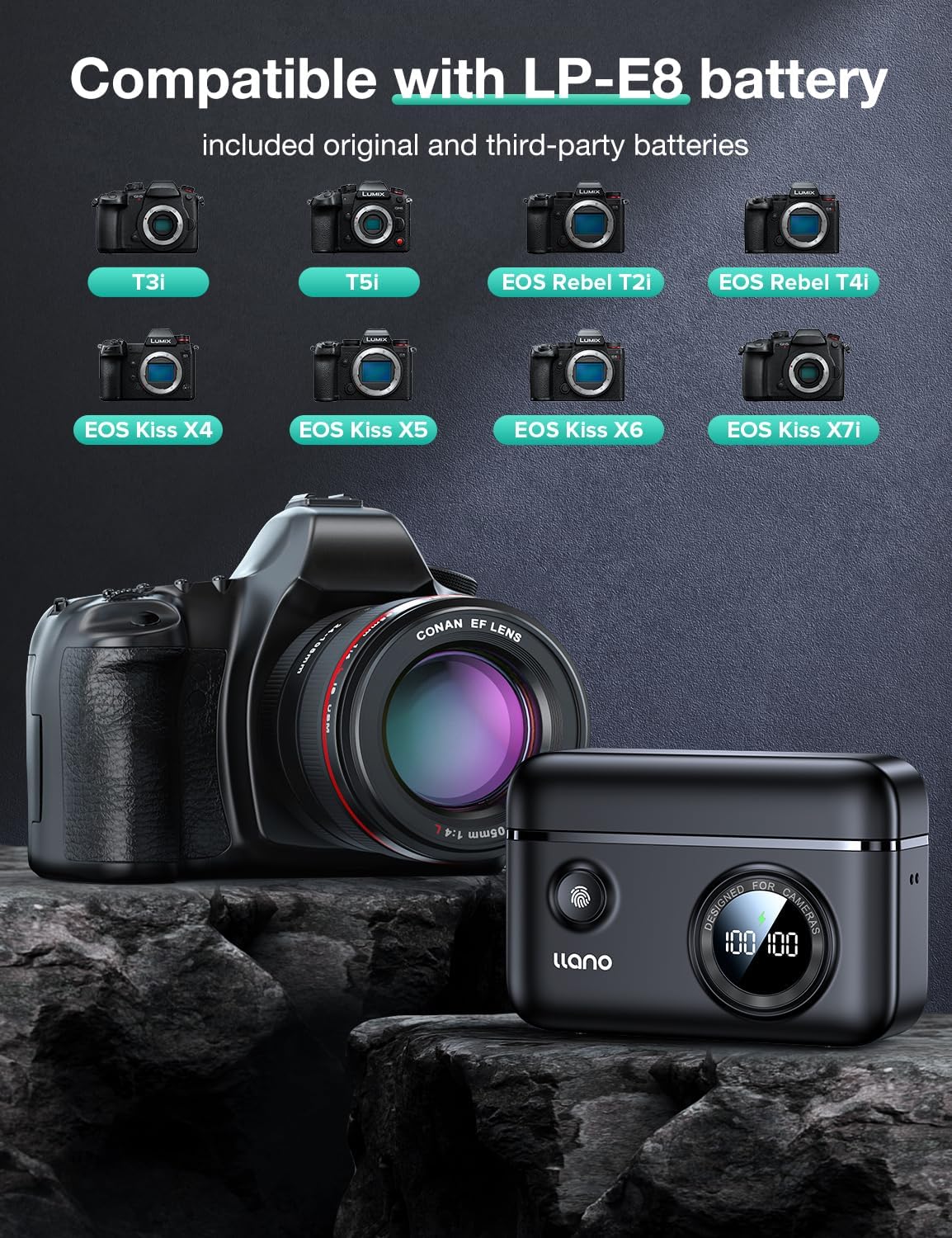

Слика 1.2: Compatibility with LP-E8 batteries. This image displays the charger alongside various Canon EOS Rebel camera models (T3i, T5i, T2i, T4i, Kiss X4, X5, X6, X7i) that use the LP-E8 battery type.
2. Водич за поставување
Follow these steps to set up your llano LP-E8 Fast Dual Battery Charger:
- Отпакувајте го полначот: Carefully remove the charger, USB-C cable, and any included accessories from the packaging.
- Поврзете го изворот на енергија: Insert one end of the provided USB-C cable into the USB-C port on the charger. Connect the other end to a compatible 18W PD (Power Delivery) wall adapter, power bank, laptop, or car charger. For optimal fast charging, an 18W or higher PD charger is recommended.
- Првична проверка на напојувањето: Once connected, the digital display on the charger should illuminate, indicating it is ready for use.
Слика 2.1: Wide Charging Options. This image illustrates the versatility of the charger, showing it connected to a wall charger, a car charger, and a power bank, demonstrating its adaptability to various power sources.
3. Упатства за работа
3.1. Вметнување батерии
- Open the magnetic cover of the charger.
- Align the LP-E8 batteries with the charging slots (CH1 and CH2) according to their orientation.
- Gently insert the batteries into the slots until they are securely seated.
- Close the magnetic cover to protect the batteries during charging.
3.2. Процес на полнење
Once batteries are inserted and the charger is connected to a power source, the charging process begins automatically.
- The digital display will show the real-time charging percentage за секоја батерија.
- A lightning bolt icon will indicate the charging status. If the icon is solid, it signifies fast charging mode. If it is blinking, it indicates normal charging mode.
- Charging two LP-E8 batteries fully takes approximately 1.4 hours with an 18W PD power source.
- When a battery reaches 100% charge, the display for that slot will show "100" and the charging process for that battery will cease to prevent overcharging.
Слика 3.1: Fast Charging Capability. This image highlights the 18W fast charging feature, showing two batteries being charged and indicating a full charge time of 1.4 hours compared to 3.0 hours for other chargers.
3.3. Digital Display Interpretation
The charger's digital screen provides clear information:
- Екран за нивото на батеријата: Shows the current charge percentage for each battery (e.g., "100" for fully charged).
- Без батерија: If a slot is empty, the display will show "--" or similar.
- Rapid Charging Mode: Indicated by a solid lightning bolt icon.
Pressing the button on the charger provides a quick view of the remaining battery power if the display is off.
Слика 3.2: Smart Display On Demand. This image shows a user interacting with the charger's digital display, illustrating how it shows battery level, indicates no battery, and confirms rapid charging mode.
4. Одржување и грижа
- Чистење: Use a soft, dry cloth to clean the charger's exterior. Avoid using liquid cleaners or solvents. Ensure no dust or debris accumulates in the charging slots or USB-C port.
- Складирање: When not in use, store the charger in a cool, dry place, away from direct sunlight and extreme temperatures. The magnetic cover and internal foam pad help protect batteries and SD cards stored within the charger.
- Ракување: Ракувајте со полначот внимателно. Избегнувајте да го испуштате или да го изложувате на силни удари.
- Складирање на SD-картичка: The charger includes dedicated slots for two SD cards/Micro SD card adapters. Ensure cards are inserted correctly to prevent damage.
Слика 4.1: Embedded Thoughtful Design Details. This image details the charger's features, including the magnetic cover, storage box for batteries and SD cards, silicone foot pads for stability, and the included drawstring bag for protection.
5 Смена на проблеми
| Проблем | Можна причина | Решение |
|---|---|---|
| Полначот не се вклучува. | Нема приклучок за напојување или кабелот/адаптерот е неисправен. | Ensure the USB-C cable is securely connected to both the charger and a working power source. Try a different USB-C cable or power adapter. |
| Батериите не се полнат. | Batteries incorrectly inserted, dirty contacts, or incompatible batteries. | Re-insert batteries, ensuring correct orientation. Clean battery and charger contacts with a dry cloth. Verify batteries are genuine LP-E8 type. |
| Бавна брзина на полнење. | Power source not 18W PD compatible. | Use an 18W or higher Power Delivery (PD) compatible wall adapter or power bank for optimal fast charging. |
| Digital display shows inconsistent percentagес. | Minor calibration variations or immediate voltage drop after disconnection. | This can be a minor display characteristic. The charger's safety features prevent overcharging. For critical applications, allow batteries to charge fully until the display shows 100% and remains stable. |
| Полначот се чувствува топол за време на работата. | Normal during fast charging. | A slight warmth is normal during fast charging. If the charger becomes excessively hot or emits smoke/odor, disconnect it immediately and cease use. The charger has overheating protection. |
6. Спецификации на производот
- Број на модел: LJN-CS001
- Влез: USB-C, 18W Power Delivery (PD) recommended
- Излез: Dual LP-E8 battery charging slots
- Време на полнење: Approximately 1.4 hours for two LP-E8 batteries (with 18W PD input)
- Димензии (Д x Ш x В): 4.3 x 1.7 x 3.3 инчи (10.9 x 4.3 x 8.4 см)
- Тежина на ставката: 12 унци (340 грама)
- Компатибилност: Canon EOS Rebel T2i, T3i, T4i, T5i, 550D, 600D, 650D, 700D, Kiss X4, X5, X6i, X7i
- Безбедносни карактеристики: Overheating, Overcharging, Overvoltage, Overcurrent, Short Circuit Protection
- UPC: 768771860734
- Производител: SHENZHEN GREEN GIANT ENERGY TECHNOLOGY DEVELOPMENT CO.,LTD
7. Гаранција и корисничка поддршка
llano products are manufactured with quality and reliability in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official llano webстраница. Зачувајте го доказот за купување за гаранциски побарувања.
If you encounter any issues or have questions regarding your llano LP-E8 Fast Dual Battery Charger, please contact llano customer support through the retailer where you purchased the product or via the contact information provided on the official llano webсајт (llano Store on Amazon).
When contacting support, please provide your product model number (LJN-CS001) and a detailed description of the issue.
