1. Вовед

The GODIYMODULES BP1048 is a versatile Bluetooth 5.0 audio pre-amplifier and DSP tuning module designed for advanced audio applications. It integrates an EQ40 electronic frequency division module, TWS audio stereo capabilities, and multiple input/output options, making it suitable for custom audio projects requiring precise sound control and wireless connectivity.

2. Клучни карактеристики

• EQ40 Bands: Offers 40 adjustable frequency bands for comprehensive sound customization.
• Customizable Crossover: Allows for adjustable bass, mid, and treble crossover points.
• Аудио подобрувања: Includes Bass subwoofer, Vocal optimization, Dynamic range compression, Anti-breakdown, Low-cut, Low-pass, High-pass, High-cut, 3D sound effect, music delay, Sound field optimization, and Noise elimination.
• Повеќекратни влезови: Supports U disk lossless playback, Mobile phone OTG music input, Bluetooth dual mode 5.0, AUX wired input, and Computer USB sound card input.
• Разновидни излези: Provides low-pass 2.1 output, 2.0 output, mono output, and electronic 2 crossover output.
• Функционалност на TWS: Two modules can be paired for wireless stereo sound.
• Driver-Free Tuning: Online tuning with software instructions, no driver installation required for data saving.
• Компактен дизајн: Small form factor (3.8 x 4.5 cm) for easy integration.

3. Спецификации

4. Производот завршиview и интерфејси

The BP1048 module features various connectors and components for power, audio input/output, and external controls. Familiarize yourself with the layout for proper setup and operation.

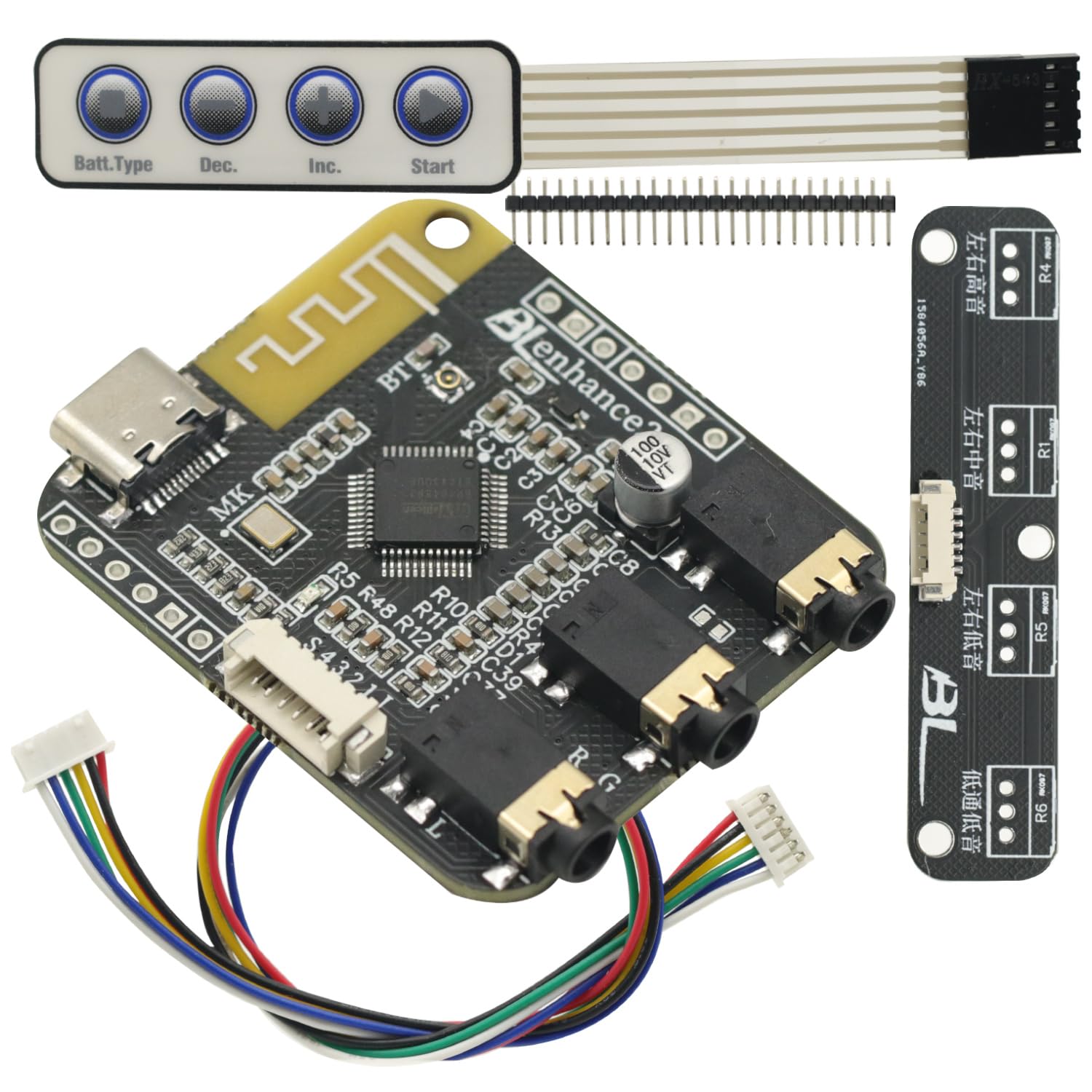

Слика 4.1: BP1048 module with included button panel and pin headers. This image displays the main board, a separate wired button control panel, and various pin headers for customization and connection.

Слика 4.2: Врвот view of the BP1048 module, highlighting the Bluetooth antenna, USB-C port, audio output jacks, and various surface-mount components including the DSP chip.

Слика 4.3: Дното view of the BP1048 module, showing clearly labeled connection points for stereo output, bass output, AUX input, USB data, power (V+, V-, 5V), mute, LED, and external key controls.

4.1 Interface Descriptions (Refer to Figure 4.3)

• Stereo Output (立体声输出): Left and Right channel audio output.
• Bass Output (低音输出): Dedicated low-frequency output for subwoofers.
• AUX Audio Input (AUX音频输入): Standard auxiliary audio input.
• USB-C порта: Used for power supply (5V), computer USB sound card input, and data connection for tuning.
• Power Input (电源5V): V+ and V- terminals for external 5V power supply.
• МУТИРА: Mute control pin.
• LED: Status indicator LED connection.
• External Key Controls (外接按键): Pins for connecting external buttons for volume up/down, previous/next track, and pause/play.
• Potentiometer Extension (电位器拓展): Pins for connecting external potentiometers for bass, mid, and treble adjustments.

5. Упатства за поставување

Follow these steps to properly set up your BP1048 module.

5.1 Поврзување за напојување

1. Connect a 5V DC power source to the USB-C port on the module. Alternatively, use the V+ and V- terminals on the bottom of the board for a single battery power supply, ensuring correct polarity.
2. Осигурајте се дека напојувањето е стабилно и во рамките на наведениот волуменtage опсег за да се спречи оштетување.

5.2 Аудио влезна врска

• Bluetooth: Power on the module. It will automatically enter pairing mode. Пребарај за "BP1048" (or similar) on your device and connect.
• Влез AUX: Connect an audio source (e.g., smartphone, MP3 player) to the AUX audio input jack using a 3.5mm audio cable.
• У диск: Insert a USB flash drive containing lossless audio files into the designated USB port (if an external USB interface is connected).
• Computer USB Sound Card: Connect the module to your computer via the USB-C port. The module will be recognized as an audio output device.
• OTG за мобилен телефон: Connect your mobile phone via an OTG cable to the USB-C port for direct audio input.

5.3 Аудио излезна врска

• Connect your speakers or amplifier to the appropriate audio output jacks (Stereo Output, Bass Output) on the module.
• For 2.1 systems, use both Stereo and Bass outputs. For 2.0 or mono, use the corresponding outputs.
• If using the electronic 2 crossover output, ensure your amplifier or speakers are compatible and configured correctly.

5.4 External Controls Connection (Optional)

• Connect the provided button panel or custom buttons to the 'External Key Controls' pins for volume, track control, and pause/play functionality.
• Connect external potentiometers to the 'Potentiometer Extension' pins for physical bass, mid, and treble adjustments if desired.

6. Операција

Once the module is set up, you can begin operating it using its various functions.

6.1 Избор на влезен извор

The module automatically detects and prioritizes input sources. Bluetooth is typically prioritized when connected. To switch inputs, disconnect the current source or use the tuning software.

6.2 Bluetooth Pairing and TWS Mode

1. Standard Bluetooth: Power on the module. It will enter pairing mode. On your device, search for and select the module's Bluetooth name (e.g., "BP1048").
2. TWS Wireless Stereo: To create a wireless stereo pair, power on two BP1048 modules. Follow the specific one-key pairing instructions provided with the tuning software or module documentation to link them. Once paired, one module acts as the master (left channel) and the other as the slave (right channel), providing a true wireless stereo experience.

6.3 EQ Tuning and DSP Functions

The BP1048 module's advanced DSP features are controlled via dedicated software. This software allows for real-time tuning and configuration.

• Connect the module to a computer via the USB-C port.
• Launch the provided tuning software (instructions for obtaining the software should be included with your purchase).
• Within the software, you can adjust the 40-band EQ, set crossover points, enable 3D sound effects, optimize vocals, apply dynamic range compression, and configure other audio processing features.
• The software allows for online listening while tuning, and settings can be saved directly to the module's chip without requiring driver installation.

7 Смена на проблеми

If you encounter issues with your BP1048 module, refer to the following common troubleshooting steps:

• Без моќност: Ensure the 5V power supply is correctly connected and providing sufficient current. Check USB-C cable or battery connections.
• Нема излез на звук: Verify that audio cables are securely connected to the correct output jacks. Check the volume levels on both the module (if external controls are used) and the connected amplifier/speakers. Ensure the correct input source is selected.
• Проблеми со поврзувањето со Bluetooth: Make sure the module is in pairing mode. Disconnect any previously paired devices. Try restarting both the module and your Bluetooth device. Ensure the devices are within range.
• Искривено аудио: Проверете за правилно засилувањеtaging in your audio chain. Reduce input volume if it's too high. Ensure speaker impedance matches ampбарања за лајфикатор.
• Tuning Software Not Connecting: Ensure the USB-C cable is properly connected to the computer and the module. Close and reopen the tuning software. Try a different USB port on your computer.

8. Одржување

To ensure the longevity and optimal performance of your BP1048 module, follow these maintenance guidelines:

• Чистење: Use a soft, dry cloth to gently wipe the module. Avoid using liquid cleaners or solvents, as they can damage components.
• Животна средина: Operate and store the module in a dry environment, away from extreme temperatures, humidity, and direct sunlight.
• Ракување: Handle the module with care to avoid physical damage to the circuit board or connectors. Avoid touching the electronic components directly.
• Исклучено: Disconnect power when the module is not in use for extended periods.

9. Гаранција и поддршка

For warranty information, technical support, or service inquiries, please contact GODIYMODULES directly through their official website or the retailer from whom you purchased the product. Please have your product model number (BP1048) and purchase details ready when contacting support.
