Упатство за користење на заштитен ѕид Fortinet FortiGate-30G

1. Вовед

The Fortinet FortiGate-30G is a compact, fanless network firewall designed for small businesses and distributed offices. It integrates firewalling, SD-WAN, and a wireless controller into a single appliance. Powered by Fortinet's secure processor, it delivers high performance and energy efficiency, offering automated and coordinated end-to-end protection across networks, users, and connected devices. The device features a user-friendly management console for centralized control and visibility, supporting zero-touch deployment for optimized onboarding.

2. Клучни карактеристики

• Интегрирана безбедност: Combines firewalling, SD-WAN, and a Wi-Fi controller in one appliance, reducing WLAN management complexity.
• Високи перформанси: Built on a patented secure processor, offering 800 Mbps IPS and 500 Mbps threat protection.
• User-Friendly Management: Centralized control and simplified policy enforcement via an intuitive management console.

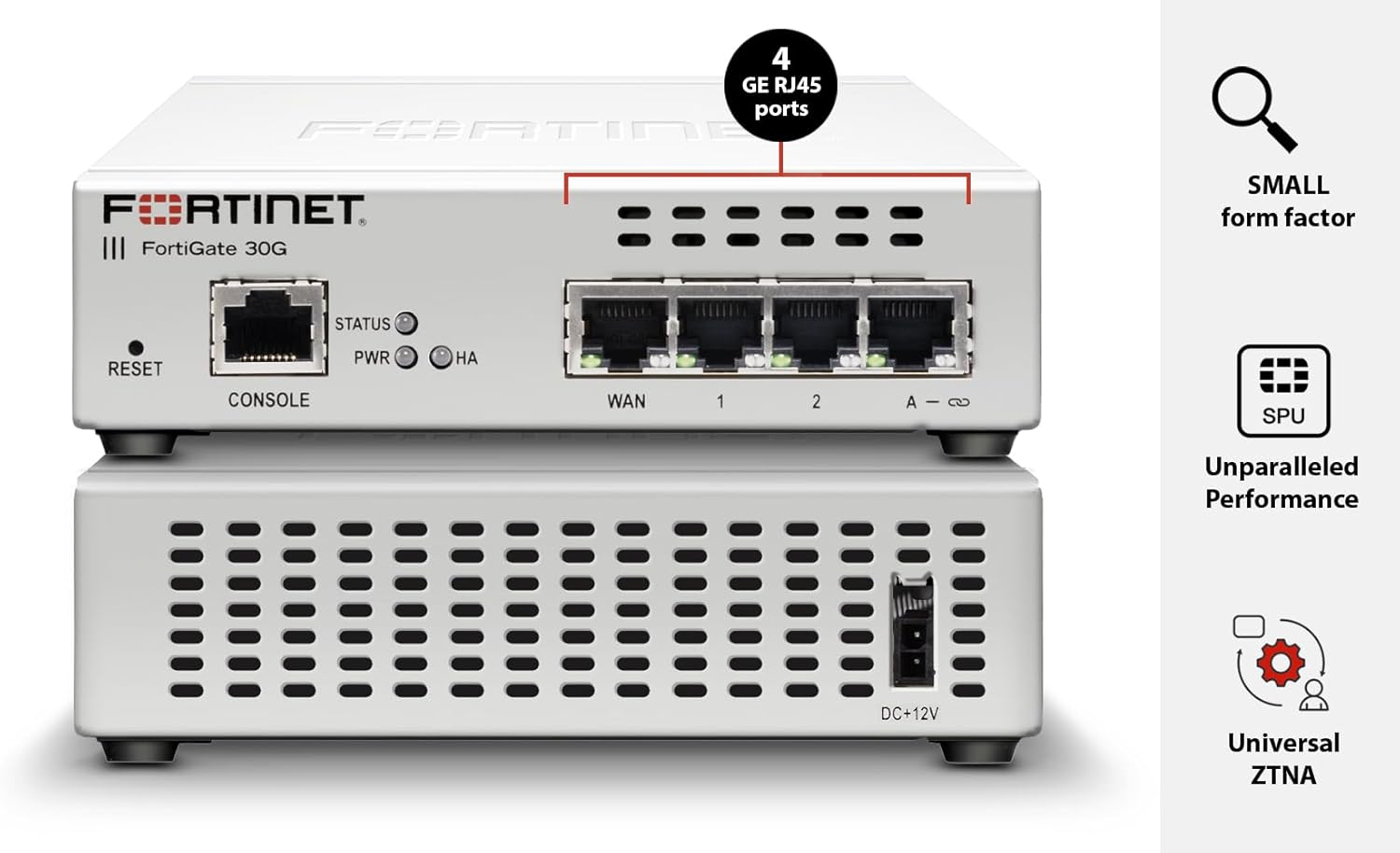

• Компактен дизајн: Fanless design with 4 GE RJ45 ports (1 WAN, 3 internal) for essential connectivity in small environments.
• Доверлива безбедност: Backed by FortiGuard Labs, recognized as a firewall leader for 13 consecutive years by Gartner.
• Zero-Touch Deployment: Simplifies and optimizes the device onboarding experience.

3. Водич за поставување

This section provides general guidelines for setting up your FortiGate-30G firewall. For detailed configuration, refer to the official Fortinet documentation.

3.1. Содржина на пакетот

Потврдете дека вашиот пакет ги содржи следниве ставки:

• FortiGate-30G Appliance
• Адаптер за напојување
• Етернет кабел
• CD (containing documentation and software)

3.2. Физичка инсталација

1. Изберете локација: Select a stable, dry, and well-ventilated location. Ensure adequate space for cable connections and airflow.
2. Поврзете напојување: Connect the power adapter to the DC+12V port on the back of the FortiGate-30G and then to a power outlet.
3. Поврзете мрежни кабли:
   • Connect your internet service provider's modem/router to the WAN порт користејќи етернет кабел.
   • Connect your internal network devices (e.g., switches, computers) to the internal ports (1, 2, 3).
4. Initial Access (Console): For initial configuration or troubleshooting, connect a console cable from your management computer to the КОНЗОЛА port on the FortiGate-30G.

3.3. Почетна конфигурација

Upon powering on, the device will perform a self-test. Once the system is stable, you can access the management console via a web browser or the console port for initial configuration. Follow the on-screen prompts or refer to the detailed FortiGate documentation for specific steps on setting up network interfaces, security policies, and user accounts.

4. Упатства за работа

The FortiGate-30G operates using FortiOS, a comprehensive security operating system. Key operational aspects include:

• Контролна табла: Главната контролна табла обезбедува надview of system status, network activity, and security events.
• Мрежна конфигурација: Configure WAN and internal interfaces, VLANs, and routing.
• Безбедносни политики: Define firewall rules, intrusion prevention (IPS), web filtering, and application control to protect your network.
• SD-WAN: Utilize SD-WAN features for optimized multi-WAN connectivity and application performance.
• Безжичен контролер: Manage connected FortiAP wireless access points for integrated WLAN security.
• VPN: Set up Virtual Private Networks (VPNs) for secure remote access or site-to-site connectivity.
• Logging & Reporting: Monitor logs and generate reports to track network activity and security incidents.

Regularly consult the FortiGate documentation for detailed instructions on specific features and configurations.

5. Одржување

To ensure optimal performance and security of your FortiGate-30G, regular maintenance is recommended:

• Ажурирања на фирмверот: Keep the FortiOS firmware updated to the latest stable version to benefit from new features, performance improvements, and security patches.
• Безбедносни ажурирања: Ensure FortiGuard services (e.g., antivirus, IPS, web filtering) are active and updated to protect against the latest threats.
• Резервни копии за конфигурација: Regularly back up your device configuration to a secure location. This allows for quick recovery in case of unexpected issues.
• Физичка инспекција: Periodically check the device for dust accumulation, especially in ventilation areas. Ensure all cables are securely connected.
• Лог Реview: Редовно повторноview system logs and security reports for any unusual activity or potential issues.

6 Смена на проблеми

If you encounter issues with your FortiGate-30G, consider the following basic troubleshooting steps:

• Проверка на напојување: Ensure the device is powered on and the PWR LED is illuminated.
• Кабелски врски: Verify all Ethernet cables are properly connected to their respective ports (WAN, internal, console).
• LED индикатори: Consult the device's LED indicators (PWR, STATUS, HA, WAN, internal ports) for diagnostic information. Refer to the official documentation for LED status meanings.
• Мрежно поврзување: Check if your internet service is active and if connected devices can obtain IP addresses from the FortiGate.
• Конфигурација Review: Access the management console to review your network and security configurations for any misconfigurations.
• Рестартирајте го уредот: As a first step for many issues, try restarting the FortiGate-30G.
• Ресетирање на фабрички поставки: If all else fails and you have a backup of your configuration, you may consider resetting the device to factory defaults using the РЕСЕТИРАЈ копче. Warning: This will erase all configurations.

For advanced troubleshooting, refer to the Fortinet support webстраница или контактирајте ја техничката поддршка.

7. Спецификации

8. Видеа за производи

Below are official product videos that provide additional information about Fortinet firewalls and their capabilities.

9. Гаранција и поддршка

The Fortinet FortiGate-30G comes with standard manufacturer warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Fortinet webсајт.

For technical support, product registration, and access to the latest documentation and software updates, please visit the Fortinet Support Portal.

Additional protection plans may be available for purchase to extend coverage and support. Please check with your vendor for details.
