PowerSmart 24-Inch Self-Propelled Two-Stage Gas Snow Blower

1. Информации за безбедност

Always prioritize safety when operating this snow blower. Read and understand all instructions before use.

• Avoid Injury: Држете ги рацете, нозете и облеката подалеку од ротирачките делови.
• Јаглерод моноксид: Operate the engine in a well-ventilated area to prevent carbon monoxide poisoning. Never operate indoors.
• Заштитна опрема: Always wear appropriate personal protective equipment, including safety glasses or goggles and hearing protection. Wear sturdy footwear that provides good traction.
• Исчисти област: Before starting, clear the area of any objects that could be thrown by the auger.
• Ракување со гориво: Handle gasoline with extreme care. It is highly flammable. Store fuel in an approved container in a well-ventilated area away from ignition sources.

2. Производот завршиview & Клучни карактеристики

The PowerSmart HB7109A is a robust two-stage gas snow blower designed for efficient snow removal in various conditions.

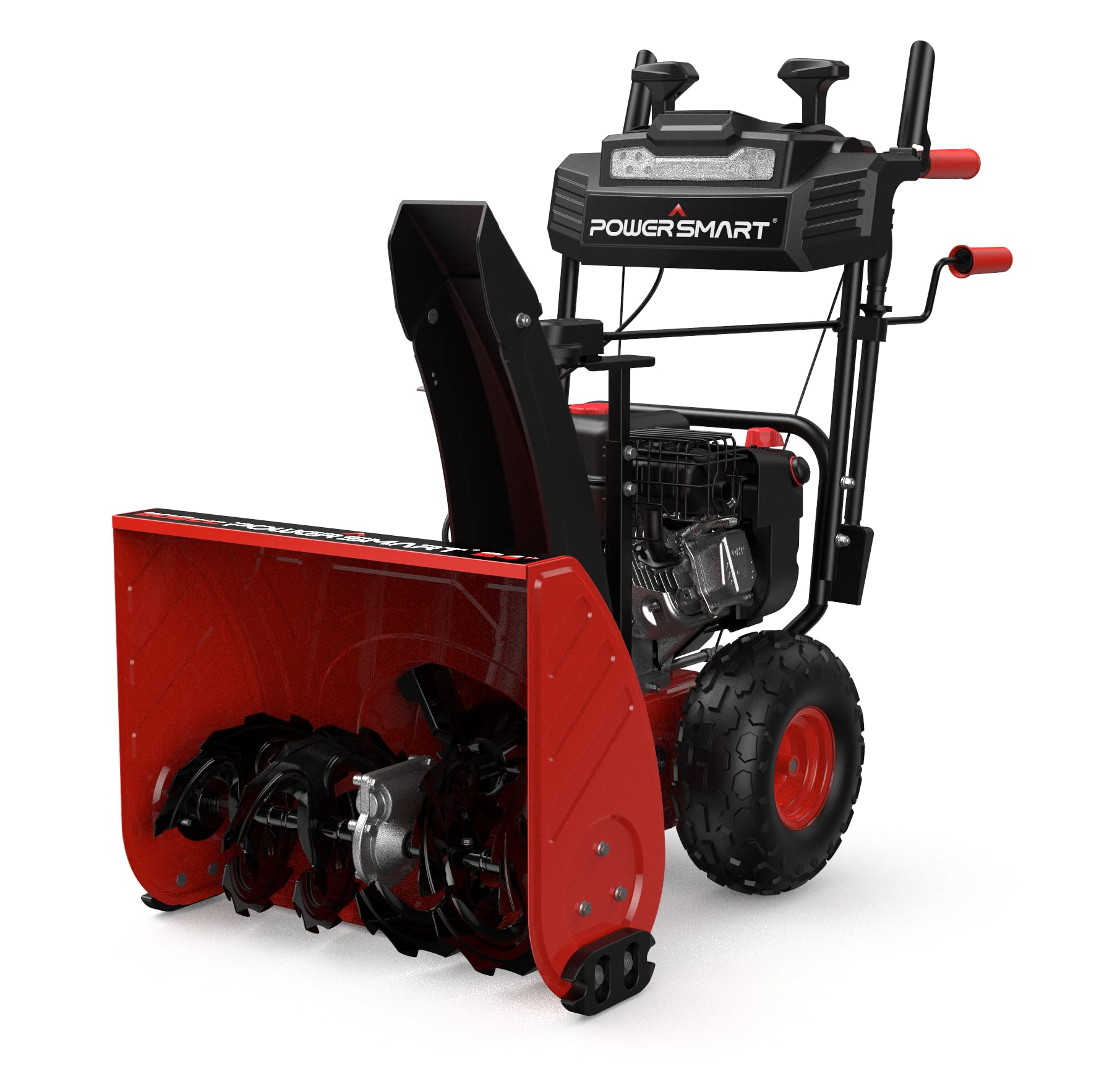

Севкупно view of the PowerSmart 24-Inch Self-Propelled Two-Stage Gas Snow Blower.

• 24-Inch Clearing Width with Two-Stagд Систем: Efficiently clears wide paths and handles heavy, wet snow with ease, ideal for large driveways and walkways.
• Powerful 208cc Briggs & Stratton Engine: Delivers reliable and robust performance for tackling tough winter conditions.
• Self-Propelled with 13-Inch Snow Tires: Provides superior traction and maneuverability on slippery surfaces, reducing user effort.
• Electric Start and Handle Warmer: Ensures quick, hassle-free ignition and keeps your hands warm during extended use in cold weather.
• Вградени LED светла: Enhances visibility for early morning or late-night snow removal, ensuring safety and convenience.

The snow blower is capable of clearing a 24-inch width and up to 20 inches of snow depth.

Одблиску view of the durable 12-inch all-steel augers designed for effective snow breakdown.

3. Поставување и склопување

Follow these steps to assemble your PowerSmart snow blower. Refer to the included videos for visual guidance.

3.1 Attaching the Upper Handle

Secure the upper handle to the main unit using the provided bolts and nuts. Ensure all connections are tight.

3.2 Connecting Speed Control Rods and Cables

Attach the speed control connection rod and route the upper auger and drive cables as per the diagram. Ensure proper tension for smooth operation.

3.3 Installing the Chute Assembly

Mount the chute assembly and attach the chute control handle. This allows you to adjust the snow discharge direction.

4. Упатства за работа

Familiarize yourself with the controls and operating procedures before using the snow blower.

4.1 Палење на моторот

The snow blower features both electric start and recoil start options. Ensure the fuel tank is filled with fresh gasoline and the oil reservoir has the correct type and amount of oil.

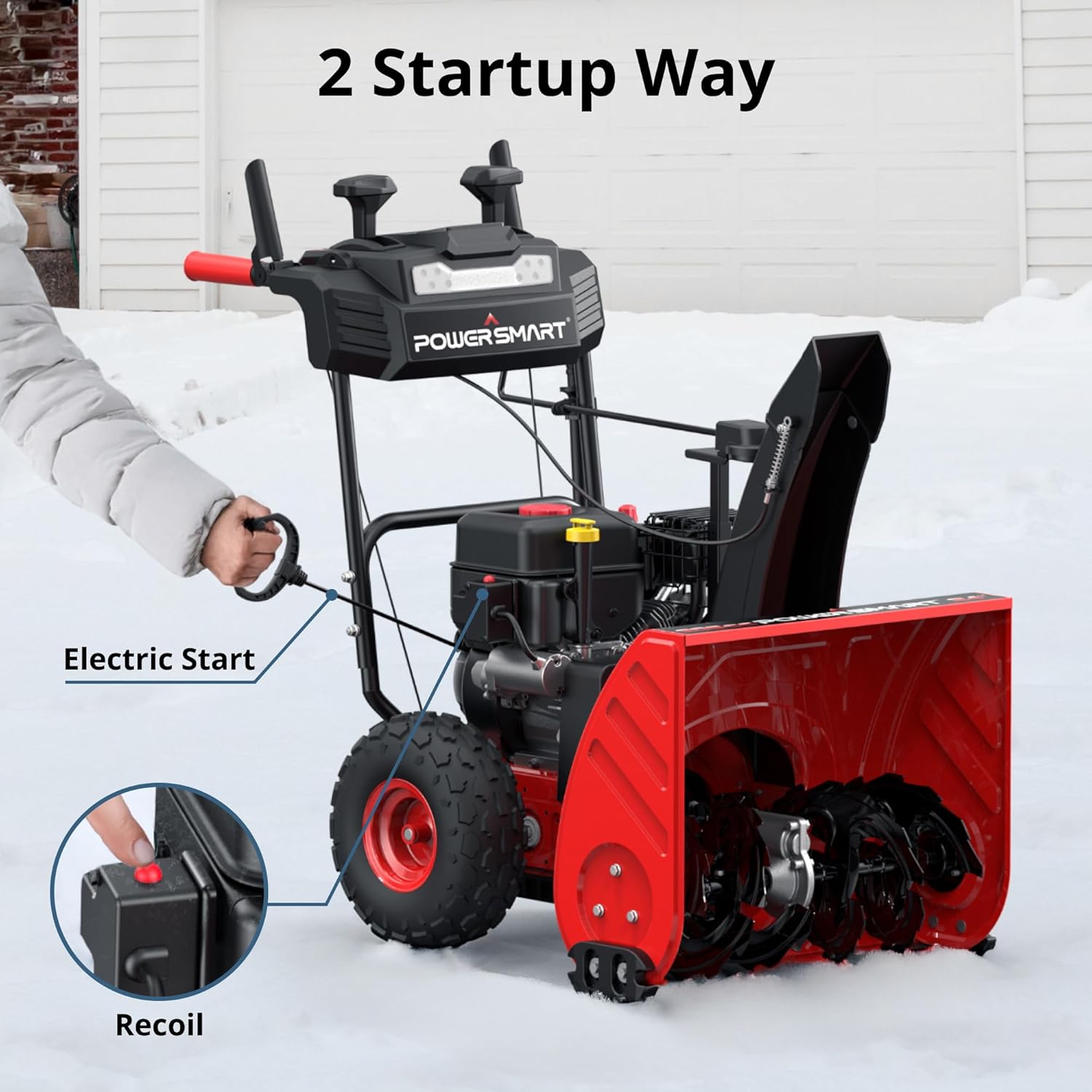

Illustration of the two startup methods: electric start (plug-in) and manual recoil start.

4.2 Engaging Drive and Augers

Use the self-propelled drive system for easier maneuverability. Engage the auger control to begin clearing snow.

The self-propelled drive system provides assistance, reducing physical effort during operation.

4.3 Adjusting Snow Chute and Features

Adjust the 180-degree rotating chute to direct snow away from cleared areas. Utilize the built-in LED lights for visibility and the handle warmers for comfort in cold conditions.

Key operational features: bright LED light for visibility, heated handles for comfort, and a chute that rotates 180 degrees for precise snow discharge.

5. Одржување

Regular maintenance ensures optimal performance and longevity of your snow blower.

Diagram showing essential maintenance parts including engine oil, auger drive belt, wheel drive belt, shear pins, key switch, shave plate, skid shoes, tires, heated hand grips, plastic chute, spark plug, and clean out tool.

• Моторно масло: Check oil level before each use. Use 5W-30 engine oil.
• Гориво: Use fresh, clean gasoline. Avoid old or contaminated fuel.
• Свеќица: Inspect and clean or replace the spark plug as needed for reliable starting.
• Појаси: Regularly inspect the auger drive belt and wheel drive belt for wear and tear. Replace if damaged.
• Смоли за сечење: Keep spare shear pins on hand. These are designed to break to protect the auger and gearbox from damage if an object is struck.
• Чевли за лизгање: Adjust or replace skid shoes to maintain proper clearing height and protect the auger housing.
• Clean Out Tool: Use the provided clean out tool to remove clogs from the discharge chute. Never use hands.

6 Смена на проблеми

If you encounter issues with your snow blower, refer to the following common troubleshooting tips:

• Моторот не се пали:
  • Check fuel level and ensure it's fresh.
  • Verify oil level.
  • Ensure the spark plug is clean and properly connected.
  • Confirm choke and primer settings are correct for starting.
  • Check the on/off switch is in the 'ON' position.
• Моторот работи лошо или запира:
  • Check for stale fuel; drain and refill if necessary.
  • Проверете го филтерот за воздух за затнување.
  • Ensure the spark plug is clean and gapped correctly.
• Snow Blower Not Clearing Effectively:
  • Check for clogged discharge chute (use clean out tool).
  • Inspect auger and impeller for obstructions or damage.
  • Verify shear pins are intact.
  • Adjust skid shoes for appropriate clearing height.
• Истекување на гориво:
  • Inspect fuel lines and connections for damage.
  • If leakage is from the carburetor, it may require adjustment or repair by a qualified technician.

7. Спецификации

8. Гаранција и поддршка

For warranty information, technical support, or to order replacement parts, please contact PowerSmart customer support.

• Поддршка за корисници: Refer to your product packaging or the official PowerSmart webстраница за најактуелните информации за контакт.
• Достапност на делови: All parts are available. Contact customer service for specific part inquiries.
• Телефонска поддршка: 1-888-293-0024 (as indicated on maintenance key image).
