1. Производот завршиview
The AODELAN BR-3 is a wireless remote control designed for compatible Nikon cameras. It features an OLED screen for real-time status updates, USB-C fast charging, and supports various camera functions including still image shooting, video recording, BULB mode, zoom, and focus control. Its compact design allows for easy portability.
Клучни карактеристики:
- OLED Screen: Displays charging status, battery level, and pairing status.
- USB-C Rechargeable: Built-in battery with fast charging (approx. 1.5 hours).
- Firmware Upgrades: Supports updates via the Type-C port for future compatibility.
- Multi-functional: Controls still photos, video, BULB mode, zoom, and focus.
- Operating Range: Up to 30m (97ft) wireless control.
- Anti-shake Function: Enhances shooting stability.
Image 1.1: AODELAN BR-3 Wireless Remote Control with its OLED screen and various function buttons.
2. Поставување и спарување
2.1 Полнење на далечинскиот управувач
Before initial use, fully charge the remote control using the provided USB-C cable. Connect the cable to the remote's USB-C port and a power source (e.g., power bank, laptop, USB wall adapter). The OLED screen will display the charging status and battery level. A full charge typically takes about 1.5 hours.
Image 2.1: The remote control connected via USB-C for charging.

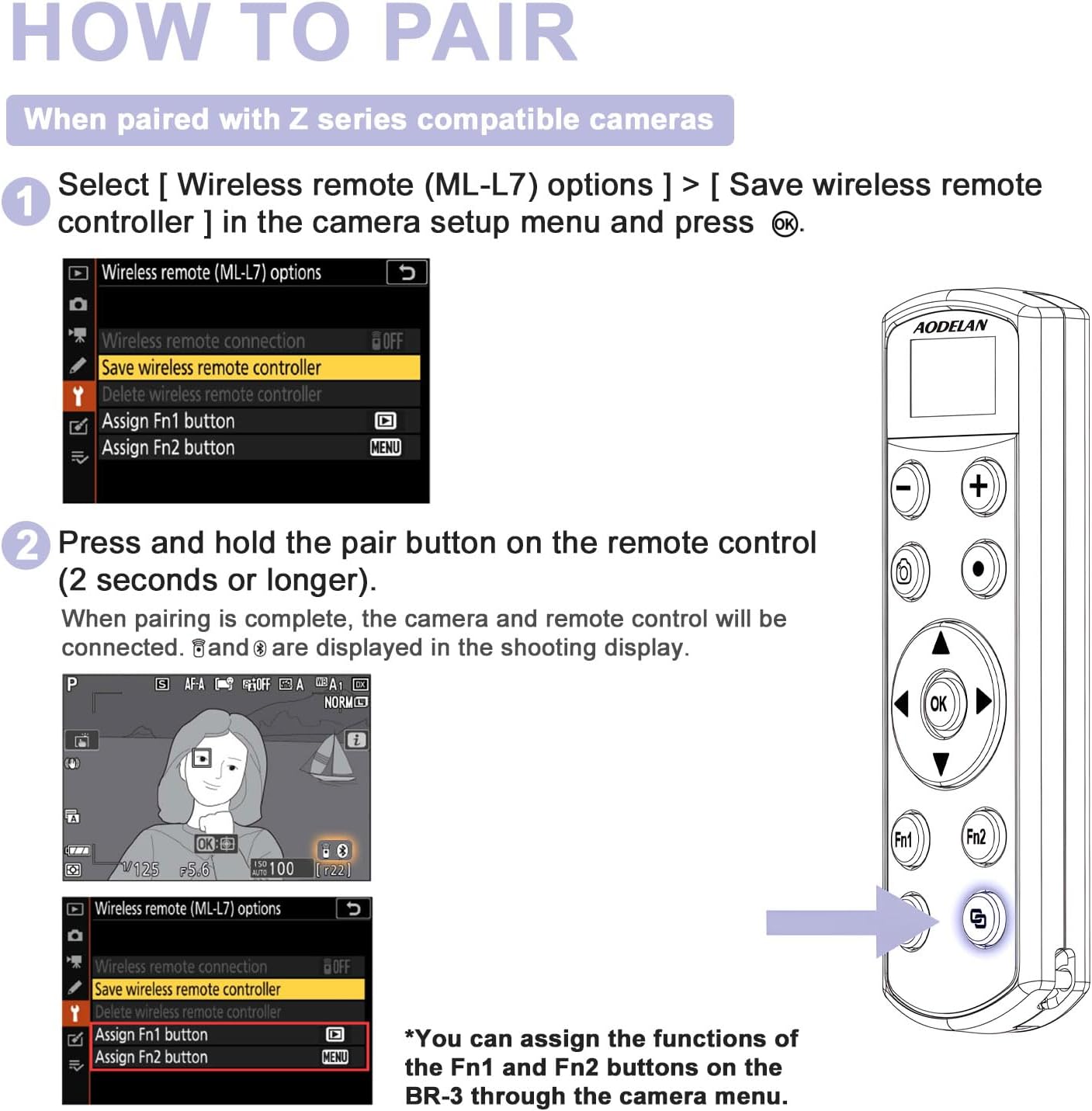

2.2 Pairing with Nikon Z Series Cameras
- On your Nikon Z series camera, press the МЕНИ копче.
- Одете до [Wireless remote (ML-L7) options].
- Изберете [Save wireless remote controller] и притиснете го OK копче.
- On the AODELAN BR-3 remote control, press and hold the Пар button for at least 2 seconds. The OLED screen will display "Scanning" and then "OK!" upon successful pairing.
Note: For Nikon Z series cameras, remote zooming of the lens is not supported, but remote zooming of the previewed image is supported. Functions cannot be assigned to the Fn1 and Fn2 buttons on the remote for these models.
Image 2.2: Visual guide for pairing the remote with Nikon Z series cameras.
Video 2.1: Demonstrates the pairing process for the AODELAN BR-3 remote control with an OLED screen for Nikon cameras.
2.3 Pairing with Nikon Coolpix Cameras
- On your Nikon Coolpix camera, press the МЕНИ копче.
- Use the multi selector (▲▼◀▶) за да го изберете „Т“ menu icon, then press the OK копче.
- Изберете [Choose connection] и притиснете го OK копче.
- Изберете [Далечински управувач] и притиснете го OK копче.
- Изберете [Connection to remote] и притиснете го OK button. The camera will now wait for a connection.
- On the AODELAN BR-3 remote control, press and hold the Пар button for at least 2 seconds. Upon successful connection, the camera's shooting display will show relevant indicators.
Note: Coolpix cameras do not support assigning functions to the Fn1 and Fn2 buttons on the BR-3.
Image 2.3: Visual guide for pairing the remote with Nikon Coolpix cameras.
Video 2.2: Instructions on how to pair the AODELAN BR-3 remote control with Nikon Coolpix cameras.
3. Упатства за работа
3.1 Power On/Off and Pairing Status
Долго притиснете го Моќ button to turn the remote on. The OLED screen will display "Scanning" to indicate it's searching for a paired camera. If no Bluetooth connection is established within 3 minutes, the remote will automatically shut down to conserve battery.
Image 3.1: The remote's OLED screen showing "Scanning" during the pairing process.
3.2 Still Image Shooting
To take a still photo, ensure your camera's photo/video selector is set to the photo icon (📷). Притиснете го Shutter-release button on the remote control. The OLED screen will display the shutter icon (◧) when pressed.
Image 3.2: Using the remote to capture still images.
3.3 Снимање видео
To record a video, set your camera's photo/video selector to the video icon (▶). Притиснете го Movie record button on the remote control to start recording. Press it again to stop recording. The OLED screen will display the movie record icon (●) when pressed.
Image 3.3: Using the remote to start and stop video recording.
3.4 Zoom Control
Притиснете го - button on the remote to zoom to the wide-angle side, or the + button to zoom to the telephoto side. The OLED screen will display W- за широк агол и T+ for telephoto zoom.
Note: Nikon Z series cameras do not support remote zooming of the lens. However, remote zooming of the previewed image is supported. When viewing recorded photos on the camera's screen, press the -/+ buttons on the Remote Control to zoom in/out.
Image 3.4: Demonstrating the zoom in and zoom out functions using the remote.
3.5 BULB Mode
With the camera set to "Bulb" (or "Time") mode, press the Shutter-release button on the remote to start exposure. Press it again to end exposure.
Image 3.5: The shutter-release button used for Bulb mode photography.

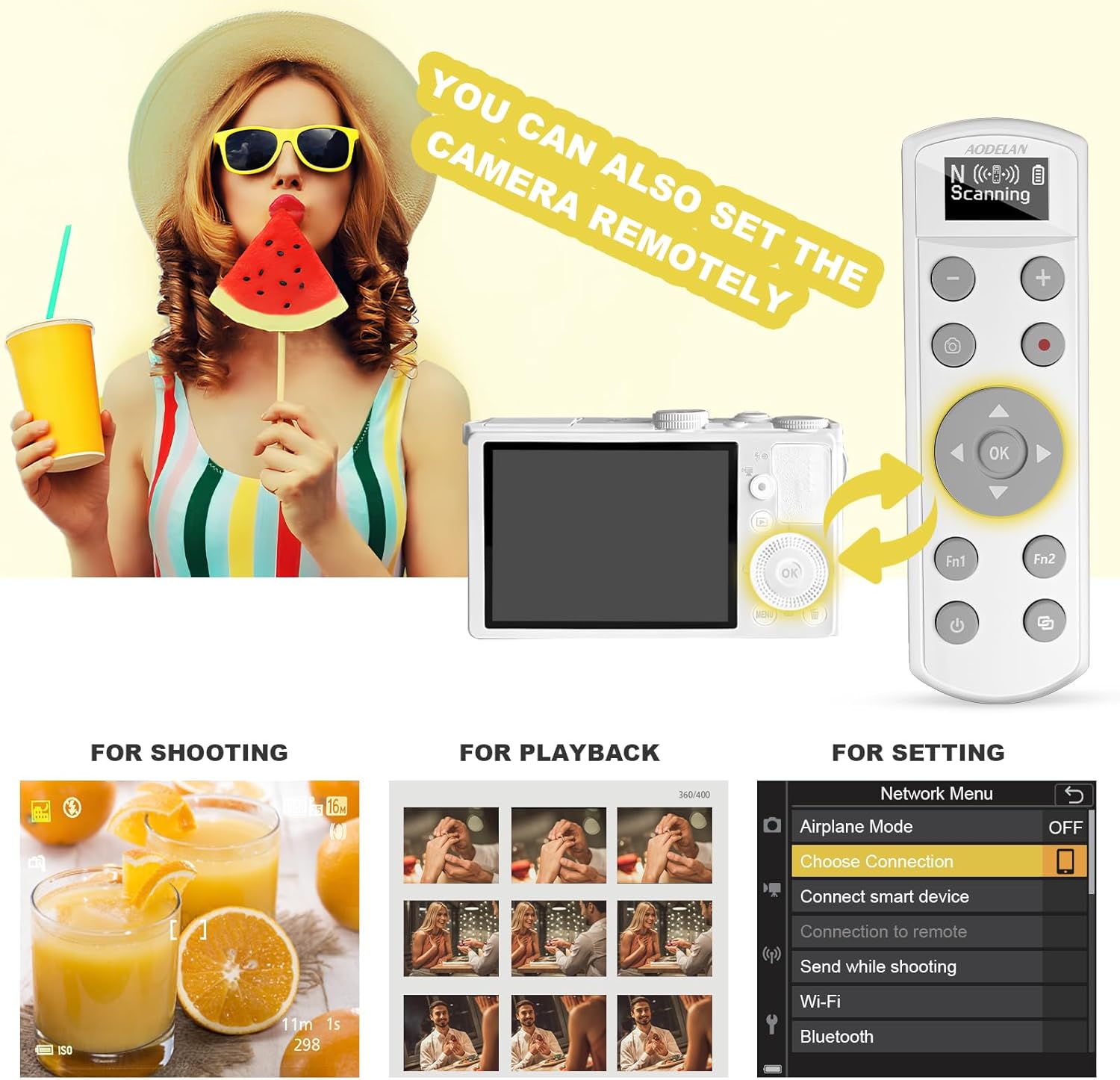

3.6 Remote Camera Settings (Multi Selector)
The multi selector (▲▼◀▶) и OK button on the remote can be used to navigate and select options within the camera's menu for shooting, playback, and general settings.
- For Shooting: While the shooting screen is displayed, use the multi selector to adjust settings like flash mode, self-timer, focus mode, exposure compensation, brightness, vividness, hue, and Active D-Lighting.
- For Playback: While the playback screen is displayed, use the multi selector to change the displayed image or move the display area when a zoomed image is shown.
- For Settings: Navigate the camera's Network Menu (e.g., Airplane mode, Choose connection, Connect smart device, Send while shooting, Wi-Fi, Bluetooth) using the multi selector and confirm with the OK копче.
Image 3.6: The remote control interacting with camera settings and playback.
4. Одржување
- Чистење: Use a soft, dry cloth to clean the remote control. Do not use liquid cleaners or solvents.
- Складирање: Чувајте го далечинскиот управувач на ладно и суво место, подалеку од директна сончева светлина и екстремни температури.
- Нега на батеријата: To maintain battery health, avoid fully discharging the remote frequently. Recharge it regularly, especially if storing for extended periods.
- Ажурирања на фирмверот: Periodically check the AODELAN official website for any available firmware updates to ensure optimal performance and compatibility with new camera models. Updates can be performed via the USB-C port.
5 Смена на проблеми
| Проблем | Можна причина | Решение |
|---|---|---|
| Далечинскиот управувач не се вклучува. | Слаба батерија. | Charge the remote control using the USB-C cable. |
| Cannot pair with camera. | Incorrect pairing steps, camera not in pairing mode, or remote too far. |
|
| Remote functions (shutter, zoom) not working. | Not paired, camera mode incorrect, or specific function not supported by camera model. |
|
| OLED screen is blank or unresponsive. | Слаба батерија или дефект на уредот. | Charge the remote. If the issue persists after charging, contact customer support. |
6. Спецификации на производот
| Карактеристика | Детал |
|---|---|
| Модел | BR-3 |
| Бренд | АОДЕЛАН |
| Поврзување | Безжичен (Bluetooth) |
| Оперативен опсег | До 30 метри (97 стапки) |
| Извор на енергија | Built-in Lithium Ion battery (rechargeable via USB-C) |
| Време на полнење | Прибл. 1.5 часа |
| Димензии | 3.74 x 1.97 x 0.79 инчи (Димензии на пакетот) |
| Тежина на ставката | 1.06 унци |
| Compatible Nikon Models | Z6 III, Z30, Z50, Z50II, Zfc, Zf; Z6II, Z7II, Z5 (with V1.40 or later firmware update); Coolpix A1000, B600, P1000, P950. |
| Посебни карактеристики | OLED Display, Rechargeable, Firmware Upgradable |
7. Поддршка за корисници и гаранција
For technical assistance, warranty information, or to report any issues with your AODELAN BR-3 Wireless Remote Control, please contact AODELAN customer support.
Контакт информации:
- Refer to the contact details provided in your product packaging or on the official AODELAN webсајт.
- If purchased through Amazon, you may contact the seller "Fotolinko" directly via your Amazon order history for support.
AODELAN is committed to customer satisfaction. If you are not satisfied with the product for any reason, please reach out for assistance.
