atomberg Erica Artesta 1200mm BLDC Ceiling Fan Instruction Manual

1. Производот завршиview

The atomberg Erica Artesta is a 1200mm BLDC ceiling fan designed for efficient air circulation. It features a BLDC motor, remote control operation, and an LED speed indicator.

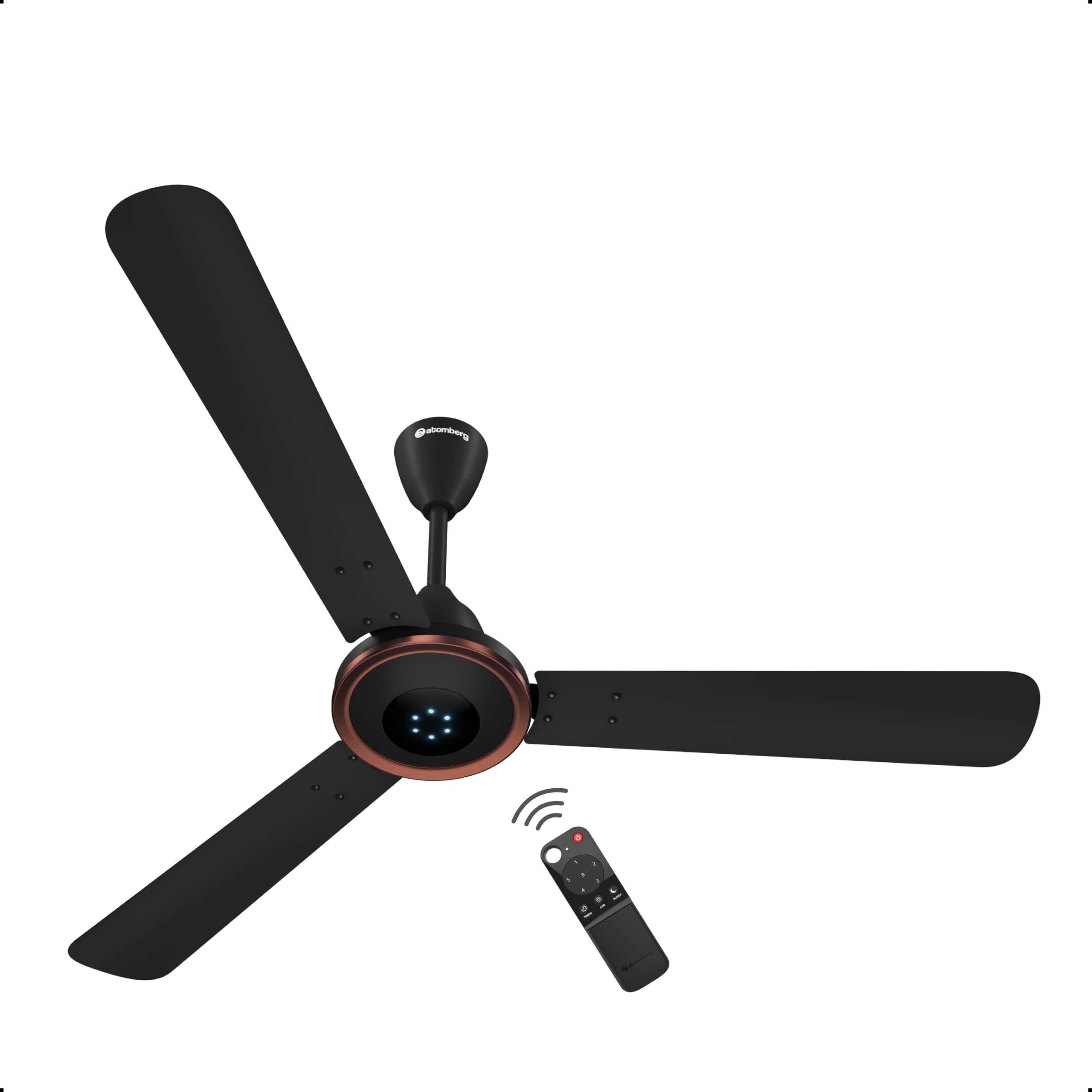

Image 1.1: atomberg Erica Artesta 1200mm BLDC Ceiling Fan in Midnight Black.

Клучни карактеристики:

• Energy-efficient BLDC motor (35W at top speed).
• Remote control for speed adjustment, Boost Mode, Timer, and Sleep Mode.
• LED speed indicator for operational feedback.
• Air delivery of 237 CMM.
• Low noise level (less than 57 dB).
• Consistent speed during voltage fluctuations (165V-285V).

Image 1.2: Design elements of the Erica Artesta fan, highlighting the contrast ring, wider blades, and LED indicator.

2. Содржина на пакетот

Проверете дали сите компоненти се присутни во пакувањето пред да продолжите со инсталацијата:

• Blade set (1 Unit)
• Remote (1 Unit)
• Motor box (1 Unit)
• Canopy set (1 Unit)
• Downrod (1 Unit)
• Shackle kit (1 Unit)
• Manual Leaflet & Warranty card (1 Unit)

3. Инсталација (Поставување)

The atomberg Erica Artesta ceiling fan is designed for easy installation on various ceiling types. Professional installation services are available at a nominal cost across India if required. Contact customer support for assistance.

Компатибилност на таванот:

This fan is compatible with both standard and false/low-height ceilings. For false ceilings or low heights, use the provided ceiling plate with the bottom canopy. For full height availability, both the bottom and top canopies can be used.

Image 3.1: Illustration of ceiling fan installation for different ceiling types.

Инструкции за поврзување:

Ensure the electricity flows directly to the fan. If an existing regulator is present, it should be disconnected from the electrical board to ensure optimal performance of the BLDC motor.

Додаток на сечилото:

Attach the blades securely to the motor. Ensure all screws are tightened with equal torque to prevent wobbling during operation. If wobbling occurs, check blade attachment and consider using insulation tape on the ceiling mount before fixing the downrod to minimize movement.

4. Упатства за работа

The fan is operated using the included Smart IR Remote. The remote is universal across atomberg fans and does not require pairing.

Image 4.1: Smart IR Remote control functions.

Функции на далечинскиот управувач:

• Вклучување/исклучување: Притиснете го копчето за вклучување за да го вклучите или исклучите вентилаторот.
• Прилагодување на брзината: Use the speed buttons (1-6) to select the desired fan speed. The fan has 6 power levels.
• Режим на засилување: Activates the highest fan speed for maximum airflow.
• Режим на тајмер: Set the fan to switch off after a pre-set number of hours.
• Режим на спиење: Gradually decreases the fan's speed over time, typically every two hours, for comfortable sleep.
• LED контрола на светлината: Turn the integrated LED light on or off.

LED индикатор за брзина:

The fan features an LED light that provides visual feedback for various operations, such as turning the fan on/off, adjusting speed, or setting timer/sleep modes.

5. Одржување

To ensure optimal performance and longevity of your atomberg Erica Artesta ceiling fan, regular maintenance is recommended.

• Чистење: Periodically clean the fan blades and motor housing with a soft, dry cloth to remove dust accumulation. Do not use abrasive cleaners or solvents.
• Инспекција на сечилото: Check the fan blades for any signs of damage or imbalance. Ensure all blade screws remain tight.
• Проверка на монтирање: Annually inspect the ceiling mount and downrod for secure attachment.

6 Смена на проблеми

Овој дел се однесува на вообичаени проблеми со кои може да се соочите со вашиот вентилатор на таванот.

Fan Wobbling:

• Ensure all blade screws are securely tightened with equal torque.
• Verify that the downrod is firmly attached to the ceiling mount. Applying a few rounds of insulation tape on the ceiling mount before fixing the downrod can help reduce movement.

Fan Not Responding to Remote:

• Проверете ги батериите на далечинскиот управувач и заменете ги доколку е потребно.
• Уверете се дека нема пречки помеѓу далечинскиот управувач и приемникот на вентилаторот.

Намален проток на воздух или невообичаен шум:

• Clean the fan blades and motor housing to remove dust buildup.
• Inspect blades for any damage or bending.
• Ensure the fan is operating at a sufficient speed setting.

Флуктуации на моќноста:

The fan is designed to maintain consistent speed during voltage fluctuations between 165V-285V. If issues persist outside this range, consult an electrician.

7. Спецификации

Detailed technical specifications for the atomberg Erica Artesta 1200mm BLDC Ceiling Fan.

Image 7.1: Energy efficiency comparison and BEE 5-star rating.

8. Гаранција и поддршка

Информации за гаранцијата:

The atomberg Erica Artesta ceiling fan includes a standard 1-year warranty. An additional 1-year warranty can be obtained by registering your purchase on the official atomberg website. Refer to the included Warranty card for detailed terms and conditions.

Поддршка за корисници:

For any assistance with installation, operation, troubleshooting, or warranty claims, please contact atomberg customer support:

• Е-пошта: support@atomberg.com
• Бесплатен број: 08448449442
• Webсајт: Visit the official atomberg webстраница за повеќе информации и барања за услуги.

Professional installation services are available at a nominal cost across India. Contact customer support to avail this service.
