ATTACK SHARK X68PRO HE Keyboard and X3 Mouse Combo User Manual

Вашиот водич за поставување, работа и одржување.

1. Вовед

This manual provides detailed instructions for the ATTACK SHARK X68PRO HE Mechanical Wireless Gaming Keyboard and the ATTACK SHARK X3 Wireless Gaming Mouse Combo. Please read this manual carefully before using the products to ensure proper functionality and to maximize your gaming experience.

2. Производот завршиview

2.1 ATTACK SHARK X68PRO HE Keyboard

The X68PRO HE is a 60% layout mechanical gaming keyboard featuring Hall Effect magnetic switches, an 8000Hz polling rate, and multi-mode connectivity. It is designed for high-performance gaming with adjustable actuation and rapid trigger capabilities.

ATTACK SHARK X68PRO HE Keyboard overview with features and dimensions

Image: ATTACK SHARK X68PRO HE Keyboard. This image displays the keyboard's overall design, highlighting its BT/2.4G/Wired 3 modes connection, magnetic switches, 0.01mm RT accuracy, DKS support, full RGB backlit, PBT keycaps, MAC/WIN compatibility, and web driver. Dimensions are shown as 12.80 inches length, 4.645 inches width, 1.57 inches height, and a weight of 0.78 KG.

Клучни карактеристики:

  • 8000Hz стапка на анкетирање: Ensures ultra-low 0.125ms latency in wired mode for instant keystroke registration.
  • Hall Effect Magnetic Switches: Self-developed switches with adjustable actuation from 0.1mm to 3.4mm, offering 0.01mm sensitivity.
  • Брзо активирање: Eliminates debounce delay, allowing keys to reset instantly for faster, more precise movements.
  • Dual-Action Key Function: Assign two different actions to a single key based on pressure.
  • Компактен распоред од 60%: Space-saving design with an aircraft-grade anodized aluminum frame.
  • Поврзување: Supports Bluetooth, 2.4GHz wireless, and wired (USB-C) connections.
  • RGB позадинско осветлување: Full RGB with multiple lighting effects.
  • PBT копчиња: Durable, side-engraved PBT keycaps.
  • Web Возач: Customizable settings via a dedicated web возачот.
ATTACK SHARK X68PRO HE Keyboard with 8000Hz polling rate highlighted

Image: Keyboard highlighting 8000Hz Polling Rate. This image emphasizes the keyboard's lightning-fast response with an 8000Hz polling rate in wired mode and ultra-low 0.125ms latency.

Linear Magnetic Switch details for ATTACK SHARK X68PRO HE Keyboard

Image: Linear Magnetic Switch. This image provides a close-up of the linear magnetic switch, detailing its specifications: Total Travel 3.8±0.3mm, Operation Force 40±5gf, Initial Magnetic Flux 95±15GS, Bottom Magnetic Flux 580±50GS, and a Lifespan of 100 Million clicks.

Gasket Structure diagram of ATTACK SHARK X68PRO HE Keyboard

Image: Gasket Structure. This diagram illustrates the internal gasket structure of the keyboard, showing components such as side engraving PBT keycaps, thick rubber top case, ATTACK SHARK magnetic switch, aluminum alloy plate, PORON foam, PCB positioning board, custom silicone mold, and thick rubber bottom case.

2.2 ATTACK SHARK X3 Mouse

The X3 is an ultra-lightweight wireless gaming mouse equipped with a Pixart PAW3395 optical sensor and Kailh GM8.0 switches. It offers tri-mode connectivity and high DPI settings for precise control.

ATTACK SHARK X3 Mouse overview

Image: ATTACK SHARK X3 Mouse. This image presents the X3 mouse in red, along with its USB receiver, highlighting its ultra-lightweight design, tri-mode connectivity, PixArt PAW 3395 sensor, up to 26000 DPI, and Kailh GM 8.0 switches.

Клучни карактеристики:

  • Pixart PAW3395 Sensor: Flagship optical sensor with 6-level adjustable DPI (800/1600/2400/3200/5000/26000), 650 IPS tracking speed, 1000Hz response speed, and 50G acceleration.
  • Kailh GM8.0 Switches: High-end micro switches with an 80 million click lifespan, providing crisp clicks and fast rebound.
  • TTC Encoder: Scroll wheel encoder for precise positioning.
  • Ултра лесен дизајн: Weighs approximately 49g for effortless action.
  • Три-режимска поврзаност: Supports 2.4GHz wireless, Bluetooth 5.0, and wired (USB-C) connections.
Kailh GM 8.0 Switches and TTC Encoder in ATTACK SHARK X3 Mouse

Image: Kailh GM 8.0 Switches & TTC Encoder. This image shows a cutaway view of the mouse, highlighting the Kailh GM 8.0 switches with an 80 million click lifespan and the TTC encoder for well-defined scroll steps, designed to eliminate unintended double clicks.

ATTACK SHARK X3 Mouse ultra-light design showing 49g weight

Image: Ultra-Light Design. This image illustrates the lightweight nature of the X3 mouse, stating it weighs only 49±4g (1.72oz).

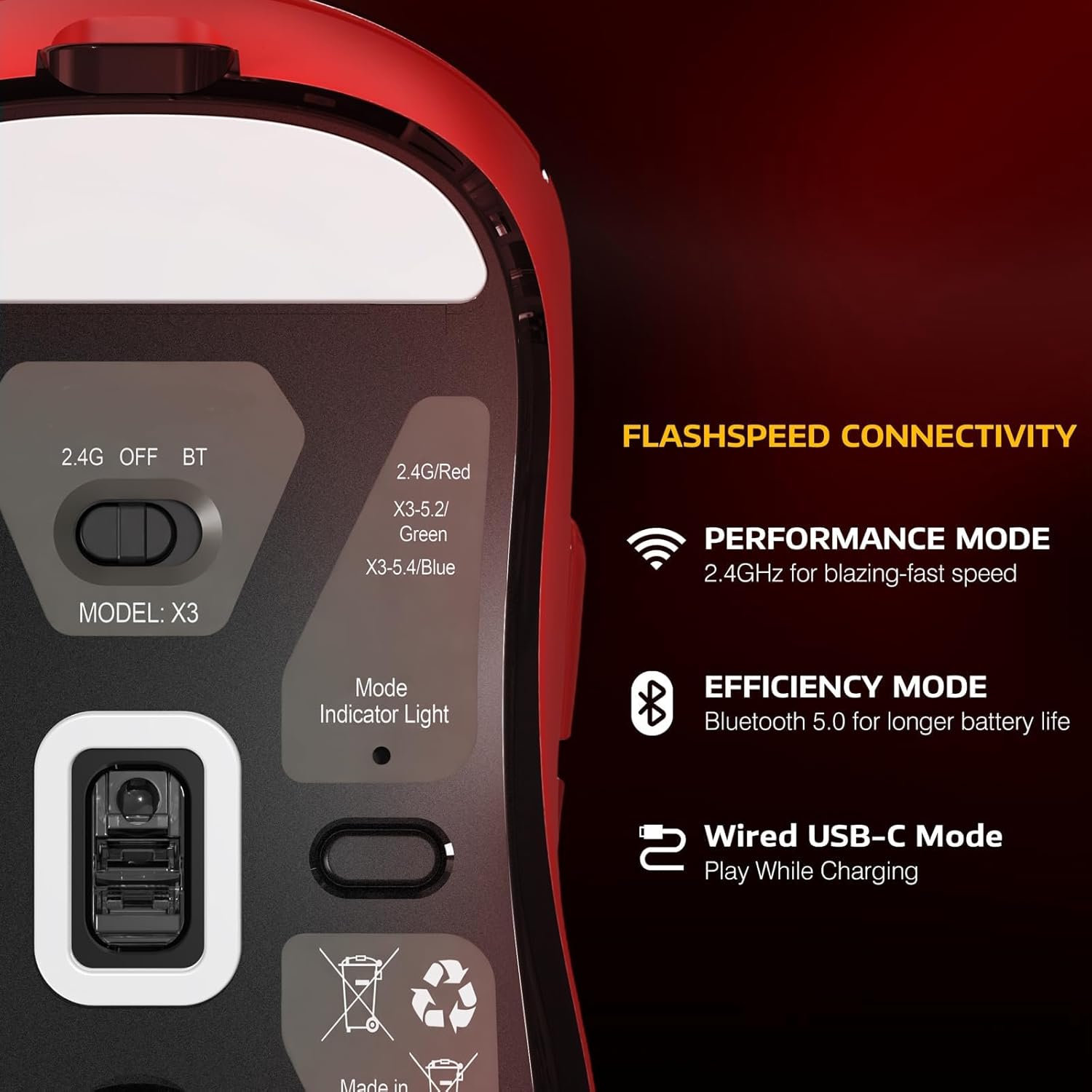

ATTACK SHARK X3 Mouse bottom view showing connectivity options

Image: Flashspeed Connectivity. This image shows the bottom of the X3 mouse, detailing its connectivity options: a switch for 2.4G, OFF, and BT modes, and a mode indicator light. It also describes Performance Mode (2.4GHz for blazing-fast speed), Efficiency Mode (Bluetooth 5.0 for longer battery life), and Wired USB-C Mode (play while charging).

3. Упатства за поставување

3.1 Connecting the Keyboard (X68PRO HE)

  1. Wичен режим: Connect the provided USB-C cable from the keyboard to an available USB port on your computer. The keyboard will be recognized automatically.
  2. Безжичен режим од 2.4 GHz:
    • Locate the 2.4GHz USB receiver.
    • Приклучете го ресиверот во достапна USB порта на вашиот компјутер.
    • On the keyboard, switch the mode selector to '2.4G'. The keyboard should connect automatically.
  3. Режим на Bluetooth:
    • Switch the keyboard's mode selector to 'BT'.
    • На вашиот компјутер или уред, овозможете Bluetooth и пребарајте нови уреди.
    • Select 'ATTACK SHARK X68PRO HE' from the list of available devices to pair.

3.2 Connecting the Mouse (X3)

  1. Wичен режим: Connect the provided USB-C cable from the mouse to an available USB port on your computer. The mouse will function immediately and charge simultaneously.
  2. Безжичен режим од 2.4 GHz:
    • Locate the 2.4GHz USB receiver (usually stored in a compartment on the mouse's underside).
    • Приклучете го ресиверот во достапна USB порта на вашиот компјутер.
    • On the mouse's underside, switch the mode selector to '2.4G'. The mouse should connect automatically.
  3. Режим на Bluetooth:
    • On the mouse's underside, switch the mode selector to 'BT'.
    • На вашиот компјутер или уред, овозможете Bluetooth и пребарајте нови уреди.
    • Изберете „ATTACK SHARK X3“ од листата на достапни уреди за спарување.

3.3 Инсталација на драјвери

For advanced customization of both the keyboard and mouse, download the official web driver from the ATTACK SHARK website. This driver allows for actuation adjustment, key remapping, macro creation, and RGB lighting control.

4. Упатства за работа

4.1 Keyboard Operation (X68PRO HE)

  • Прилагодување на активирањето: Користете го web driver software to precisely adjust the actuation point of each magnetic switch from 0.1mm to 3.4mm with 0.01mm sensitivity.
  • Брзо активирање: This feature is enabled and configured via the web driver. It allows keys to register a reset immediately upon release, without needing to return to the full up position.
  • Dual-Action Key Function: Configure this feature through the web driver. Assign a primary action for a light press and a secondary action for a deeper press on the same key.
  • Контрола на RGB осветлување: Adjust lighting effects, brightness, and color patterns using the web driver or specific keyboard shortcuts (refer to the driver software for default key combinations).
  • Префрлување режим: Use the physical switch on the keyboard to toggle between Wired, 2.4G, and Bluetooth modes.
  • MAC/WIN Compatibility: The keyboard supports both operating systems. Use the web driver to switch layouts or specific key functions if needed.

4.2 Mouse Operation (X3)

  • Прилагодување на DPI: The mouse features 6 adjustable DPI levels (800/1600/2400/3200/5000/26000). Use the dedicated DPI button (usually located behind the scroll wheel) to cycle through these settings. The current DPI level may be indicated by an LED color or pattern.
  • Префрлување режим: Use the physical switch on the underside of the mouse to select between 2.4G, OFF, and Bluetooth modes.
  • Полнење: Connect the mouse to your computer using the USB-C cable to charge. The mouse can be used in wired mode while charging.
  • Индикатор за батерија: The mouse typically has an LED indicator that shows battery status (e.g., blinking for low battery, solid for charging, off for full charge).

5. Одржување

  • Чистење: Use a soft, dry cloth to wipe down the keyboard and mouse. For deeper cleaning, use a cotton swab lightly dampзбогатено со изопропил алкохол за тешко достапни места. Избегнувајте прекумерна влага.
  • Отстранување на капачето на тастатурата (тастатура): Keycaps can be carefully removed using a keycap puller for cleaning or replacement. Be gentle to avoid damaging the switches.
  • Нега на батеријата: For wireless devices, avoid fully discharging the battery frequently. Charge regularly. If storing for an extended period, charge the battery to about 50% to prolong its lifespan.
  • Складирање: Чувајте ги уредите на ладно и суво место, подалеку од директна сончева светлина и екстремни температури.

6 Смена на проблеми

6.1 Keyboard Troubleshooting

  • Тастатурата не реагира:
    • Ensure the keyboard is charged if in wireless mode.
    • Check the mode switch (Wired/2.4G/BT) is set correctly.
    • За 2.4G, проверете дали USB приемникот е безбедно вклучен.
    • For Bluetooth, ensure it's paired correctly and your device's Bluetooth is active. Try re-pairing.
    • Try connecting in wired mode to rule out wireless issues.
  • Клучевите не се регистрираат или се пишуваат двојно:
    • Check for debris under the keycap.
    • If using Rapid Trigger, ensure settings in the web driver are appropriate for your use.
    • Consider resetting keyboard settings via the web возачот.
  • RGB осветлувањето не работи:
    • Ensure lighting is enabled in the web возачот.
    • Check brightness settings.

6.2 Mouse Troubleshooting

  • Mouse not moving or erratic cursor:
    • Ensure the mouse is charged if in wireless mode.
    • Check the mode switch (2.4G/BT) is set correctly.
    • За 2.4G, проверете дали USB приемникот е безбедно вклучен.
    • For Bluetooth, ensure it's paired correctly and your device's Bluetooth is active. Try re-pairing.
    • Исчистете го оптичкиот сензор на долната страна од глувчето.
    • Try connecting in wired mode.
  • DPI не се менува:
    • Ensure the DPI button is functioning.
    • Check if any software is overriding DPI settings.
  • Проблеми со поврзувањето:
    • Ensure the mouse is within range of the receiver/Bluetooth device.
    • Избегнувајте пречки од други безжични уреди.

7. Спецификации

7.1 ATTACK SHARK X68PRO HE Keyboard

  • Стапка на анкети: 8000Hz (Wired Mode)
  • Латентност: 0.125 ms
  • Прекинувачи: Магнетни прекинувачи со ефект на Хол
  • Прилагодување на активирањето: 0.1mm - 3.4mm (0.01mm sensitivity)
  • Распоред: 60%
  • Материјал на рамката: Aircraft-grade Anodized Aluminum
  • Клучни капи: Side-Engraved PBT
  • Поврзување: Bluetooth, безжичен 2.4 GHz, жичен USB-C
  • Задно осветлување: Full RGB
  • Компатибилност со оперативен систем: Windows, macOS
  • Димензии: Приближно 12.80 x 4.645 x 1.57 инчи
  • Тежина: Приближно 0.78 кг

7.2 ATTACK SHARK X3 Mouse

  • Сензор: Pixart PAW3395 Optical Sensor
  • DPI: 800/1600/2400/3200/5000/26000 (Adjustable)
  • Брзина на следење: 650 FPS
  • Брзина на одговор: 1000 Hz
  • Забрзување: 50G
  • Прекинувачи: Kailh GM8.0 Micro Switches (80 Million Clicks Lifespan)
  • Кодер: TTC енкодер за тркало за скролување
  • Тежина: Приближно 49 гр
  • Поврзување: Bluetooth 5.0, безжичен 2.4GHz, USB-C кабел
  • Компатибилност со оперативен систем: Windows, macOS, Linux

8. Гаранција и поддршка

ATTACK SHARK products typically come with a limited manufacturer's warranty. Please refer to the warranty card included with your product or visit the official ATTACK SHARK website for detailed warranty terms and conditions. For technical support, driver downloads, or further assistance, please visit the ATTACK SHARK support page or contact their customer service.

Службен Webсајт: www.attackshark.com (Прampлинкот, ве молиме проверете го вистинскиот webсајт)
