1. Вовед
This manual provides essential instructions for the installation, operation, and maintenance of your WUPRO QuadraArc Electric Automatic Drop Projection Screen. This screen features Black Crystal Ambient Light Rejecting (ALR) technology, designed to deliver a superior viewing experience for 4K and 8K HD content, compatible with Short Throw (ST) and Long Throw (LT) projectors. Please read this manual thoroughly before use to ensure proper setup and optimal performance.

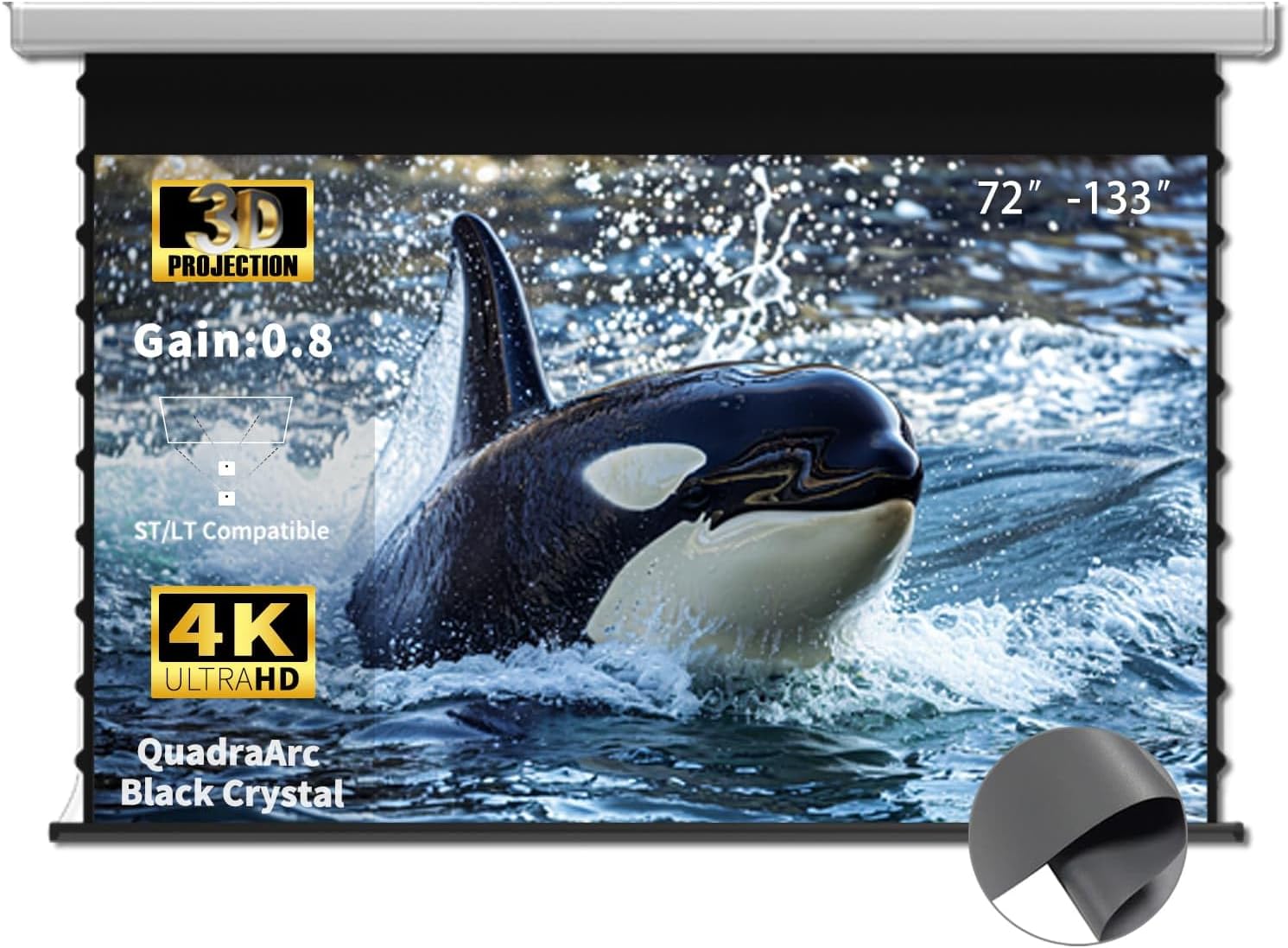

Image 1.1: WUPRO QuadraArc 110-inch projection screen in use, showcasing неговите визуелни способности.
2. Информации за безбедност
Ве молиме почитувајте ги следниве безбедносни мерки за да спречите оштетување на производот или телесна повреда:
- Ensure the screen is installed by at least two people due to its size and weight.
- Verify that the mounting surface (wall or ceiling) can support the screen's weight.
- Do not attempt to disassemble or modify the screen's motor or electrical components.
- Keep the screen away from direct heat sources, open flames, and excessive moisture.
- Исклучете го кабелот за напојување пред чистење или вршење на какво било одржување.
- Keep children and pets away from the screen during operation.
3. Содржина на пакетот
Внимателно распакувајте ја кутијата и проверете дали сите предмети се присутни:
- WUPRO QuadraArc Electric Automatic Drop Projection Screen
- Далечински управувач
- Кабел за напојување
- Mounting Brackets (for Wall/Ceiling)
- Инсталациски хардвер (шрафови, сидра)
- Упатство за употреба (овој документ)
4. Карактеристики
- Black Crystal ALR Screen: Features a gain of 0.8, enhancing image fullness and color vibrancy.
- Отфрлање на амбиентална светлина: Excellent rejection of ceiling ambient light (≥70%), allowing for clear viewing even in bright environments (1800 ANSI lumens or higher telephoto projectors recommended).
- Поддршка за висока дефиниција: Optimized for Full HD 4K/8K movie-like picture quality.
- Широк Viewагол: А 160 ° viewing angle ensures a broad field of view, suitable for various room layouts.
- Projector Compatibility: Designed for compatibility with both Short Throw (ST) and Long Throw (LT) projectors.
- Повеќе контролни опции: Includes remote control, wired control, and projector sync capabilities for convenience.
- Минималистички дизајн: White rectangular casing for easy integration into any decor.
Image 4.1: Key features of the WUPRO QuadraArc screen.
Image 4.2: Visual representation of Black Crystal screen benefits.
Image 4.3: Compatibility with ST/LT projectors.
Image 4.4: Explanation of 70% Ambient Light Rejection (ALR).
Слика 4.5: Илустрација на ширината од 160° viewинголен агол.
5. Поставување и инсталација
The WUPRO QuadraArc screen is designed for manual installation. Please follow these steps carefully. It is recommended that two people perform the installation.
5.1 Избор на локација
Select a flat, sturdy wall or ceiling area that can safely support the screen's weight. Ensure there is a power outlet nearby and sufficient space for the screen to fully extend.
5.2 Опции за монтирање
The screen supports both wall and ceiling mounting.
Image 5.1: Wall Mount and Ceiling Mount options.
5.3 Чекори за инсталација
- Мери и означи: Determine the desired position for the screen. Use a level to mark the drilling points for the mounting brackets on the wall or ceiling.
- Дупчете дупки: Drill pilot holes at the marked locations. Insert appropriate wall anchors if necessary.
- Прикачете загради: Securely fasten the mounting brackets to the wall or ceiling using the provided screws. Ensure they are level and firmly attached.
- Mount Screen: With assistance, carefully lift the projection screen and hook it onto the installed mounting brackets. Ensure the screen is securely seated in the brackets.
- Поврзете напојување: Plug the power cable into the screen and then into a power outlet.
6. Операција
Your WUPRO QuadraArc screen offers multiple ways to control its extension and retraction.
Image 6.1: Multiple control options for the screen.
Далечински управувач 6.1
Use the included remote control to operate the screen wirelessly.
- Прошири: Притиснете го ДОЛУ button to lower the screen.
- Повлечете: Притиснете го UP button to raise the screen.
- Стоп: Притиснете го СТОП button to pause the screen at any desired position.
6.2 жична контрола
The screen may also feature a wired control panel, typically located on the screen casing or a wall switch. The buttons function identically to the remote control (UP, DOWN, STOP).
6.3 Projector Sync
If your projector supports it, you can connect the screen to your projector for automatic synchronization. When the projector is turned on, the screen will automatically extend; when the projector is turned off, the screen will retract. Refer to your projector's manual for specific connection instructions for screen synchronization.
7. Одржување
Proper maintenance ensures the longevity and optimal performance of your projection screen.
7.1 Cleaning the Screen Surface
- Gently wipe the screen surface with a soft, lint-free cloth.
- За тврдокорни траги, лесно дampen the cloth with mild soap and water. Do not use harsh chemicals, abrasive cleaners, or excessive moisture.
- Avoid touching the screen surface with bare hands to prevent oil transfer.
7.2 Чистење на Casing
Избришете го екранот casing со сува или малку damp крпа за отстранување на прашина и нечистотија.
7.3 Општа нега
- Ensure the screen retracts fully when not in use to protect the surface.
- Avoid placing heavy objects on the screen casing.
- Regularly check mounting hardware for tightness.
8 Смена на проблеми
If you encounter issues with your projection screen, refer to the following common problems and solutions:
| Проблем | Можна причина | Решение |
|---|---|---|
| Screen does not extend/retract | No power; Remote control battery low; Motor malfunction | Check power connection; Replace remote batteries; Contact support if motor issue persists. |
| Screen stops midway | Obstruction; Limit switch setting; Power interruption | Remove any obstructions; Consult manual for limit switch adjustment (if applicable); Check power. |
| Квалитетот на сликата е слаб | Projector settings; Ambient light; Screen surface dirt | Adjust projector focus/resolution; Reduce ambient light; Clean screen surface as per maintenance section. |
| Далечинскиот управувач не работи | Batteries dead/incorrectly inserted; Remote out of range; Interference | Replace batteries, ensure correct polarity; Move closer to screen; Remove sources of interference. |
9. Спецификации
The following table outlines the technical specifications for the WUPRO QuadraArc 110-inch Electric Automatic Drop Projection Screen.
Image 9.1: Detailed dimensions and parameters for the QuadraArc screen series.
| Карактеристика | Детал |
|---|---|
| Бренд | ВУПРО |
| Модел | QuadraArc Electric Automatic Drop Projection Screen |
| Големина на екранот (дијагонала) | 110 инчи |
| Сооднос на аспект | 16:9 |
| Површина на екранот | Black Crystal ALR (Matte) |
| Добивка | 0.8 |
| Отфрлање на амбиентална светлина | ≥70% (ceiling light) |
| Viewинголен агол | 160° |
| Компатибилност | ST/LT Projectors, 4K/8K HD |
| Тип на монтирање | Монтирање на ѕид, монтажа на таван |
| Димензии на производот (Ш x В) | 95.86" x 53.89" (Display Area) |
| Должина на куќиштето (L1) | 2730 mm (for 110" screen) |
| Бруто Тежина | 22.4 kg (for 110" screen) |
10. Гаранција и поддршка
10.1 Гаранција за производот
WUPRO products are covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product for specific terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.
10.2 30-Day Price Protection
If the price of your WUPRO screen drops within 30 days of purchase on Amazon, you may be eligible for a refund of the difference. To claim, purchase the screen on Amazon, spot a lower price within 30 days, take a screenshot, and contact WUPRO customer support. This applies solely to Amazon store prices.
Image 10.1: Details on the 30-Day Price Protection policy.
10.3 Поддршка за корисници
For technical assistance, warranty claims, or any questions regarding your WUPRO product, please contact WUPRO customer support through the Amazon platform or visit the official WUPRO webсајт за информации за контакт.
