1. Вовед
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MOVA P20 Ultra Robot Vacuum Cleaner. Please read this manual thoroughly before using the product and retain it for future reference.
The MOVA P20 Ultra is designed to automate your home cleaning, offering advanced features such as 75°C hot water mop cleaning, MopExtend technology, and powerful 12,800Pa suction. It is engineered to handle various floor types, including hardwood, tile, and low-pile carpet.
2. Информации за безбедност
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This device is for indoor household use only.
- Не дозволувајте децата да си играат со роботот. Надгледувајте ги децата и домашните миленици кога роботот работи.
- Осигурајте се дека адаптерот за напојување е волтtage е компатибилен со вашето локално напојување.
- Не го користете роботот во влажни средини или во близина на вода.
- Чувајте ги косата, широката облека, прстите и сите делови од телото подалеку од отворите и подвижните делови.
- Не го користете роботот за собирање големи предмети, остри предмети или материјали што горат/чадат.
- Before cleaning or performing maintenance, ensure the robot is turned off and unplugged from the charging base.
- Користете само додатоци и додатоци наведени од производителот.
3. Содржина на пакетот
Carefully unpack your MOVA P20 Ultra and check that all items are present. If any items are missing or damaged, please contact customer support.
- MOVA P20 Ultra роботска правосмукалка
- Базна станица
- HyperStream Detangling Brush (pre-installed or separate accessory)
- Dust Bag (one pre-installed, additional may be included)
- Water Tank (for clean water and dirty water)
- Mop Pads (set of two)
- Cleaning Pad (for base station washboard)
- Кабел за напојување
- Упатство за употреба (овој документ)
4. Производот завршиview
Familiarize yourself with the components of your robot vacuum and base station.

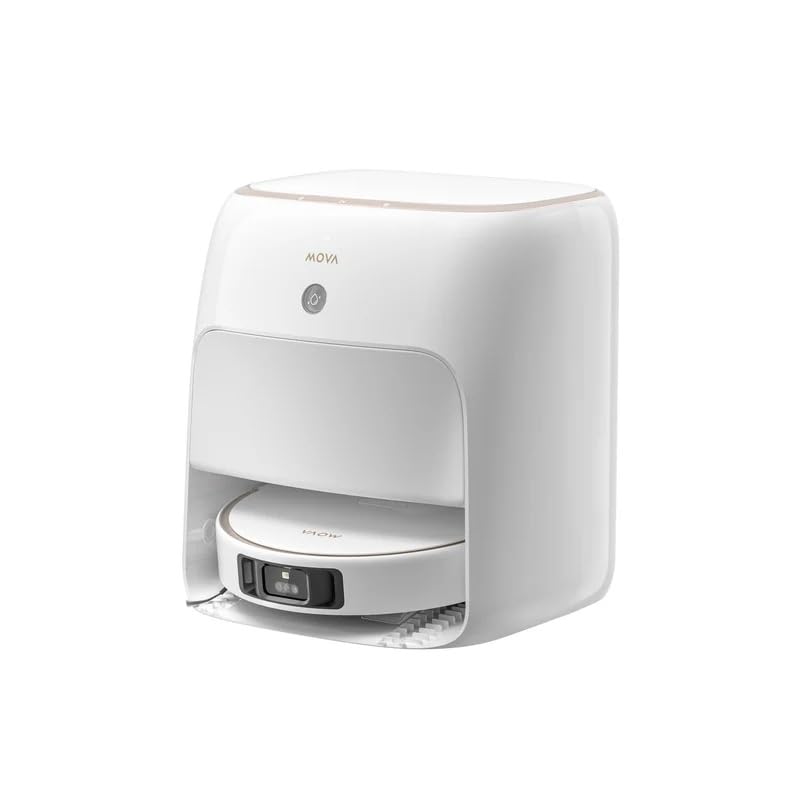

Image: The MOVA P20 Ultra Robot Vacuum Cleaner docked in its base station. The robot is round and white, with sensors visible on top. The base station is a larger white unit designed to automatically empty dust, refill water, and clean the mop pads.
Карактеристики на вакуум на робот:
- MopExtend RoboSwing: Exclusive auto mop extension and retraction for thorough cleaning in corners and under low furniture.
- 12,800Pa моќност на вшмукување: Provides strong vacuuming for effective dirt, dust, and hair removal.
- HyperStream Detangling Brush: Designed to prevent hair tangles, ensuring consistent cleaning performance.
- Navigation Mapping Sensor: Utilizes Dual-Line Laser, 3D Structured Light + AI for precise navigation and 3D mapping.
- Препознавање и избегнување на објекти: Advanced sensors help the robot identify and avoid obstacles.
Карактеристики на базната станица:
- Auto Self-Cleaning Washboard 2.0: Cleans the mop pads and washboard with 75°C hot water.
- Сушење на топол воздух: Dries mop pads after cleaning to prevent odors and mildew.
- Auto Dust-Emptying: Automatically empties the robot's dustbin into a 2.5L dust bag, providing up to 75 days of hands-free cleaning.
- Auto Refilling of Water & Detergent: Automatically refills the robot's water tank and adds Mova cleaning solution for effective mopping.
- 99.99% End-to-End Sterilisation: Helps eliminate mold and odors in the dust bag and water tank.
5. Поставување
5.1 Отпакување и поставување
- Remove all packaging materials and protective films from the robot and base station.
- Place the base station on a hard, level surface against a wall. Ensure there is at least 0.5 meters of clear space on both sides and 1.5 meters in front of the base station for optimal robot navigation.
- Plug the power cord into the base station and then into a wall outlet. Ensure the power indicator on the base station illuminates.
5.2 Почетно полнење
Place the robot onto the charging contacts of the base station. Ensure the robot is properly aligned and the charging indicator on the robot or base station confirms charging has begun. For first-time use, fully charge the robot before operation, which typically takes several hours.
5.3 Поврзување со апликации
- Download the official MOVA app from your smartphone's app store (iOS or Android).
- Отворете ја апликацијата и креирајте сметка или најавете се.
- Follow the in-app instructions to add your MOVA P20 Ultra. This typically involves connecting the robot to your home Wi-Fi network (2.4GHz only).
- Откако ќе се поврзете, апликацијата ќе ве води низ почетното мапирање на вашиот дом.
6. Упатства за работа
The MOVA P20 Ultra offers various cleaning modes and smart features for a customized cleaning experience.
6.1 Започнување на циклус на чистење
- Преку робот: Press the power button on the robot once to start a standard cleaning cycle. Press again to pause.
- Преку апликација: Open the MOVA app, select your device, and tap "Start Cleaning". You can choose specific rooms, zones, or cleaning modes (e.g., vacuum only, mop only, vacuum & mop).
6.2 Режими и карактеристики на чистење
- Правосмукалка: The robot provides 12,800Pa suction power for effective dry cleaning. It automatically boosts suction on carpets.
- Чистење: The MopExtend RoboSwing feature ensures thorough mopping, reaching into corners and along edges. The base station supplies 75°C hot water for effective stain removal.
- Закажано чистење: Use the MOVA app to set up daily or weekly cleaning schedules.
- Гласовна контрола: Integrate your robot with Google Assistant, Amazon Alexa, or Siri for hands-free control. Refer to the app for specific voice commands.
- Remote Video Supervision: Utilize the app for remote monitoring of your home via the robot's camera.
7. Одржување
Regular maintenance ensures optimal performance and extends the lifespan of your MOVA P20 Ultra.
7.1 Одржување на роботот
- HyperStream Detangling Brush: Periodically check the main brush for tangled hair or debris. Use the included cleaning tool to remove any obstructions.
- Странични четки: Редовно проверувајте и чистете ги страничните четки. Заменете ги доколку се истрошени или оштетени.
- Filters (Cloth, Foam): The robot's internal filters should be cleaned weekly and replaced every 3-6 months, depending on usage. Tap out dust and rinse if washable (check specific instructions in the app).
- Сензори: Wipe all sensors (cliff sensors, wall sensors, charging contacts) with a clean, dry cloth to ensure proper function.
7.2 Одржување на базната станица
- Торба за прашина: The 2.5L dust bag in the base station needs replacement approximately every 75 days, or when the app indicates it is full.
- Резервоари за вода: Regularly empty the dirty water tank and refill the clean water tank. Clean both tanks to prevent mold and odors.
- Self-Cleaning Washboard 2.0: The base station automatically cleans its washboard. However, occasional manual cleaning of the washboard and cleaning pad may be necessary to remove stubborn residue.
- Влошки за бришење: The robot's mop pads are automatically cleaned and dried by the base station. Replace mop pads every 1-3 months depending on usage and wear.
8 Смена на проблеми
If you encounter issues with your MOVA P20 Ultra, refer to the following common problems and solutions. For more detailed troubleshooting, consult the MOVA app or customer support.
| Проблем | Можна причина | Решение |
|---|---|---|
| Роботот не се стартува ниту реагира. | Слаба батерија; прекинувачот за напојување е исклучен; роботот е заглавен. | Charge the robot; ensure power switch is ON; clear any obstructions. |
| Лоши перформанси на чистење. | Full dustbin; clogged brushes/filters; worn mop pads. | Empty dustbin; clean/replace brushes and filters; replace mop pads. |
| Роботот не може да се врати на базната станица. | Base station obstructed; robot too far; dirty charging contacts. | Clear area around base station; manually place robot on base; clean charging contacts. |
| Проблеми со поврзувањето со апликацијата. | Неточна лозинка за Wi-Fi; Wi-Fi мрежа од 5 GHz; роботот е предалеку од рутерот. | Verify Wi-Fi password; ensure 2.4GHz network; move robot closer to router or reset Wi-Fi. |
9. Спецификации
| Бренд | Мова |
| Име на моделот | П20 Ултра |
| Број на дел | MV-P20U+EXW-1Y |
| Димензии на роботот (Д x Ш x В) | 35 x 35 x 10.8 cm |
| Димензии на базната станица (Д x Ш x В) | 39.6 x 41.5 x 45.7 cm |
| Моќ на вшмукување | 12,800 Па |
| Water Tank Capacity (Base Station) | 4.5L (Clean Water) / 4L (Dirty Water) |
| Капацитет на вреќа за прашина (базна станица) | 2.5L (Up to 75 Days) |
| Mop Raising Height | 10.5 мм |
| Температура за чистење на крпа | 75°C топла вода |
| Систем за навигација | Dual-Line Laser, 3D Structured Light + AI, 3D Mapping |
| Object Recognition & Avoidance | Да |
| Поврзување | Wi-Fi (2.4GHz), Smartphone App |
| Компатибилност со гласовен асистент | Google Assistant, Amazon Alexa, Siri |
| Препорака за површина | Hardwood, Tile, Low-pile Carpet |
| Извор на енергија | Напојува со батерија |
10. Гаранција и поддршка
Your MOVA P20 Ultra Robot Vacuum Cleaner comes with a 2-годишна локална гаранција. This warranty covers manufacturing defects and ensures your product performs as expected under normal use. Please retain your proof of purchase for warranty claims.
For technical support, warranty claims, or further assistance, please contact MOVA customer service through the official MOVA app or website. Our support team is available to help you with any questions or issues you may encounter.
