Voktta USB Rechargeable Soldering Iron Instruction Manual

1. Информации за безбедност

Please read all safety instructions carefully before using the Voktta USB Rechargeable Soldering Iron. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Високи температури: The soldering iron tip reaches very high temperatures (up to 450°C / 842°F). Avoid direct contact with the tip to prevent burns.
• Вентилација: Use the soldering iron in a well-ventilated area to avoid inhaling fumes produced during soldering.
• Заштита на очите: Always wear safety glasses to protect your eyes from solder splashes or fumes.
• Да се ​​чува подалеку од деца: Овој производ не е играчка. Чувајте го подалеку од дофат на деца и неовластени лица.
• Proper Stand Usage: Always place the hot soldering iron in its designated stand when not in use to prevent accidental contact or damage to surfaces.
• Исклучено: Disconnect the power and allow the iron to cool completely before cleaning, storing, or changing tips.
• Запаливи материјали: Држете ги запаливите материјали подалеку од местото на лемење.
• Безбедност на батеријата: Do not expose the battery to extreme temperatures or disassemble it. Use only the provided charging cable.

2. Производот завршиview

The Voktta USB Rechargeable Soldering Iron is a portable and versatile tool designed for various electronic repair and DIY projects. It features an adjustable temperature range, quick heating, and a built-in battery for cordless operation.

Клучни карактеристики:

• Прилагодлива температура: Temperature range of 200-450°C (392-842°F), switchable between Celsius and Fahrenheit.
• Брзо загревање: Heats up in approximately 10 seconds and reaches maximum temperature in about 30 seconds.
• LCD дисплеј: High-resolution screen displays current temperature status.
• Безжична работа: Built-in 800 mAh battery provides approximately 30 minutes of continuous use after a 1.5-hour charge via USB-C.
• Ергономски дизајн: Features a non-slip, heat-resistant handle for comfortable and safe use.
• Ceramic Heating Core: Ensures stable and efficient heating.

Содржина на пакетот:

• USB Electric Soldering Iron x 1
• Soldering Tip x 3 (various types)
• Rosin x 1
• Soldering Iron Holder (with sponge) x 1
• Кабел за полнење USB од тип C x 1
• Soldering Wire x 1
• Toolbox x 1

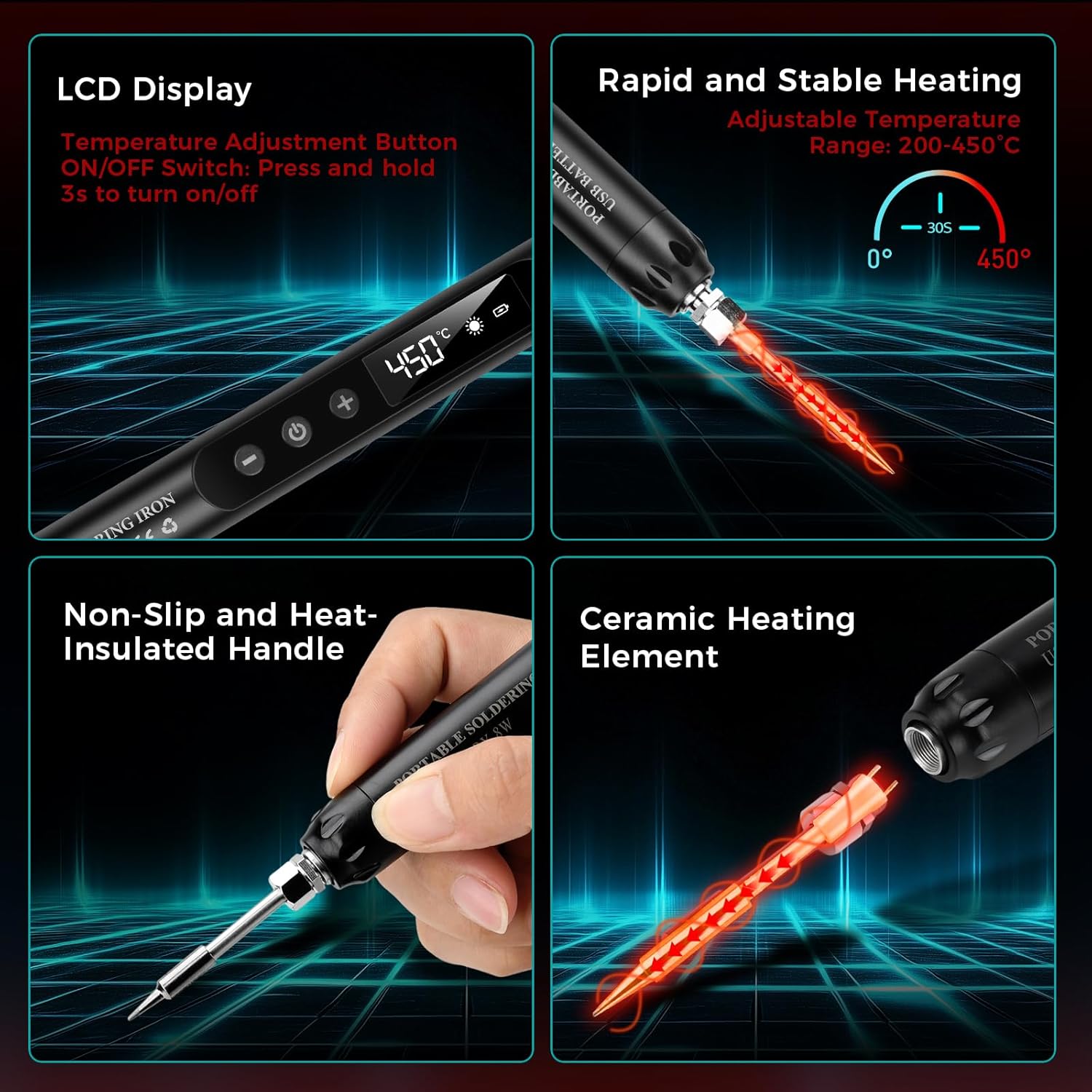

Слика: Надview of the soldering iron's key features including the LCD display, rapid heating, non-slip handle, and ceramic heating element.

Слика: Прamples of common applications for the soldering iron, such as repairing circuit boards, jewelry, and other small electronic components.

3. Поставување

3.1 Почетно полнење

Before first use, fully charge the soldering iron. Connect the provided USB Type-C charging cable to the soldering iron's charging port and to a compatible USB power source (e.g., wall adapter, computer USB port, power bank).

• A црвено светло indicates that the device is charging.
• A зелено светло покажува дека батеријата е целосно наполнета.
• Charging typically takes about 1.5 hours.

Image: The soldering iron connected to a USB power source, illustrating the charging indicator lights (red for charging, green for fully charged).

3.2 Attaching a Soldering Tip

Ensure the soldering iron is cool and powered off before changing tips. Carefully screw the desired soldering tip onto the heating element. Do not overtighten.

3.3 Preparing the Work Area

• Ensure your workspace is clean, well-lit, and well-ventilated.
• Place the soldering iron stand on a stable, heat-resistant surface.
• Moisten the sponge in the soldering iron holder with a small amount of water. This sponge is used for cleaning the tip.
• Have your solder wire, rosin, and components ready.

4. Упатства за работа

4.1 Вклучување/исклучување

To power on the soldering iron, press and hold the power button for approximately 3 seconds until the LCD screen illuminates. To power off, press and hold the power button again for 3 seconds.

4.2 Прилагодување на температурата

Once powered on, use the '+' and '-' buttons to adjust the desired temperature. The temperature range is 200-450°C (392-842°F). The LCD screen will display the current temperature.

Image: The soldering iron's LCD screen displaying the temperature and controls for adjustment and unit conversion.

4.3 Префрлување на температурни единици

The soldering iron supports both Celsius (°C) and Fahrenheit (°F). Refer to the product's specific instructions or button labels for switching between these units, typically by a short press of a dedicated button or a combination of temperature adjustment buttons.

4.4 Процес на лемење

Follow these steps for effective soldering:

1. Moisten the Sponge: Ensure the cleaning sponge is damp.
2. Вклучување: Turn on the soldering iron and set the desired temperature. Allow it to heat up.
3. Apply Rosin Flux: If necessary, apply a small amount of rosin flux to the components or PCB pads to improve solder flow.
4. Загрејте го зглобот: Touch the hot soldering iron tip to both the component lead and the PCB pad simultaneously. Heat them for a few seconds.
5. Примени лемење: While heating, touch the solder wire to the heated joint (not directly to the iron tip). The solder should melt and flow smoothly around the joint.
6. Remove Solder and Iron: Once enough solder has flowed, remove the solder wire first, then remove the soldering iron. Allow the joint to cool naturally without disturbance.
7. Исчистете го советот: Wipe the hot soldering iron tip on the moist sponge to remove excess solder and oxidation.
8. Исклучено: When finished, turn off the soldering iron and place it securely in its stand to cool.

Image: A step-by-step visual guide demonstrating the proper soldering technique.

5. Одржување

5.1 Чистење на врвот за лемење

Regular cleaning of the soldering tip is crucial for optimal performance and longevity. Wipe the hot tip on a moist sponge frequently during use to remove excess solder and oxidation. For stubborn residue, use a brass wire cleaner (not included) or specialized tip cleaner.

5.2 Replacing Soldering Tips

Ensure the iron is cool and unplugged. Unscrew the old tip and screw in a new one. Only use compatible replacement tips.

5.3 Грижа и складирање на батеријата

• Избегнувајте често целосно празнење на батеријата. Полнете ја кога индикаторот за батеријата е низок.
• Store the soldering iron in a cool, dry place when not in use, preferably in its toolbox.
• If storing for extended periods, charge the battery to about 50% to prolong its lifespan.

6 Смена на проблеми

• Пеглата не се загрева:
  • Check if the iron is powered on (LCD screen should be lit).
  • Проверете дали батеријата е наполнета. Поврзете ја со извор на енергија и проверете го индикаторот за полнење.
  • Verify the soldering tip is securely attached.
• Solder Not Melting or Poor Joints:
  • Зголемете ја поставената температура.
  • Clean the soldering tip thoroughly; a dirty tip cannot transfer heat effectively.
  • Ensure you are heating both the component lead and the pad, not just the solder.
  • Use fresh solder wire.
• Батеријата не се полни:
  • Check the USB Type-C cable for damage and ensure it's properly connected.
  • Пробајте друг USB извор на напојување или ѕиден адаптер.

7. Спецификации

8. Гаранција и поддршка

This Voktta product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, warranty claims, or replacement parts, please contact the retailer or manufacturer directly. Keep your proof of purchase for warranty validation.
