1. Вовед
Thank you for choosing the Havells Elio Plus BLDC Ceiling Fan. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new fan. Please read these instructions carefully before use and retain them for future reference.

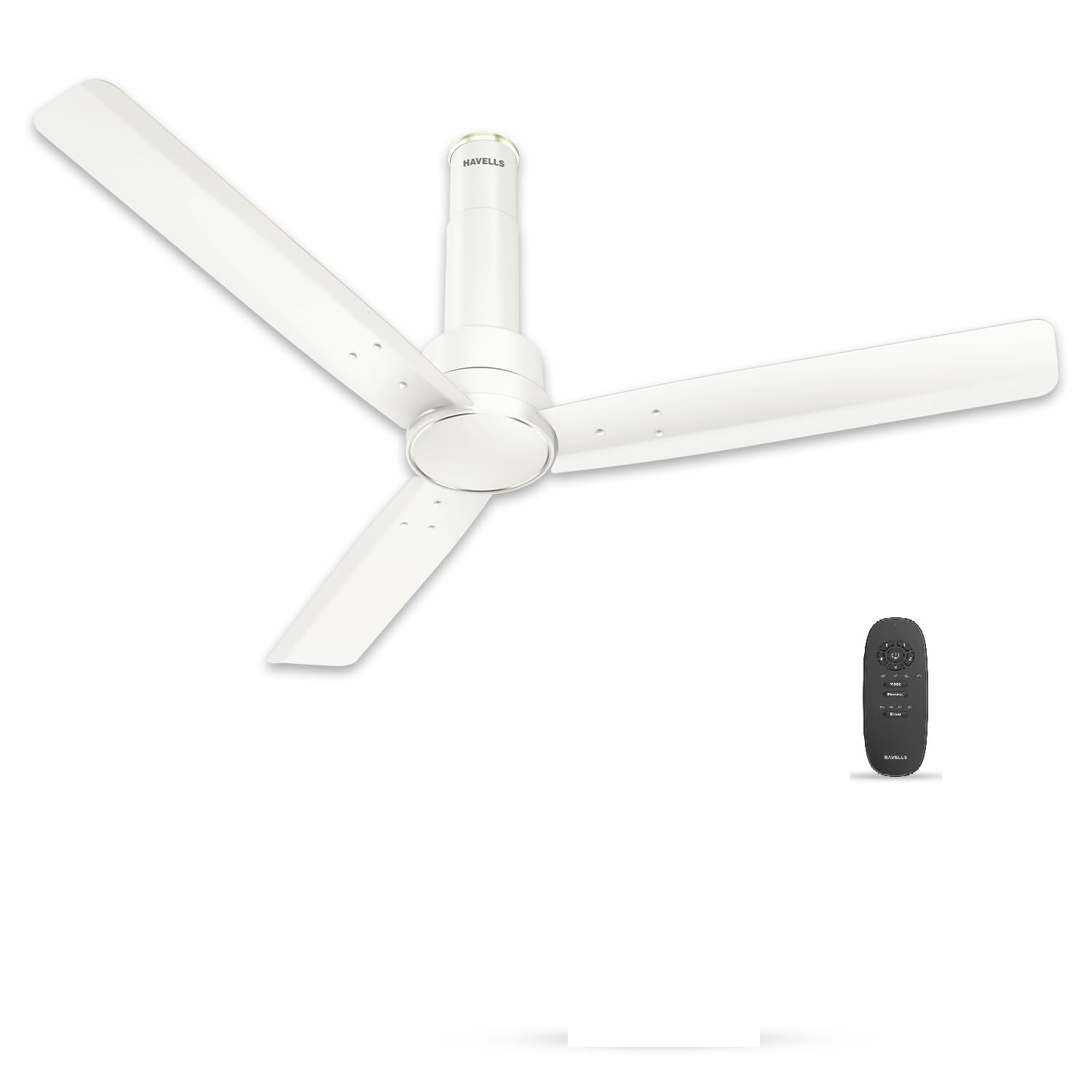

Image 1: Havells Elio Plus BLDC Ceiling Fan (Pearl White) with remote control.
2. Карактеристики на производот
The Havells Elio Plus BLDC Ceiling Fan is engineered for superior performance, energy efficiency, and user convenience. Key features include:
- BLDC Motor Technology: Equipped with a Brushless DC (BLDC) motor, this fan offers significant energy savings, consuming up to 65% less electricity than conventional fans.
- 5-Star Rating: Certified for high energy efficiency, ensuring lower electricity bills.
- Remote and Regulator Compatible: Provides flexible control options, allowing operation via both the included smart RF remote and a standard wall regulator.
- Sleek and Minimalistic Design: Modern aesthetics designed to complement contemporary interiors.
- 100% Copper Wire Motor: Ensures durability, efficiency, and long-lasting performance.
- High Air Delivery: Aerodynamic blades deliver 225 Cubic Meters Per Minute (CMM) of air for powerful and even airflow.
- Reverse Rotation Mode: Circulates warm air downwards during winter, providing year-round comfort.
- Smart RF Remote Control: Offers effortless control with 360-degree signal sensing, eliminating the need for direct pointing.
- Повеќе режими на работа: Includes Boost, Mop, Sleep, and Breeze modes for personalized comfort.
- Функција на тајмер: Поставете го вентилаторот автоматски да се исклучува по 2, 4, 6 или 8 часа.
- Telescopic Canopy: Adaptable design that fits various ceiling heights, including low or false ceilings, for a neat installation.
- Reliable Speed at Low Voltage: Maintains stable speed even with voltage fluctuations as low as 140V.
- Dust-Resistant Coating: (Applicable on glossy variants) Helps keep the fan clean with minimal effort.
- ISI Certified: Ensures trusted safety and quality standards.
Image 2: Energy Efficiency Label and Power Savings Guide for the Havells Elio Plus BLDC Ceiling Fan.
Image 3: Illustration of the fan's internal components, highlighting the 100% copper motor and other features like dust-resistant coating, 5-star rating, and ISI mark.
3. Водич за инсталација
For your safety and optimal performance, professional installation by a qualified electrician is highly recommended. Ensure the power supply is disconnected before beginning installation.
3.1 Проверка на компоненти
Before installation, verify that all components listed in the 'What's in the Box' section are present and undamaged.
3.2 Монтирање на вентилаторот
- Securely attach the mounting bracket to a suitable ceiling joist or support structure.
- Assemble the downrod and canopy set. The telescopic canopy allows adjustment for various ceiling heights.
- Carefully lift the fan motor assembly and attach it to the mounting bracket.

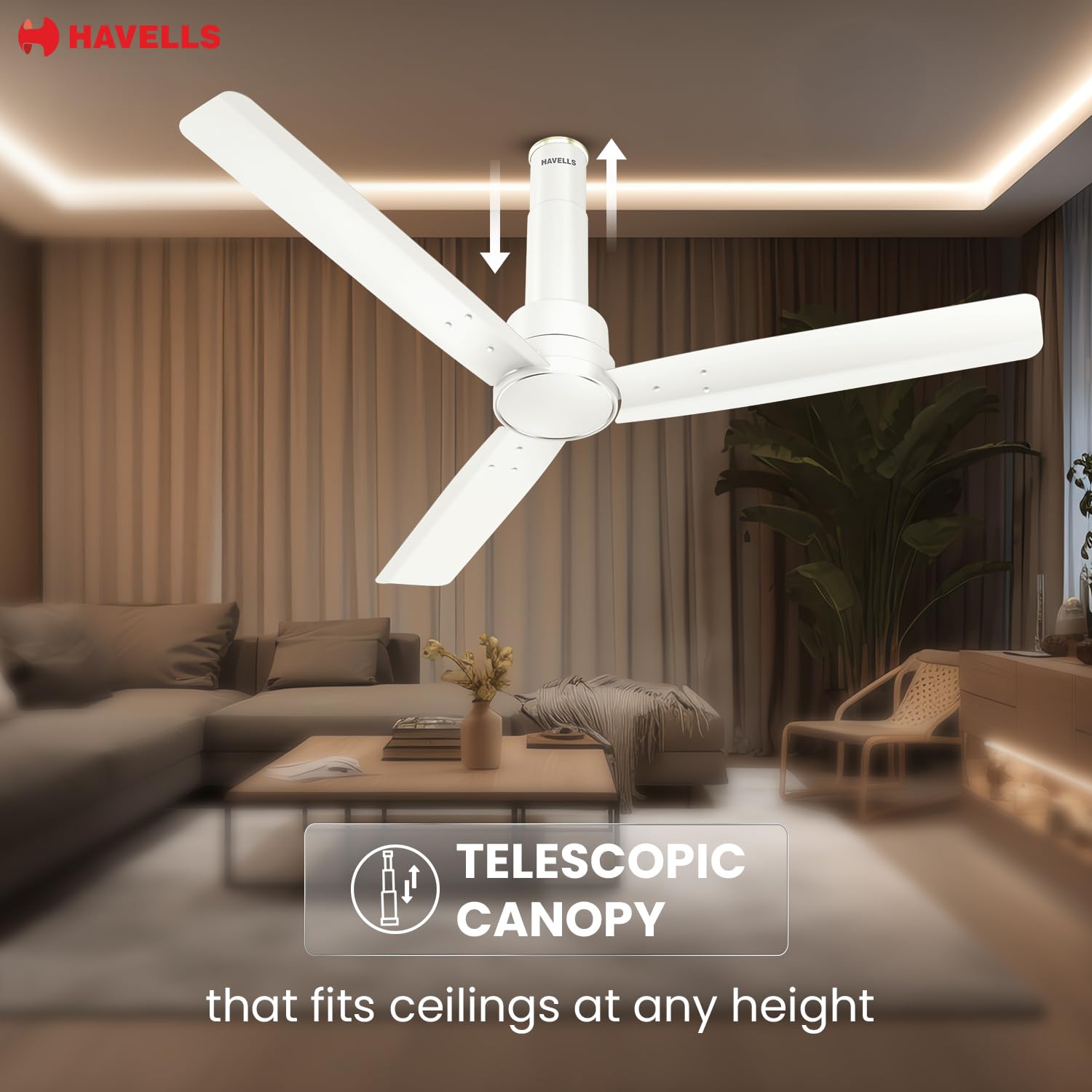

Image 4: The telescopic canopy feature of the Havells Elio Plus BLDC Ceiling Fan, illustrating its adaptability to different ceiling heights.
3.3 Приклучоци за жици
Поврзете ги електричните жици на вентилаторот со домашните инсталации во согласност со локалните електрични кодови. Осигурајте се дека сите врски се безбедни и изолирани.
3.4 Прикачување на сечила
Прикачете ги трите лопатки на вентилаторот на куќиштето на моторот користејќи ги приложените завртки. Осигурајте се дека се цврсто прицврстени.
4. Упатства за работа
The Havells Elio Plus BLDC Ceiling Fan can be operated using its smart RF remote control or a compatible wall regulator.
4.1 Функции на далечинскиот управувач
The smart RF remote allows for convenient control from anywhere in the room without direct pointing.
Image 5: The RF Remote Control for the Havells Elio Plus BLDC Ceiling Fan, showing buttons for speed, modes, and timer settings.
- Вклучување/исклучување: Притиснете го копчето за вклучување за да го вклучите или исклучите вентилаторот.
- Прилагодување на брзината: Use the speed buttons to cycle through the 5 available speed levels.
- Избор на режим: Press the 'Mode' button to select from the following:
- Режим на засилување: Provides maximum airflow for quick cooling.
- Режим за чистење: Optimized airflow to assist in drying floors after mopping.
- Режим на спиење: Gradually reduces fan speed over time for comfortable sleep.
- Режим на бриз: Simulates natural breeze with varying speeds.
- Обратна ротација: Activate this mode to change the direction of blade rotation, useful for circulating warm air in winter.
- Поставување тајмер: Use the 'Timer' button to set the fan to operate for 2, 4, 6, or 8 hours before automatically turning off.
Image 6: Visual representation of the personalized comfort modes (Boost, Mop, Sleep, Breeze) available on the Havells Elio Plus BLDC Ceiling Fan.
Image 7: Illustration of the reverse rotation feature, showing how the fan circulates warm air in winter.
4.2 Regulator Operation
The Elio Plus BLDC fan is compatible with standard wall regulators. If using a regulator, ensure it is set to the maximum speed for optimal performance when using the remote control. The fan will respond to both the regulator and remote, offering seamless operation.
Image 8: Depiction of the fan's compatibility with both remote control and a traditional wall regulator for versatile operation.
5. Одржување
Редовното одржување обезбедува долготрајност и ефикасно работење на вашиот вентилатор.
5.1 Чистење
- Секогаш исклучувајте го напојувањето пред чистење.
- Избришете ги лопатките на вентилаторот и куќиштето на моторот со мека,amp крпа. Избегнувајте користење абразивни средства за чистење или растворувачи.
- For glossy variants, the dust-resistant coating simplifies cleaning.
5.2 Инспекција
- Периодично проверувајте ги сите завртки и сврзувачки елементи за затегнатост.
- Ensure the blades are not bent or damaged, as this can cause imbalance and noise.
6 Смена на проблеми
Доколку наидете на било какви проблеми, погледнете ги следните вообичаени проблеми и решенија:
| Проблем | Можна причина | Решение |
|---|---|---|
| Вентилаторот не се вклучува | No power supply; loose wiring; remote battery low | Check power, wiring connections; replace remote batteries. |
| Вентилаторот прави необичен шум | Loose screws; unbalanced blades; motor issue | Tighten all screws; check blade balance; contact service center if motor issue suspected. |
| Далечинскиот управувач не реагира | Remote battery low; obstruction; out of range | Replace remote batteries; ensure no obstruction; operate within range. |
| Низок проток на воздух | Incorrect speed setting; dirty blades | Increase speed; clean blades. |
If the problem persists after attempting these solutions, please contact Havells customer support.
7. Спецификации
Detailed technical specifications for the Havells Elio Plus BLDC Ceiling Fan:
| Спецификација | Вредност |
|---|---|
| Бренд | Хавелс |
| Име на моделот | ELIO PLUS |
| Број на модел на ставка | FHCIP5SPWT48 |
| Боја | Бисер бело |
| Дизајн на електричен вентилатор | Таван фан |
| Извор на енергија | Електричен со кабел |
| Димензии на производот | 22.5D x 27.2W x 24H сантиметри |
| Ватtage | 28 вати |
| Број на сечила | 3 |
| Капацитет на проток на воздух | 225 Cubic Meters Per Minute |
| Должина на сечилото | 1200 милиметри |
| Брзина | 350 вртежи во минута |
| Voltage | 230 волти |
| Тежина на ставката | 3700 Grams (3 kg 700 g) |
| Внатрешна/надворешна употреба | Затворен |
| Контролен метод | Далечински |
| Ефикасност | Highly Efficient (5 Star Rating) |
| Тип на мотор | DC мотор без четки |
| Тип на инсталација | Монтирање на таванот |
| Спецификација исполнет | Energy Star, ISI |
8. Што има во кутијата
Пакетот на производи ги вклучува следните ставки:
- 1 N fan motor
- 1 N canopy set
- 1 N downrod
- 1 N shackle assembly kit
- 1 N set of 3 N fan blades
- 1 N Smart RF Remote Control
9. Гаранција и поддршка
Your Havells Elio Plus BLDC Ceiling Fan comes with a standard 2 година гаранција. This warranty can be extended by an additional 1 година upon registration on the official Havells website. Havells provides a robust Pan India service network with over 900 service centers. Service requests can be conveniently placed through the Havells One app for prompt assistance.
For further information or assistance, please visit the Havells Store on Amazon or contact Havells customer care at 1800110303 or 18001031313.
10. Производот завршиview Видео
Watch this official video for a visual guide to the features and benefits of the Havells Elio Plus BLDC Ceiling Fan.
Видео 1: Официјално видео претставување на производотasing the Havells Elio Plus BLDC Ceiling Fan's features, including remote and regulator compatibility, various modes, telescopic canopy, and energy efficiency.
