Scheppach GS70 Electric Plant Grinder User Manual

1. Инструкции за безбедност

Always read and understand all safety warnings and instructions before operating the Scheppach GS70 Electric Plant Grinder. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

Општа безбедност

• Безбедност на работната површина: Одржувајте го работното место чисто и добро осветлено. Нередните или темните места предизвикуваат несреќи. Не ракувајте со електрични алати во експлозивни атмосфери, како на пример во присуство на запаливи течности, гасови или прашина.
• Електрична безбедност: Приклучоците за електричниот алат мора да одговараат на штекерот. Никогаш не го модифицирајте приклучокот на никаков начин. Не го злоупотребувајте кабелот. Никогаш не го користете кабелот за носење, влечење или исклучување на електричниот алат. Држете го кабелот подалеку од топлина, масло, остри рабови или подвижни делови.
• Лична безбедност: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Специфична безбедност за машината: Ensure the collection bin is correctly installed and locked before operation. The machine features a safety interlock that prevents operation if the bin is not secured. Do not feed foreign objects like metal, stones, or plastic into the shredder.

Image: Protected on/off switch with reverse gear and reset button for overload protection. This switch ensures safe operation and allows for quick shutdown or reset in case of an overload.

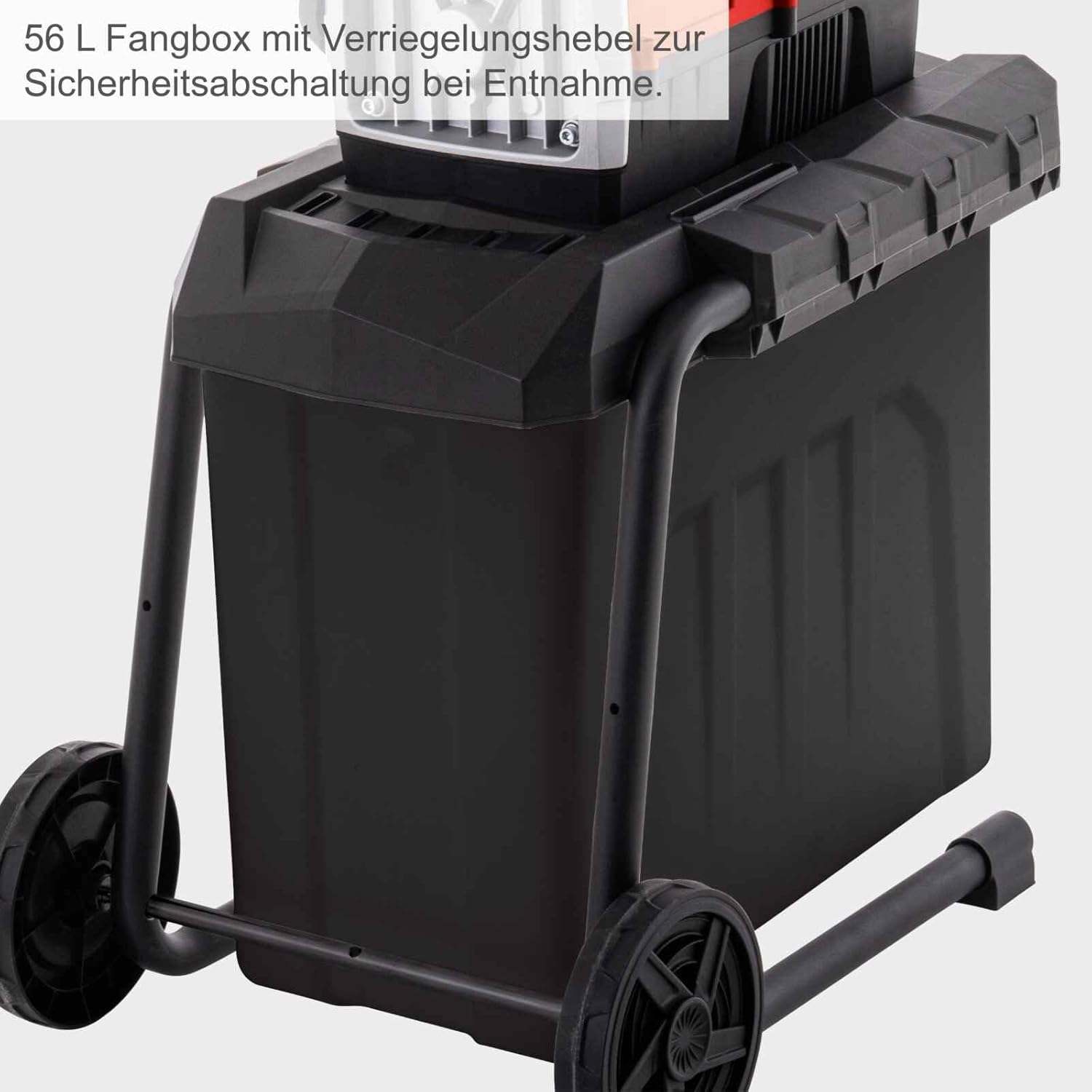

Image: The 56 L collection box features a locking lever that activates a safety shutdown when the box is removed, preventing accidental operation.

2. Производот завршиview

The Scheppach GS70 is an electric plant grinder designed for shredding garden waste such as branches, shrubs, and other plant material. It features a powerful motor, an efficient cutting system, and a large collection bin for convenience.

Клучни карактеристики:

• Powerful 2800 W / 230 V motor.
• Cutting thickness up to 42 mm branch diameter.
• 8 durable steel scarifying knives with Ø 87 mm.
• Low noise cutting roller system with continuously adjustable pressure plate.
• Clog return function and soft start for smooth operation.
• Heavy-duty 56 L collection bin with safety locking lever.
• Chassis with large wheels and carry handle for easy transport.

Image: Key specifications diagram illustrating a maximum branch diameter of 42 mm, a cutting speed of 60 min⁻¹, 87 mm knife rollers, and a powerful 2800 W motor.

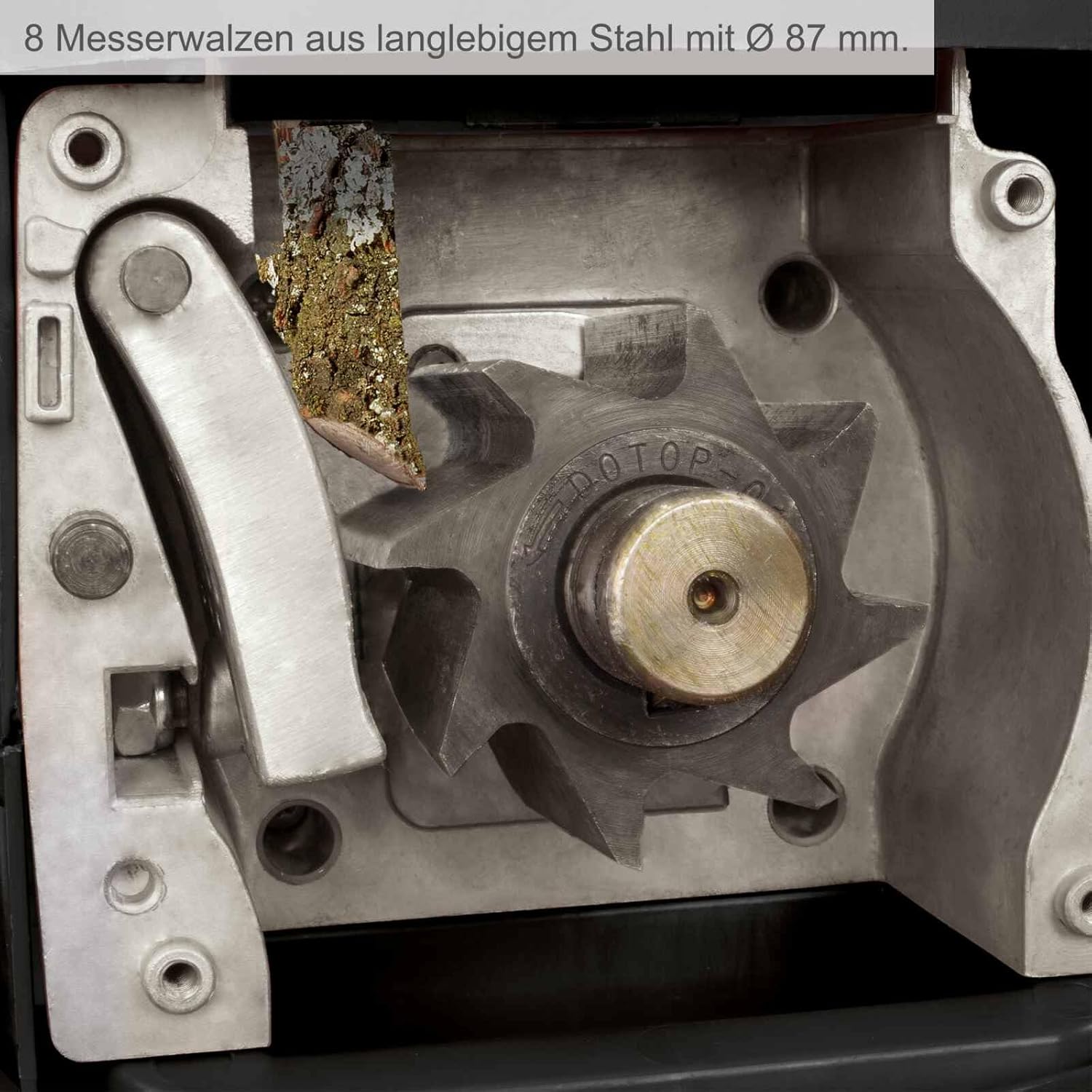

Слика: Крупен план view of the shredder's internal mechanism, highlighting the 8 durable steel knife rollers with a diameter of 87 mm, designed for efficient shredding.

3. Поставување и склопување

Before first use, ensure all components are present and the unit is correctly assembled.

Отпакување:

1. Внимателно отстранете ги сите делови од пакувањето.
2. Check the contents against the packing list to ensure all parts are included and undamaged.

Собрание:

1. Attach the chassis with the large wheels to the main unit as per the diagrams in the full manual (if applicable). Ensure all fasteners are securely tightened.
2. Install the 56 L collection bin. Make sure it clicks into place and the safety locking lever is engaged. The machine will not operate if the collection bin is not correctly installed.
3. Ensure the pusher is readily accessible for safe feeding of materials.

Поставување:

• Place the shredder on a firm, level surface to prevent tipping during operation.
• Ensure adequate space around the machine for safe operation and material handling.

Image: The Scheppach GS70 Electric Plant Grinder fully assembled, showing the main unit, collection bin, and transport wheels.

4. Упатства за работа

Follow these steps for safe and effective operation of your plant grinder.

Стартување на машината:

1. Поврзете го кабелот за напојување во соодветен штекер (230V).
2. Ensure the collection bin is securely in place.
3. Press the green 'ON' button. The machine features a soft start function for a smooth power-up.

Материјал за хранење:

1. Only feed suitable garden waste such as branches, shrubs, and plant material. Do not feed metal, stones, plastic, or other hard objects.
2. The maximum branch diameter is 42 mm. Do not attempt to shred larger branches.
3. Feed material gradually into the hopper. The machine has an automatic feed mechanism.
4. Use the provided pusher to guide material into the shredder, especially for shorter pieces, to keep hands away from the cutting mechanism.

Image: Visual representation of the 56 L collection bin capacity, the soft start function, and examples of suitable materials like leaves and branches for shredding.

Image: The pusher tool, designed for safely guiding garden waste into the shredder's feeding opening, ensuring hands remain clear of the cutting mechanism.

Запирање на машината:

• To stop the machine, press the red 'OFF' button.
• In case of a clog or overload, the machine may stop automatically. Refer to the troubleshooting section.
• Always unplug the machine from the power supply before performing any maintenance or clearing clogs.

5. Одржување

Regular maintenance ensures the longevity and optimal performance of your Scheppach GS70.

Чистење:

• По секоја употреба, исклучете ја машината од струја и оставете ја да се олади.
• Исчистете ја надворешноста на машината со рекламаamp крпа. Не користете груби хемикалии или абразивни средства за чистење.
• Empty and clean the collection bin.
• Carefully remove any accumulated debris from the feeding chute and around the cutting mechanism using a brush or a non-metallic tool. Ensure the machine is unplugged.

Инспекција на сечилото:

• Periodically inspect the 8 steel scarifying knives for wear or damage.
• If blades become dull or damaged, they may need to be sharpened or replaced by a qualified service technician.

Складирање:

• Store the plant grinder in a dry, secure location, out of reach of children.
• Protect the machine from extreme temperatures and moisture.

6 Смена на проблеми

This section addresses common issues you might encounter with your Scheppach GS70.

7. Технички спецификации

8. Гаранција и поддршка

For warranty information, service, or technical support, please refer to the warranty card included with your product or contact Scheppach customer service directly. Keep your proof of purchase for any warranty claims.

Производител: Шепач

Webсајт: Please visit the official Scheppach website for contact details and further support.
