VASTEND VS-9A 9-Inch Magnetic Solar Wireless Backup Camera System Instruction Manual

Вовед

This manual provides detailed instructions for the installation, operation, and maintenance of your VASTEND VS-9A Magnetic Solar Wireless Backup Camera System. Designed for RVs, trucks, vans, and buses, this system offers enhanced visibility and safety with its HD 1080P display, powerful magnetic solar camera, and advanced features like loop recording and parking assistance. Please read this manual thoroughly before operating the device and retain it for future reference.

Содржина на пакетот

Проверете дали сите артикли наведени подолу се вклучени во вашиот пакет:

1x 9.0-инчен монитор
1x Magnetic Solar Camera
1x U-bracket for Monitor
1x Power Cable for Monitor
1x USB до Type-C кабел за камера
3х антени
1x Product Instruction Manual
1x Mounting Screw Set
1x адаптер за запалка

Package contents of the VASTEND VS-9A system, including 9-inch screen, solar camera, U-bracket, power cables, car charger, antennas, product manual, and mounting screw set. — Figure 1: All components included in the VASTEND VS-9A package.

Поставување и инсталација

1. Инсталација на фотоапаратот

The magnetic solar camera features a strong magnetic base for easy attachment to any metal surface on your vehicle, RV, or trailer. Ensure the solar panel is oriented to receive maximum sunlight for optimal charging. The camera's angle can be adjusted as needed after attachment.

Step 1 of installation: Magnetic solar camera securely attached to a metal surface on a vehicle. — Figure 2: Magnetic solar camera attachment to a vehicle surface.

Close-up of the magnetic solar camera being adjusted, showing its strong magnetic base and adjustable angle. — Figure 3: Adjusting the camera angle after magnetic attachment.

2. Инсталација на монитор

Mount the 9-inch monitor on your dashboard or windshield using the provided U-bracket or suction cup mount. Connect the monitor to your vehicle's cigarette lighter adapter using the power cable. The adapter includes an on/off button and a USB port.

Step 2 of installation: 9-inch monitor mounted on a dashboard, showing the screen. — Figure 4: Mounting the 9-inch monitor on the dashboard.

Monitor installation steps: Mounting the monitor on the dashboard and plugging in the cigarette lighter adapter. — Figure 5: Connecting the monitor to the cigarette lighter adapter.

3. Првично полнење и спарување

It is recommended to fully charge the camera's built-in 10,000mAh battery using the included USB-C cable before first use. The system is designed for automatic pairing. Once both the camera and monitor are powered on, they should connect wirelessly. If pairing is not automatic, refer to the 'Pairing' option in the monitor's menu.

Упатства за работа

1. Вклучување/исклучување

The system features a low power consumption auto-on/off function. When you turn off the monitor, the camera automatically turns off. When you turn on the monitor, the camera automatically powers on again. This eliminates the need for manual camera operation and conserves battery life.

2. Режими на прикажување

The 9-inch monitor can display images in various modes:

Single Screen: Го прикажува view from one camera in full screen.
Поделен екран: Displays feeds from two cameras simultaneously (additional cameras sold separately).

Real-Time Dual-Channel Display on the 9-inch monitor, showing a truck towing an RV with two camera views. — Figure 6: Real-time dual-channel display on the monitor.

3. Навигација во менито

Use the buttons on the side of the monitor to navigate through the menu options. Common settings include:

Слика: Adjust brightness, contrast, and hue.
Огледало/превртување: Change image orientation (normal, mirror, flip, mirror+flip).
Режим: Select display layout (single, two, three, or four screens).
Паметно: Configure blind zone warnings and calibration.
Репродукција: View снимен footage (requires an SD card).
Снимање: Enable/disable loop recording and format the SD card.
Систем: Adjust volume, sleep settings, language, and time.

Клучни карактеристики

Larger 9-inch Split-Screen Display: The large 9-inch screen provides HD 1080p resolution images for clear, detailed views. It can display two camera feeds simultaneously, enhancing confidence and safety during driving and backing up.
Backup Camera with Strong Magnetic Base: The camera features a powerful magnetic base for secure attachment to any metal surface. Its wireless design allows for easy removal and reinstallation, simplifying setup without professional assistance.
High-capacity 10000mAh Rechargeable Battery: This 100% wireless system includes a built-in 10,000mAh rechargeable battery, eliminating the need for drilling or complex wiring. Solar-assisted charging ensures extended operation, with a USB-C port available for charging in low sunlight conditions.
Low Power Consumption Auto-On/Off Camera: Utilizing upgraded technology, the solar-powered camera automatically turns on when the monitor is activated and off when the monitor is turned off, preventing battery drain and requiring less frequent charging.
Advanced Wireless Digital Signal Technology: The system employs advanced wireless digital signal technology for superior anti-interference capabilities, ensuring fast, stable transmission without image freezes. It offers a transmission distance of up to 300ft (open air) and displays real-time images without lag.
Loop Recording & Parking Assist: Loop recording continuously records driving footage, providing potential evidence if needed. Adjustable parking lines enhance safety and ease of parking, making maneuvers simpler for various vehicles including cars, RVs, trucks, and trailers.

IP69 Waterproof magnetic solar camera mounted on a vehicle, with rain and snow icons indicating weather resistance. — Figure 7: The magnetic solar camera is IP69 waterproof, snowproof, and dustproof.

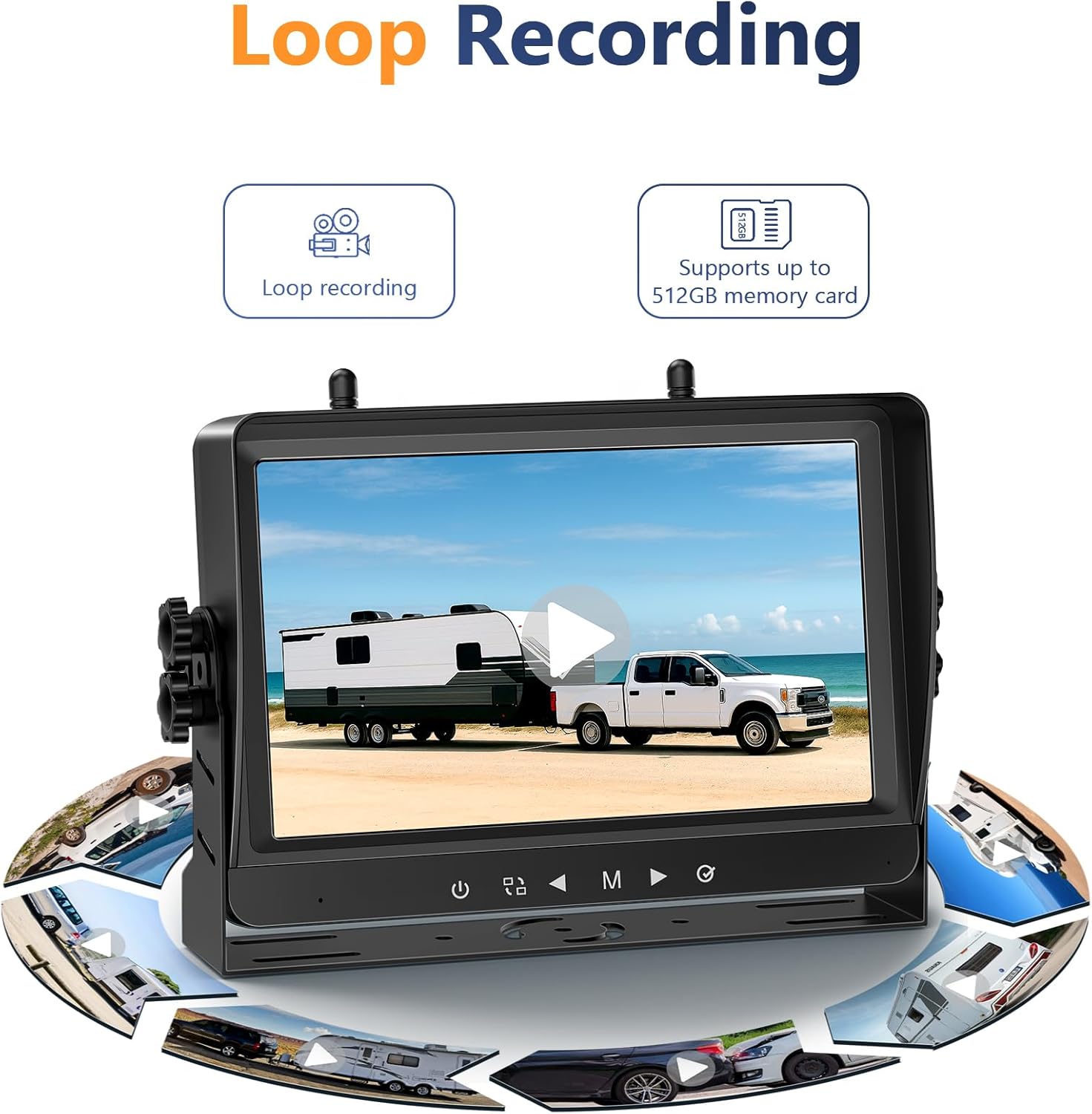

9-inch monitor displaying loop recording functionality, with a circular arrangement of small video frames around the main screen. — Figure 8: Loop recording feature on the monitor.

Одржување

Полнење: Ensure the camera's solar panel is exposed to sunlight for continuous charging. In periods of low sunlight or during winter, use the provided USB-C cable to charge the camera.
Чистење: Редовно чистете го објективот на камерата и соларниот панел со мека, дamp cloth to ensure optimal performance and charging efficiency.
Складирање: When not in use for extended periods, store the camera and monitor in a cool, dry place. Ensure the camera is fully charged before storage.

Решавање проблеми

Нема сигнал: Check if both the camera and monitor are powered on. Ensure antennas are securely attached. Reduce the distance between the camera and monitor, or check for potential signal interference from other wireless devices.
Лош квалитет на сликата: Clean the camera lens. Ensure adequate lighting conditions. Verify that the camera is securely mounted and not vibrating excessively.
Батеријата не се полни: Confirm the solar panel is clean and receiving direct sunlight. If using the USB-C cable, ensure it is properly connected to a power source.
Monitor Not Powering On: Check the cigarette lighter connection and ensure the adapter's on/off button is pressed. Verify the vehicle's power outlet is functional.

Спецификации

Бренд	VASTEND
Модел	VS-9A
Големина на екранот	9 инчи
Резолуција за снимање видео	1080 стр
Voltage	24 волти
Капацитет на батеријата	10,000mAh (Camera)
Тип на објектив	Широк агол
Водоотпорен рејтинг	IP69

Гаранција и поддршка

For warranty information, technical support, or any questions regarding your VASTEND VS-9A system, please contact VASTEND customer service. Refer to the contact details provided in your product packaging or visit the official VASTEND webсајт за помош.
