COWSAR Portable 4-Burner Stainless Steel BBQ Griddle (32000 BTU)

Вовед

This manual provides essential information for the safe and efficient operation, maintenance, and care of your COWSAR Portable 4-Burner Stainless Steel BBQ Griddle. Please read all instructions carefully before assembly and use.

Клучни карактеристики:

• Durable 304 Stainless Steel: Constructed from double-layer 304 stainless steel for corrosion resistance and durability, ensuring even heating and a non-stick surface without coatings.
• 4 Robust Turbo-Fueled Burners: Features 4 independently controlled 8000 BTU burners, providing a total of 32000 BTU. Allows for precise temperature adjustment for various cooking methods.
• Пренослив и компактен дизајн: Engineered for easy transport and convenient use in diverse outdoor settings such as camping, tailgating, and picnics.
• Large Cooking Space: Offers 428 square inches of cooking area, suitable for preparing meals for large families or group gatherings.
• Лесно се чисти: Equipped with a large oil collecting pan that covers the entire tabletop grill, simplifying cleanup by preventing oil drips and allowing for easy removal and washing.

Поставување и склопување

Carefully unpack all components and ensure all parts are present before beginning assembly. Refer to the included parts list for verification. Assembly typically involves attaching the main body to the stand, installing side shelves, and connecting the gas line.

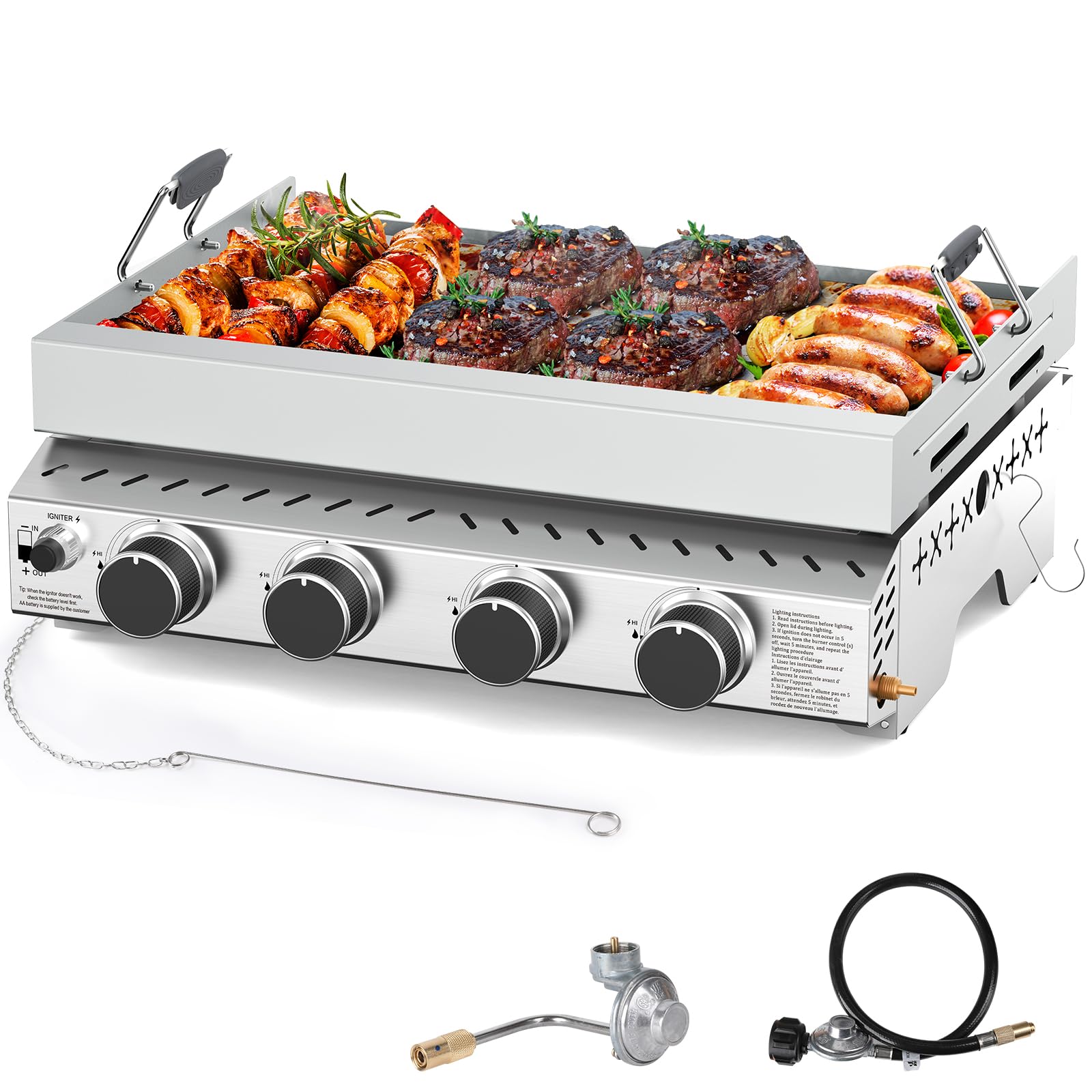

Слика: Надview of the COWSAR Portable 4-Burner Stainless Steel BBQ Griddle.

Чекори на склопување:

1. Отпакувајте ги компонентите: Remove all parts from the packaging. Verify against the parts list.
2. Соберете ја основата: Securely attach the legs and lower shelf components using the provided screws and tools.
3. Attach Main Grill Body: Carefully place the main grill body onto the assembled base and fasten it with screws.
4. Install Side Shelves/Burner: Attach the side shelves and the auxiliary burner unit to the main body. Ensure all connections are tight.
5. Поврзете го гасоводот: Connect the propane regulator and hose to the grill's gas inlet and to your propane tank. Perform a leak test before first use.
6. Insert Griddle Plate: Place the stainless steel griddle plate onto the cooking surface.

Упатства за работа

Follow these steps for safe and effective operation of your griddle.

Пред првата употреба:

• Зачинување на плочата за готвење: Before initial use, and periodically thereafter, season the griddle surface. Apply a thin, even layer of high smoke point cooking oil (e.g., avocado, grapeseed) to the entire cooking surface. Heat the griddle on medium-low for 15-20 minutes until the oil begins to smoke, then turn off the burners and let it cool. Repeat this process 2-3 times. This creates a natural non-stick surface and protects against rust.
• Тест за истекување: Always perform a leak test on all gas connections before first use and after any gas cylinder change. Apply a soapy water solution to all connections. If bubbles appear, there is a leak. Tighten connections or replace parts as necessary. Do not use the griddle if a leak is detected.

Осветлување на горилниците:

1. Ensure the griddle lid is open.
2. Вклучете го снабдувањето со гас во резервоарот за пропан.
3. Push in and slowly turn one burner control knob to the "HIGH" position.
4. Press the igniter button (if available) or use a long match/lighter to ignite the burner.
5. Once the first burner is lit, you can light the remaining burners by turning their respective control knobs to "HIGH".
6. Adjust the flame to your desired cooking temperature.

Cooking with the Griddle:

• Preheat the griddle for 10-15 minutes to achieve even heat distribution.
• Use appropriate cooking utensils for griddle surfaces (e.g., metal spatulas).
• The 4 independent burners allow for different heat zones, enabling simultaneous cooking of various foods at different temperatures.
• The griddle can be used for a wide range of foods, including pancakes, eggs, bacon, stir-fries, fajitas, and more.

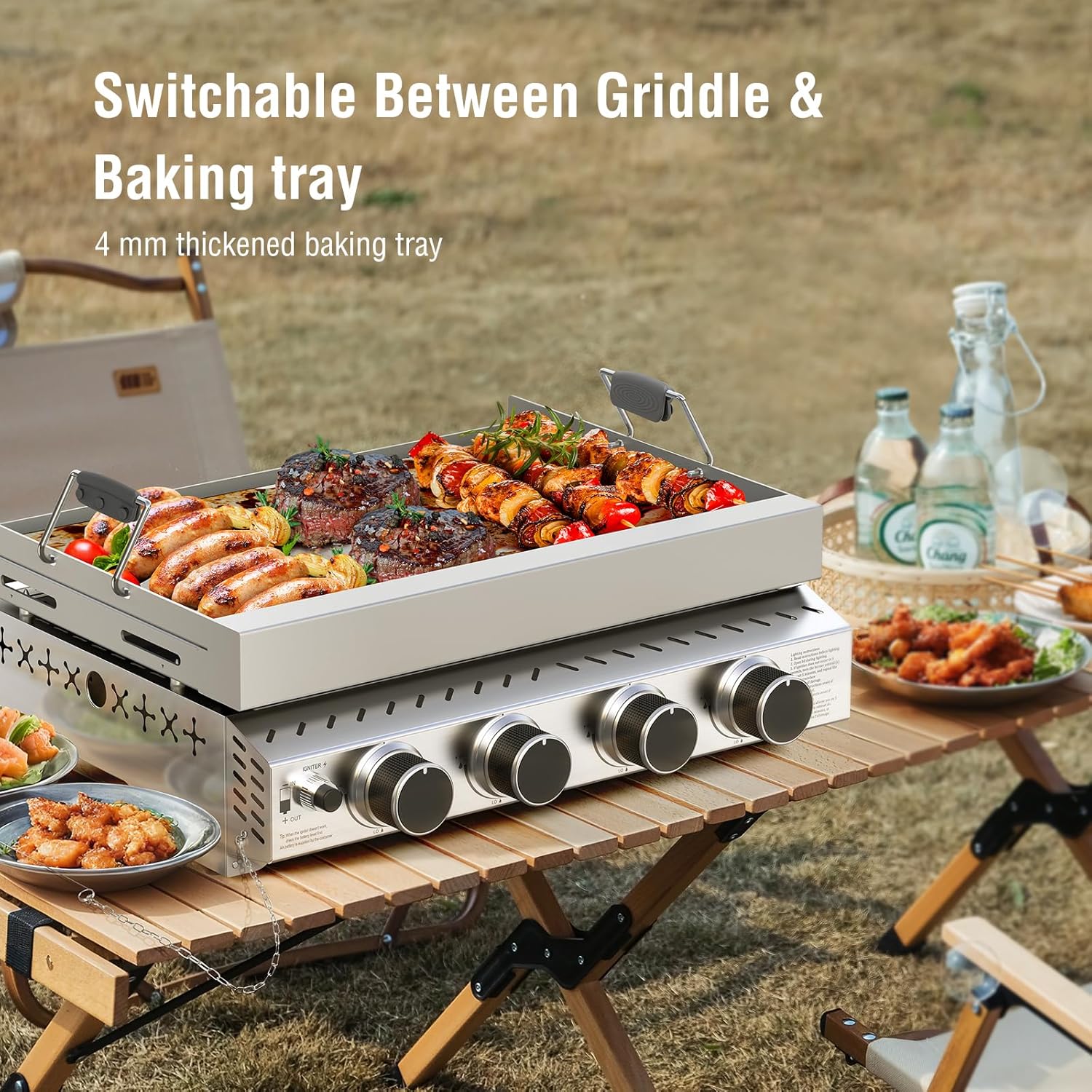

Image: The griddle features a switchable griddle and baking tray for versatile cooking options.

Одржување и чистење

Regular cleaning and maintenance will prolong the life of your griddle and ensure optimal performance.

По секоја употреба:

1. Turn off all burners and the gas supply at the tank.
2. Allow the griddle to cool slightly but remain warm.
3. Scrape off any food residue with a metal spatula or griddle scraper into the oil collecting pan.
4. Remove the large oil collecting pan and dispose of grease properly. Clean the pan with warm, soapy water.
5. Wipe the griddle surface with a paper towel or cloth. For stubborn residue, pour a small amount of water onto the warm griddle to steam clean, then scrape and wipe.
6. Apply a very thin layer of cooking oil to the griddle surface to maintain seasoning and prevent rust.

Општа нега:

• Исчистете ги надворешните површини со рекламаamp крпа и благ детергент. Избегнувајте абразивни средства за чистење.
• Store the griddle in a dry, protected area when not in use. Consider using a grill cover to protect it from elements.
• Regularly check gas hoses for cracks, cuts, or excessive wear. Replace if damaged.

Image: The large oil dripping box simplifies cleanup by collecting excess grease.

Решавање проблеми

If you encounter issues with your griddle, consult the following common troubleshooting tips:

• Горилникот не свети:
  • Проверете дали резервоарот за пропан е отворен и дали има доволно гас.
  • Ensure gas connections are secure and free of leaks.
  • Verify the igniter battery (if applicable) is correctly installed and functional.
  • Clean any clogged burner ports with a wire brush.
• Нерамномерно загревање:
  • Ensure the griddle is level.
  • Check for blockages in burner tubes or ports.
  • Allow sufficient preheating time for the entire surface to reach temperature.
• Слаб пламен:
  • Проверете дали има ниско ниво на гас во резервоарот за пропан.
  • Ensure the gas regulator is not in bypass mode (reset by turning off all burners, closing the tank valve, disconnecting the regulator, waiting 5 minutes, reconnecting, and slowly opening the tank valve).

Спецификации

Гаранција и поддршка

For warranty information, technical support, or to order replacement parts, please contact COWSAR customer service. Keep your purchase receipt and product model number handy for faster service.

Note: Specific warranty details may vary. Refer to your product packaging or the official COWSAR webсајт за најактуелни информации.
