GOLUMUP Hydroponics Growing System GS310 User Manual

1. Вовед и повеќеview

The GOLUMUP Hydroponics Growing System GS310 is an advanced indoor gardening solution designed for cultivating herbs, vegetables, and fruits year-round. This system utilizes hydroponic technology, eliminating the need for soil and providing an efficient way to grow plants indoors. It features a smart water circulation system, full-spectrum LED grow lights, and an intuitive LCD touch panel for easy operation.

Главните карактеристики вклучуваат:

• High Planting Efficiency: Automatic water circulation system keeps water fresh and oxygenated.
• 13 Plant Pods: Ample space for a variety of plants with a transparent water level window.
• Smart & Quiet Water Circulation: Provides oxygen to roots, automatically turns off every 30 minutes to save energy.
• Adjustable Light Pole: Extends up to 16 inches (approximately 41 cm) to accommodate different growth stagес.
• 5L Large Water Capacity: Reduces the frequency of refilling.
• Full-Spectrum LED Grow Light: Simulates natural sunlight with red, blue, white, and far-red light, offering germination and growth modes.

2. Содржина на пакетот

Please ensure all components are present in your package:

• Hydroponic Growing System Base with Water Tank
• LED Grow Light Panel with Adjustable Pole
• 13 корпи за садење
• 13 Sponge Soil Pods
• 13 Seedling Caps
• 13 етикети за под
• 1 пинцета
• 5 Covers (for unused pods)
• 1 Адаптер за напојување
• 1 Set of Fertilizer A+B (Plant Food)

3. Упатства за поставување

1. Соберете го системот: Insert the adjustable light pole into the designated slot on the main unit. Secure the LED grow light panel onto the top of the pole.
2. Prepare Planting Pods: Place one sponge soil pod into each planting basket. If planting seeds, gently insert 2-3 seeds into the center of each sponge.
3. Insert Pods: Place the prepared planting baskets into the 13 available slots on the system's top cover. Use the provided covers for any unused slots to prevent light exposure and algae growth.
4. Label Plants: Use the pod labels to mark the type of plant and planting date for easy identification.
5. Додадете вода: Fill the water tank with fresh water through the designated water filling port. Monitor the transparent water level window to ensure the water level is between the minimum and maximum marks (5L capacity).
6. Add Nutrients: Following the instructions on the fertilizer bottles, add the appropriate amount of Plant Food A and Plant Food B to the water tank. Typically, this involves adding 5ml of A and 5ml of B per 1L of water.
7. Поврзете напојување: Plug the power adapter into the system and then into a power outlet.

4. Упатства за работа

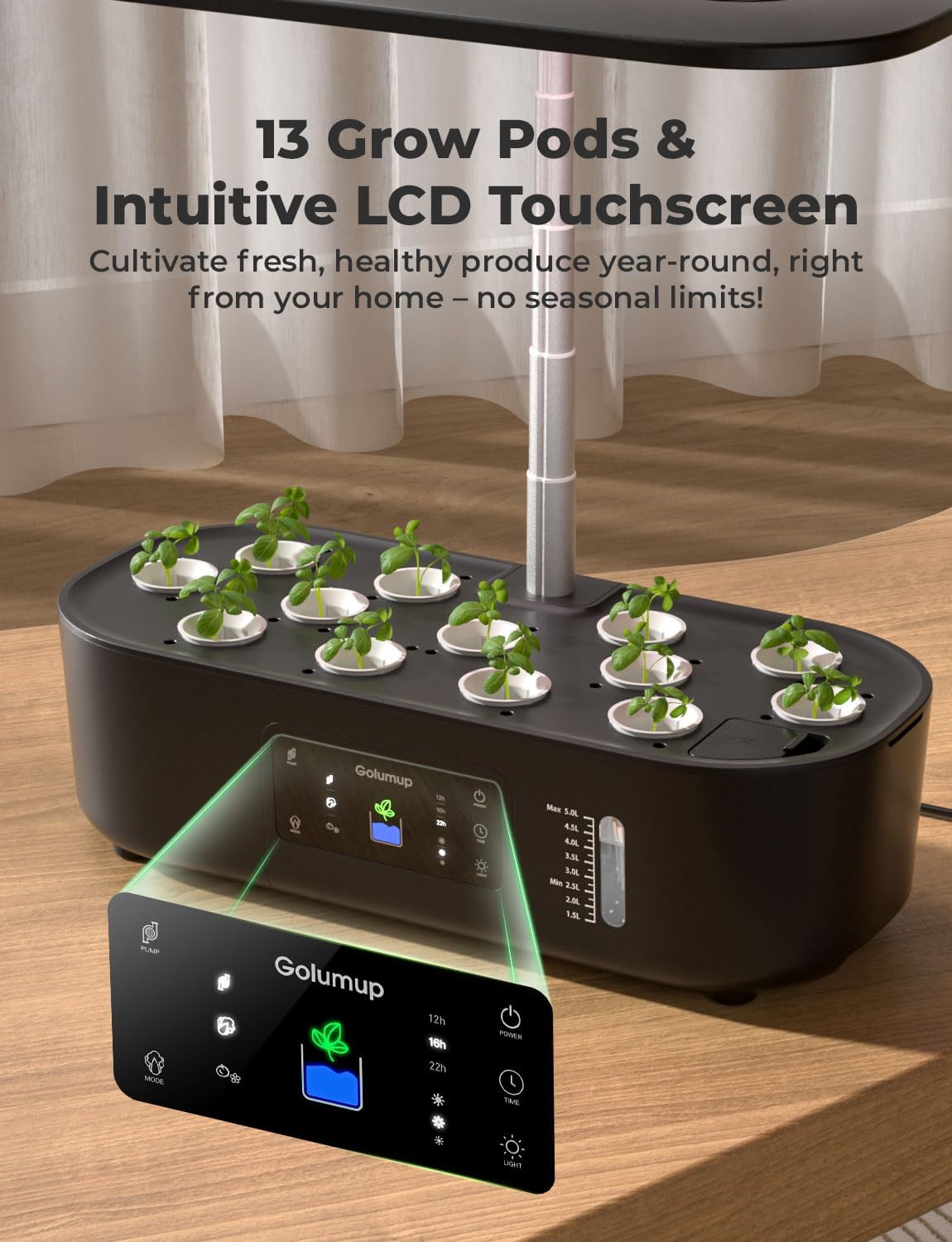

The GOLUMUP Hydroponics Growing System features an intuitive LCD touch panel for easy control:

• Копче за вклучување: Притиснете за да го вклучите или исклучите системот.
• Копче за пумпа: Activates or deactivates the water circulation pump. The system's built-in circulation system automatically turns off every 30 minutes to save energy.
• Режими на тајмер: The grow light includes 3 automatic timer modes (e.g., 12H, 16H, 22H) for daily light cycles. Select the appropriate mode based on your plants' needs.

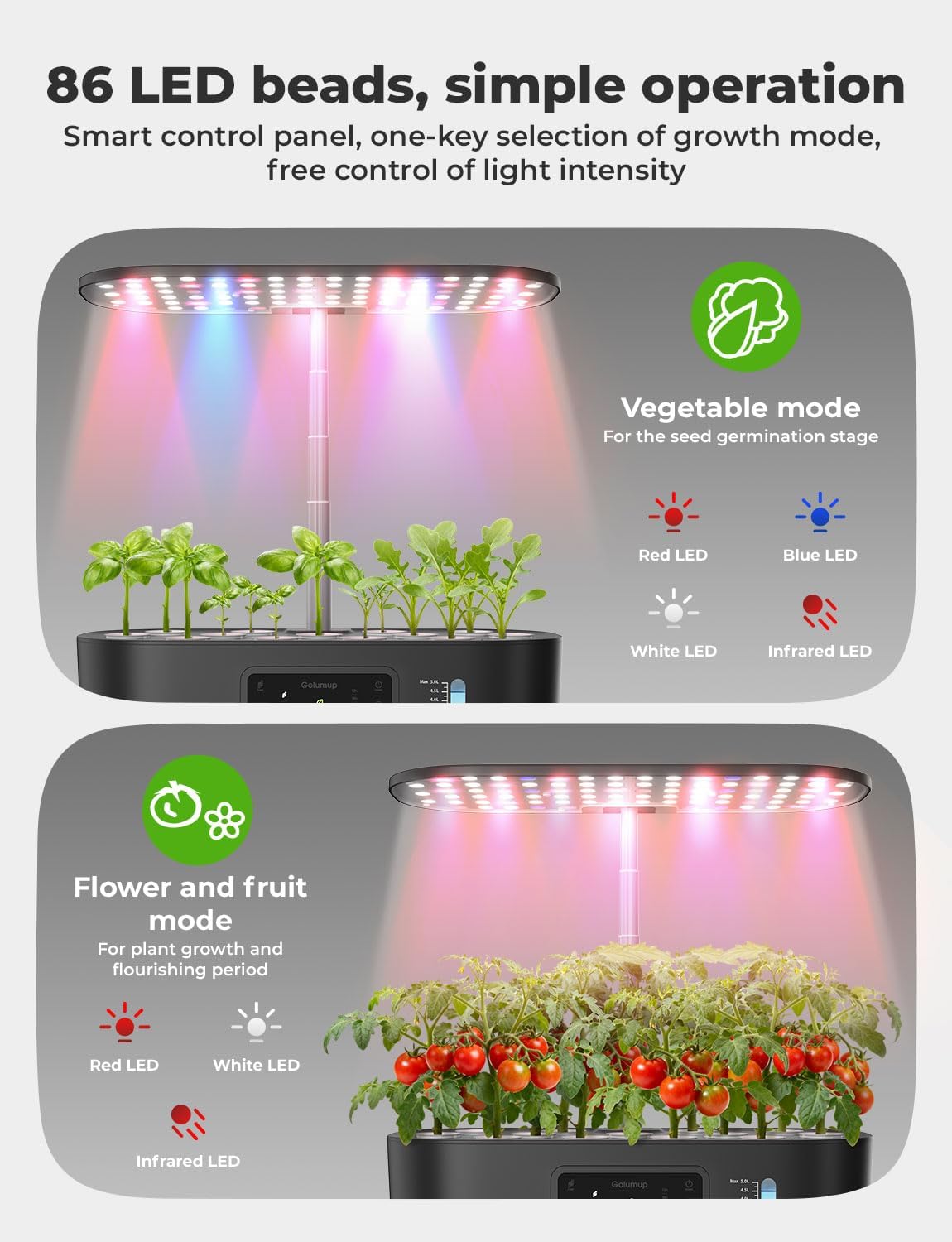

• Light Modes (Vegetable/Flower & Fruit): Switch between different light spectrums to optimize plant growth.
  • Режим на зеленчук: Utilizes red, blue, white, and infrared LED lights for seed germination and leafy green growth.
  • Flower & Fruit Mode: Focuses on red, white, and infrared LED lights to promote flowering and fruiting.
• Adjustable Light Pole: The height of the grow light pole can be adjusted up to 16 inches (41 cm) by sliding it up or down to maintain an optimal distance from the plants as they grow.

5. Одржување

• Следење на нивото на водата: Regularly check the transparent water level window on the side of the unit. Refill water when the level drops below the minimum mark.
• Надополнување на хранливи материи: As plants grow, they consume nutrients. Replenish the nutrient solution according to the plant food instructions, typically every 2-3 weeks, or when refilling the water tank.
• Чистење: Periodically clean the water tank and pump to prevent algae buildup and ensure optimal performance. This can be done during water changes. The drain plug facilitates easy water changes.
• Кастрење: Prune your plants as needed to encourage bushier growth and prevent them from growing too close to the grow light.

6 Смена на проблеми

If you encounter any issues with your GOLUMUP Hydroponics Growing System, please refer to the following common solutions:

• Plants Not Growing: Ensure the light timer is set correctly, the water level is adequate, and nutrient solutions A and B have been added in the correct proportions. Check that the pump is circulating water.
• Раст на алги: Ensure all unused planting slots are covered to block light from reaching the water. Regularly clean the water tank and change the water/nutrient solution.
• Пумпата не работи: Check if the power adapter is securely connected. Ensure the pump button on the LCD panel is activated. If the water tank is empty, the pump may emit noise; refill the tank.
• Светлата што не се вклучуваат: Verify the power connection and ensure the system is turned on. Check the light timer settings on the LCD panel.

7. Спецификации

8. Гаранција и поддршка

For detailed information regarding warranty coverage, product registration, and customer support, please refer to the official documentation included in your product packaging or visit the GOLUMUP official webсајт. Чувајте ја вашата потврда за купување за барања за гаранција.
