Вовед
This manual provides essential information for the safe and efficient use of your Bosch PUE612BB1E Serie 6 60cm Induction Hob. Please read these instructions carefully before installation and operation, and keep them for future reference.
The Bosch PUE612BB1E is a frameless induction hob featuring TouchSelect controls, ultra-fast heating with PowerBoost, child control lock, and a power limiter for energy management. Its elegant surface integrates harmoniously into modern kitchens. Please note that while the product is specified as 'Azurish White', some illustrative images may depict a black version of the hob.
Слика: A Bosch induction hob, shown here in black, installed in a modern kitchen setting. This image illustrates the general appearance and integration of the hob.
Информации за безбедност
Always observe the following safety precautions to prevent accidents and damage to the appliance.
- Електрична безбедност: Ensure the appliance is correctly earthed and connected to a suitable power supply. Do not use extension cords or adapters.
- Заклучување за безбедност на деца: The hob is equipped with a child control lock to prevent accidental activation or changes to settings. Refer to the "Operating Instructions" section for activation and deactivation.
- Топли површини: Although induction hobs heat the cookware directly, the hob surface can become hot from residual heat. Exercise caution and avoid touching hot surfaces.
- Прегревање: Не го оставајте готвењето без надзор. Прегреаните масти и масла можат да се запалат.
- Пејсмејкери: Individuals with pacemakers should consult their doctor before using an induction hob.
- Power Limiter (Energy Tutor): This function allows you to limit the electrical consumption to prevent overloads. Adjust this setting according to your household's electrical capacity.
Поставување и инсталација
Installation must be performed by a qualified technician in accordance with local regulations and safety standards.
Димензии и исечок
The hob requires a specific cutout in the countertop. Ensure the dimensions are accurate before cutting.
Слика: Overall dimensions of the Bosch PUE612BB1E induction hob, showing a width of 592mm, depth of 522mm, and a height of 51mm (A: Recess depth).

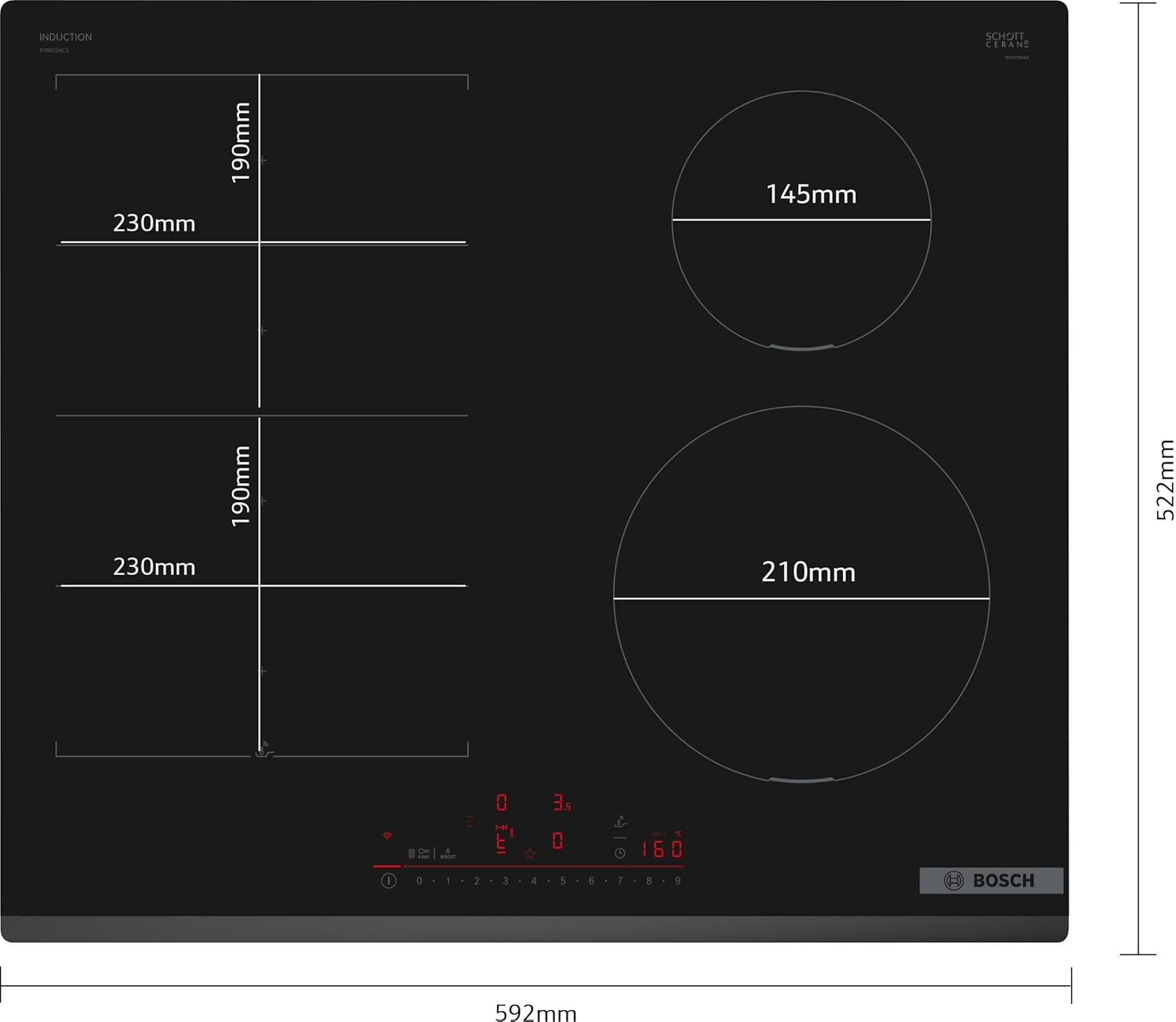

Слика: Горе-надолу view of the hob layout, indicating the dimensions of the four cooking zones (190mm, 230mm, 145mm, 210mm).
Слика: Diagram illustrating the required cutout dimensions for installation. The cutout should be 560mm wide and between 490-500mm deep. Minimum distances from walls and other appliances are also indicated.
Барања за вентилација
Adequate ventilation is crucial for the proper functioning and longevity of the induction hob. Ensure there is sufficient airflow beneath the appliance.

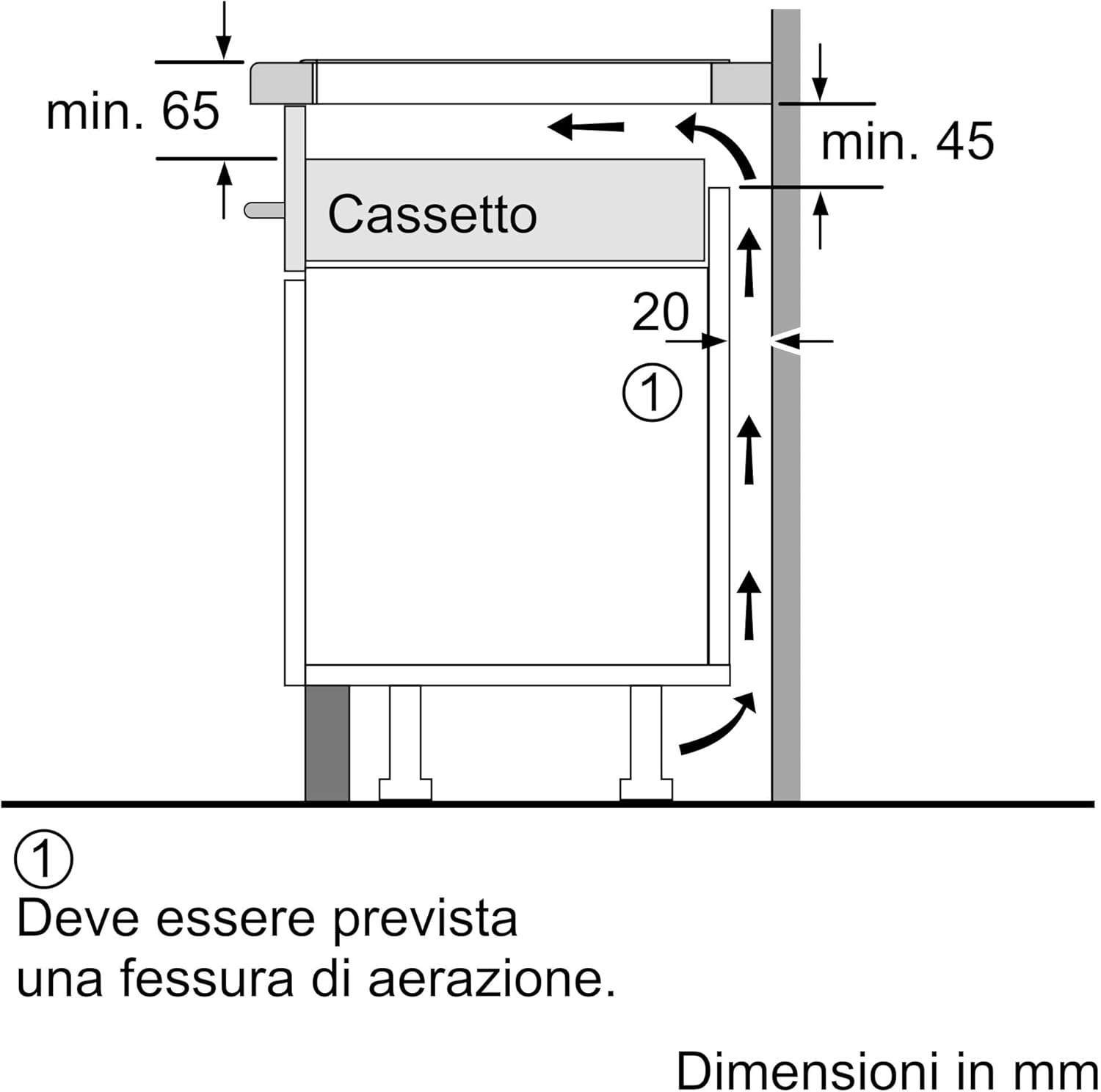

Слика: Страна view diagram showing ventilation requirements when installed above a drawer. A minimum clearance of 45mm from the back wall and a ventilation gap (1) are necessary.
Слика: Страна view diagram showing ventilation requirements when installed above a built-in oven. A minimum clearance of 45mm from the back wall and a ventilation gap (1) are necessary.
Слика: Diagram illustrating the minimum 550mm clearance required above the hob for proper installation and ventilation.
Електрично поврзување
The hob comes with a power cable and a Schuko plug. Connect it to a suitable earthed socket. The power limiter (Energy Tutor) can be configured to match your home's electrical capacity, starting from 1 kW, to prevent overloads.
Упатства за работа
Familiarize yourself with the controls and functions for optimal cooking results.
TouchSelect Controls
The hob features TouchSelect controls for easy and intuitive operation. Simply touch the desired power level or use the '+' and '-' symbols to adjust.
Слика: Одблиску view of the TouchSelect control panel, showing power level indicators and function buttons.
Функција PowerBoost
Activate PowerBoost to increase the power of a cooking zone by up to 50% for ultra-fast heating, ideal for boiling water quickly.
Слика: Illustration of the PowerBoost function, showing water boiling rapidly in a pot on the induction hob.
Функција на тајмер
Set a cooking time for individual zones. The selected zone will automatically switch off once the set time has elapsed, ensuring precise cooking without constant monitoring.
Мемориска функција
In case of an accidental power interruption, the hob's memory function retains your cooking settings, allowing you to resume cooking from where you left off.
Одржување и чистење
Редовното чистење и правилното одржување ќе обезбедат долготрајност и оптимални перформанси на вашата индукциска плоча.
- Секојдневно чистење: Wipe the vitroceramic surface with a soft cloth and a mild cleaning agent after each use, once the hob has cooled down.
- Тврдоглави дамки: For burnt-on food or stubborn stains, use a specialized ceramic hob scraper.
- Избегнувајте абразиви: Не користете абразивни средства за чистење, сунѓери за стружење или груби хемикалии, бидејќи тие можат да ја изгребат или оштетат површината.
- Контролен панел: Clean the control panel gently with a damp cloth. Ensure it is dry before operating the hob.
Решавање проблеми
If you encounter issues with your hob, refer to the following common problems and solutions before contacting customer service.
| Проблем | Можна причина | Решение |
|---|---|---|
| Шпоретот не се вклучува. | Нема напојување; активирана е заштитата од деца. | Check power connection. Deactivate child lock (refer to operating instructions). |
| Зоната за готвење не се загрева. | Incorrect cookware; power level too low. | Use induction-compatible cookware. Increase power level. |
| Плочата за готвење се исклучува неочекувано. | Overheating; power limiter activated. | Allow hob to cool. Check power limiter settings (Energy Tutor). |
| Екранот прикажува код за грешка. | Специфична внатрешна грешка. | Note the error code and consult the full user manual or contact Bosch service. |
Спецификации
| Карактеристика | Детал |
|---|---|
| Бренд | Бош |
| Број на модел | PUE612BB1E |
| Димензии на производот | 59.2 cm (Ш) x 52.2 cm (Д) x 5.1 cm (В) |
| Тежина | 10.2 кг |
| Број на грејни елементи | 4 |
| Боја | Azurish White |
| Извор на енергија | Електричен со кабел |
| Тип на гориво | Електрични |
| Посебни карактеристики | Safety lock, Built-in, Energy management function, Time limitation, Pot detector, Timer |
| Површински материјал | Витрокерамика |
| Тип на пламеник | Стаклена керамика |
Гаранција и поддршка
Your Bosch PUE612BB1E Induction Hob comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.
For technical assistance, spare parts, or to schedule a service appointment, please contact Bosch customer support. You can find contact details on the official Bosch webстраницата или во документацијата за вашиот производ.
Онлајн ресурси: За дополнителни информации, најчесто поставувани прашања и регистрација на производи, посетете ја официјалната страница на Bosch. webсајт: www.bosch-home.com
