1. Вовед
Thank you for choosing the Shadowhawk S1618 High Power Rechargeable LED Flashlight. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.
2. Информации за безбедност
- Do not look directly into the LED light when it is active, as this may cause temporary vision impairment or eye damage.
- Чувајте ја батериската светилка подалеку од дофат на деца.
- Do not disassemble or modify the flashlight, as this will void the warranty and may cause damage or injury.
- Use only the specified battery type and charging cable.
- Избегнувајте изложување на фенерчето на екстремни температури или директна сончева светлина подолг период.
- Ensure the rubber protective cap for the charging port is securely closed to maintain water resistance.
3. Содржина на пакетот
Проверете дали сите артикли се присутни во вашиот пакет:
- 1 x Shadowhawk S1618 Rechargeable LED Flashlight
- 1 x 5000mAh батерија за полнење
- 1 x кабел за полнење USB-C
- 1 x AAA Battery Holder & Battery Tube (for optional AAA battery use, batteries not included)
- 1 x решетка
- 1 x Flashlight Holster
- 1 x Упатство за употреба
- 1 x кутија за подароци

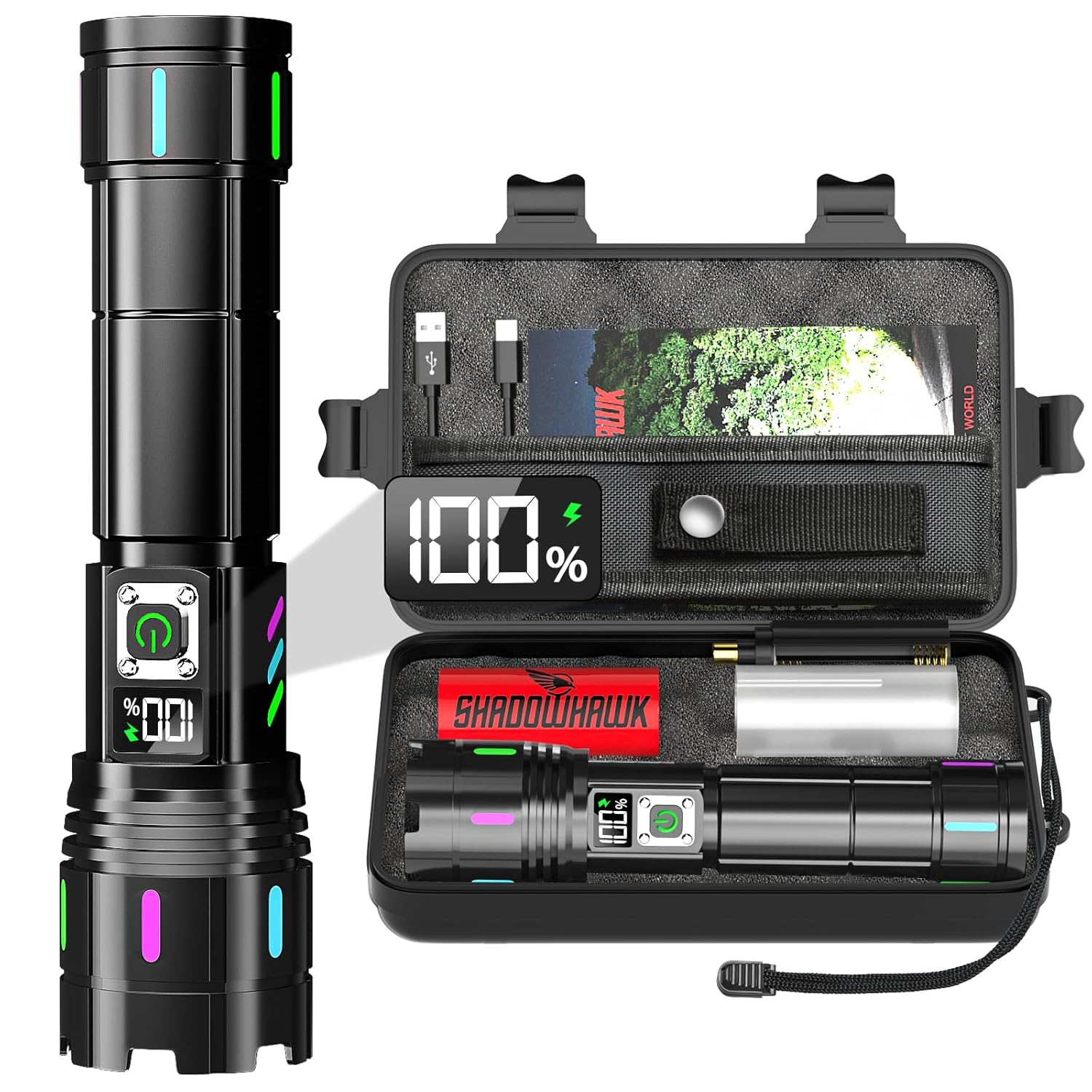

Image: Shadowhawk S1618 flashlight, rechargeable battery, USB-C cable, AAA battery holder, lanyard, and case.
4. Поставување
4.1. Инсталација на батерија
- Отшрафете го капачето на опашката на фенерчето.
- If using the included rechargeable battery, remove the transparent plastic protective film from the battery surface before installation.
- Insert the battery with the positive (+) pole facing towards the flashlight head.
- Добро зашрафете го капачето на опашката.
Image: Visual guide demonstrating how to open the back cover, confirm battery polarity, insert the battery, and close the back cover.
4.2. Почетно полнење
Before first use, fully charge the flashlight battery. Refer to Section 6 for detailed charging instructions.
5. Упатства за работа
5.1. Вклучување/исклучување
- Притиснете го копчето за вклучување еднаш за да го вклучите фенерчето.
- To turn off, press and hold the power button for 3 seconds. This allows immediate shutdown without cycling through all modes.
5.2. Избор на режим
With the flashlight on, press the power button repeatedly to cycle through the 5 lighting modes:
- Високо: Maximum brightness for powerful illumination.
- Средно: Балансирана осветленост за општа употреба.
- Ниско: Reduced brightness for extended runtime or close-range tasks.
- Строб: Flashing light for signaling or disorientation.
- СОС: Меѓународен сигнал за Морзова азбука за итни случаи.
The flashlight features a smooth current transition system, ensuring gradual brightness changes between modes to protect your eyes and the internal components.
Image: Visual representation of the five distinct lighting modes available on the Shadowhawk S1618 flashlight.
5.3. Adjustable Focus (Zoom Function)
The flashlight features an adjustable focus mechanism:
- Режим на рефлектор: Продолжете го lamp head forward to narrow the beam for long-distance illumination (up to 3,937 feet).
- Режим на рефлектори: Retract the lamp head to widen the beam for broad area illumination (covering up to 2,160 square feet).
Image: Illustration of the flashlight's adjustable head, demonstrating how to switch between wide-angle floodlight and long-range spotlight modes.
5.4. LCD дигитален дисплеј
The integrated LCD screen displays the battery power percentage with approximately 1% accuracy, allowing you to monitor the remaining charge in real-time.
Image: Close-up of the flashlight's LCD screen, indicating the precise battery charge level.
5.5. USB Discharging (Power Bank Function)
The flashlight can function as a power bank to charge other electronic devices in emergencies. Connect your device to the USB-A output port using an appropriate cable.

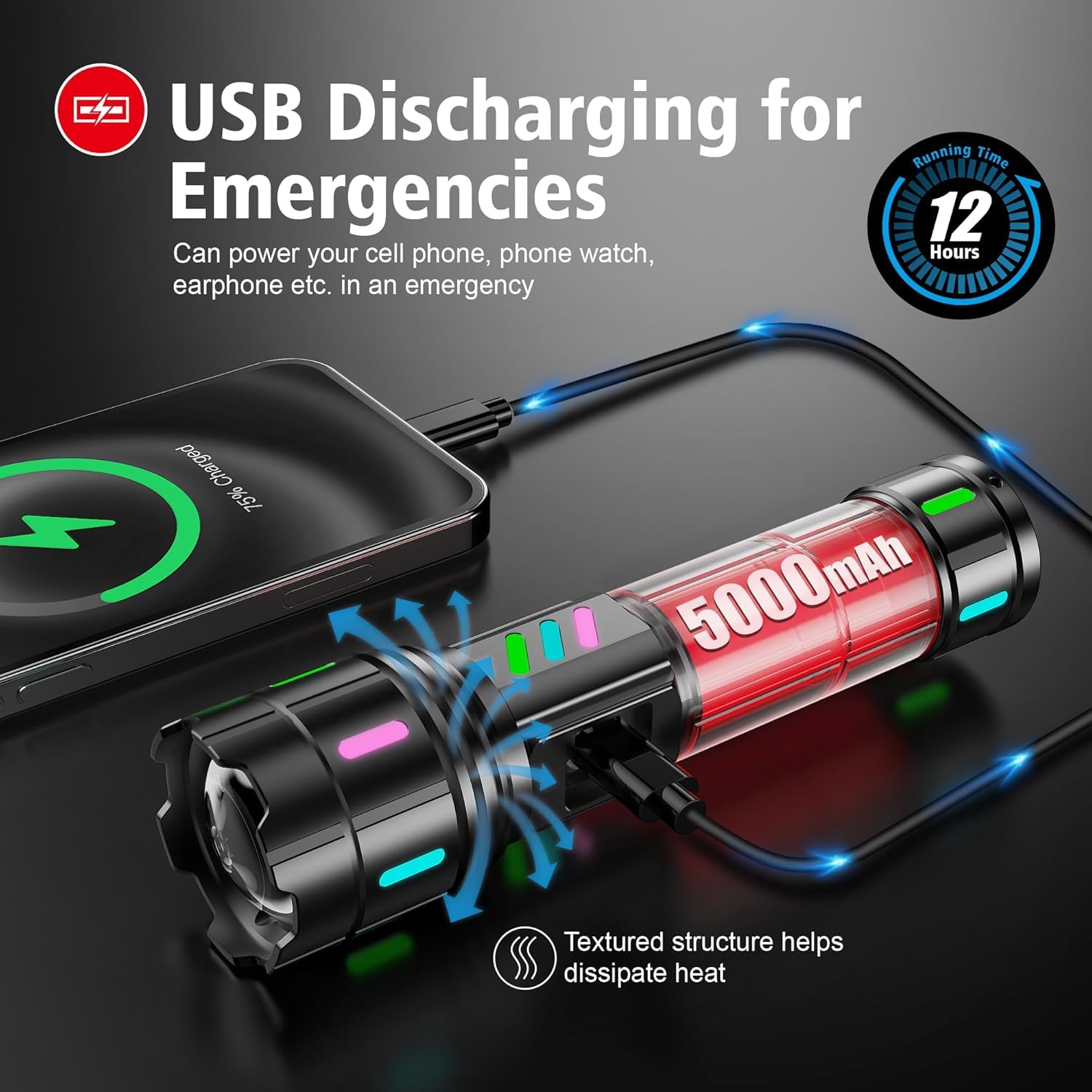

Image: The flashlight connected to a smartphone, illustrating its capability to discharge power and charge other devices.
6. Полнење
To charge the Shadowhawk S1618 flashlight:
- Locate the USB-C input port on the flashlight.
- Connect the included USB-C charging cable to the flashlight and to a compatible USB power source (e.g., wall adapter, power bank, laptop).
- The LCD display will show the charging progress. A full charge typically takes 6-8 hours.
- Once fully charged, disconnect the cable and ensure the rubber protective cap is securely closed to maintain water resistance.
Image: The flashlight connected to a wall charger via USB-C, highlighting its fast and safe charging capabilities with built-in protections.
7. Одржување
7.1. Чистење
Избришете го телото на фенерчето со мека, дamp cloth. Do not use abrasive cleaners or solvents. Ensure the charging port cover is closed before cleaning.
7.2. Складирање
Store the flashlight in a cool, dry place away from direct sunlight. If storing for an extended period, charge the battery every 3-6 months to maintain its lifespan.
7.3. Водоотпорност
The Shadowhawk S1618 is IP67 rated, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. Ensure all caps and seals are properly closed before exposing to water.
Image: The flashlight shown with water droplets, emphasizing its IP67 waterproof rating and durable rubber seals.
8 Смена на проблеми
- Фенерчето не се вклучува:
- Check if the battery is correctly installed with the correct polarity.
- Проверете дали батеријата е наполнета.
- Затегнете го капачето на задната страна цврсто.
- Dim light or short runtime:
- Наполнете ја батеријата целосно.
- Уверете се дека батеријата не е стара или оштетена.
- Проблеми со полнењето:
- Проверете дали USB-C кабелот е правилно поврзан и со фенерчето и со изворот на енергија.
- Обидете се со друг USB извор на напојување или кабел.
9. Спецификации
| Карактеристика | Спецификација |
|---|---|
| Модел | S1618 |
| Извор на светлина | Upgraded XHM90.2 LED Chip |
| Осветленост | До 10000 лумени |
| Ватtage | 30 W |
| Растојание на зрак | Up to 3,937 feet (Spotlight) |
| Floodlight Coverage | До 2,160 квадратни метри |
| Тип на батерија | 5000mAh Lithium Ion (included) / AAA (with holder, not included) |
| Време на извршување (низок режим) | До 12 часа |
| Порта за полнење | Влез USB-C |
| Пристаниште за празнење | Излез на USB-A |
| Отпорност на вода | IP67 |
| Материјал | Алуминиумска легура од авијација |
| Димензии | 22.5D x 5.5W x 17.5H сантиметри |
| Тежина | 0.45 грама |
10. Информации за гаранцијата
Shadowhawk products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included in your package or contact customer support. Keep your purchase receipt as proof of purchase for warranty claims.
11. Поддршка
For any questions, technical assistance, or support regarding your Shadowhawk S1618 flashlight, please contact our customer service team:
- Е-пошта: support@shadowhawk.top
- Phone (India Importer): +91 9818598163 (Deepali)
