KKT KOLBE SOLO8005S 80cm Wall-Mounted Cooker Hood

1. Во текотview

The KKT KOLBE SOLO8005S is an 80 cm wall-mounted cooker hood designed for efficient air extraction and recirculation in medium-sized kitchens. Its inclined design ensures an unobstructed view of the hob, preventing head bumps. Featuring SensorTouch controls and LED lighting, this A+++ energy-efficient appliance combines modern aesthetics with powerful performance.

Image: The KKT KOLBE SOLO8005S cooker hood, showcasing its sleek design and A+++ energy rating in a kitchen setting.

2. Информации за безбедност

Please read all safety instructions carefully before installation and use. Keep this manual for future reference.

• Осигурајте се дека електричното напојување се совпаѓа со она што е наведено на плочката со спецификации на апаратот.
• Инсталацијата мора да ја изврши квалификуван техничар.
• Maintain the recommended distance between the hob and the bottom of the hood (50-60 cm).
• Не фламбирајте под аспираторот.
• Редовно чистете ги филтрите за маснотии за да спречите опасност од пожар.
• Овој апарат не е наменет за употреба од лица (вклучувајќи деца) со намалени физички, сетилни или ментални способности, или со недостаток на искуство и знаење, освен ако не им се дадени надзор или инструкции за користење на апаратот од лице одговорно за нивната безбедност.

3. Содржина на пакетот

Проверете дали сите компоненти се присутни пред да започнете со инсталацијата:

• Единица за аспиратор за шпорет
• Монтажни држачи и завртки
• Ducting Hose (if applicable)
• Activated Carbon Filter (for recirculation mode)
• Упатство за употреба
• Копчиња на сензорот TouchSelect
• LED светло

4. Инсталација

4.1 Монтирање на аспираторот

The KKT KOLBE SOLO8005S is designed for wall mounting. Ensure the wall is strong enough to support the weight of the appliance.

1. Determine the optimal mounting height. The recommended distance between the hob and the bottom of the hood is 50 to 60 cm.
2. Mark the drilling points on the wall using the provided template or by measuring carefully. Refer to the dimension diagram below.
3. Дупчете дупки и вметнете ѕидни приклучоци.
4. Прицврстете ги држачите за монтирање на ѕидот.
5. Carefully lift the cooker hood and attach it to the mounting brackets.
6. Поврзете го напојувањето.

Image: Detailed technical drawing showing the dimensions of the KKT KOLBE SOLO8005S cooker hood for accurate installation.

4.2 Опции за цевководи

The hood can operate in two modes: exhaust air (extraction) or recirculation.

• Exhaust Air Mode: Vapors are extracted and expelled outside through a ducting system. Ensure proper sealing and a clear path for the exhaust air.
• Режим на кружење: Air is filtered through an activated carbon filter to remove odors and then returned to the kitchen. This mode is suitable when external venting is not possible. The activated carbon filter is included.

Image: Visual representation of the exhaust air mode (left) and recirculation mode with an activated carbon filter (right).

5. Операција

5.1 Контролен панел

The cooker hood features a SensorTouch control panel for easy operation. An LED indicator displays relevant information.

Image: The control panel of the cooker hood, illustrating the 9 power levels and the automatic repeat function.

5.2 нивоа на моќност

The appliance offers 9 power levels, allowing flexible adjustment of suction power. A booster function is available for intensive ventilation.

• Press the '+' or '-' buttons to adjust the fan speed from level 1 to 9.
• Activate the booster function for maximum extraction when needed.

5.3 Automatic Repeat Function

The automatic repeat function allows the hood to switch off automatically after a predefined period (e.g., one hour), ensuring efficient air purification even after cooking is finished.

5.4 LED осветлување

The integrated LED lighting provides clear illumination of your cooking area.

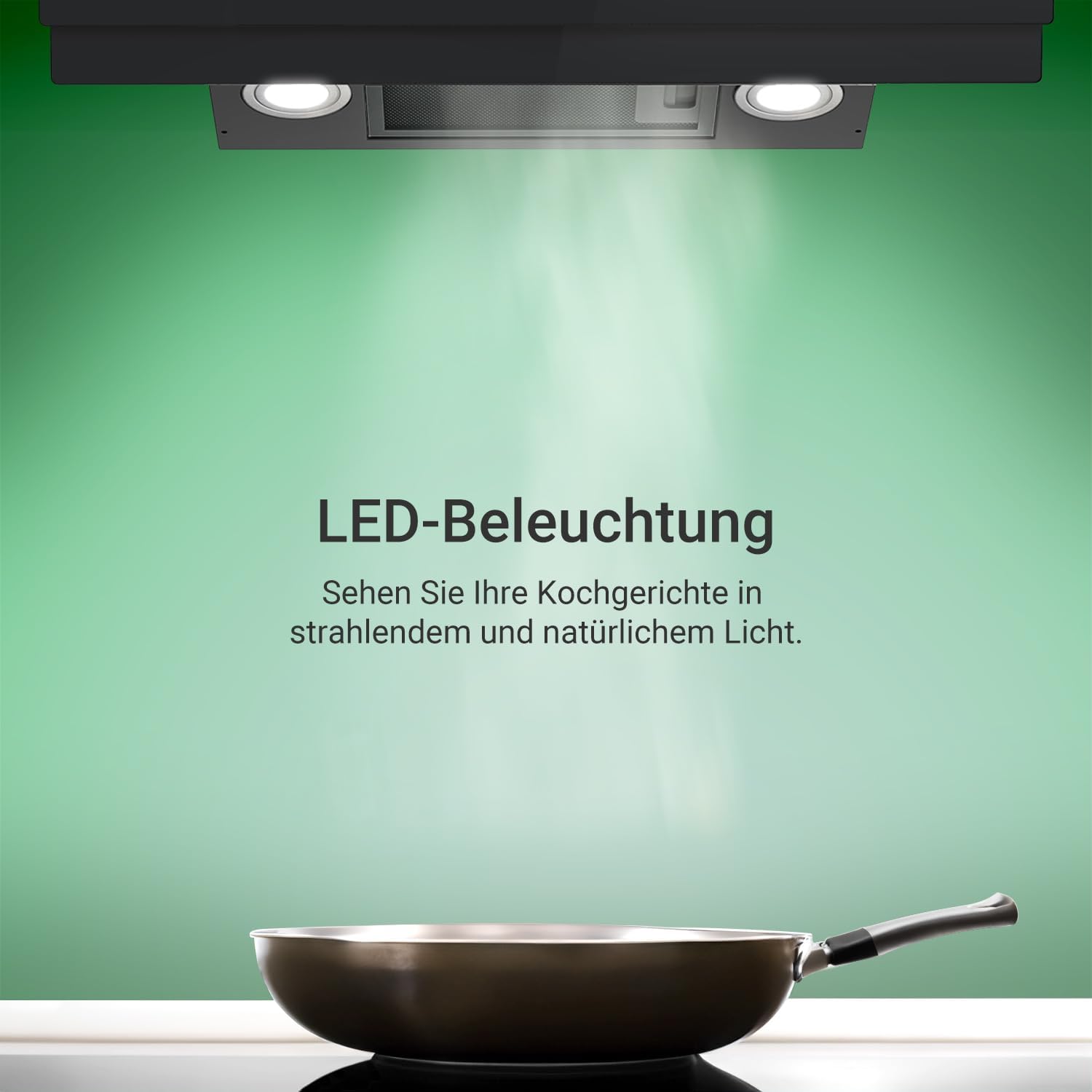

Image: The LED lighting feature of the cooker hood, providing clear visibility over the hob.

6. Одржување

Редовното одржување обезбедува оптимални перформанси и долготрајност на вашиот аспиратор.

6.1 Metal Grease Filter

The durable metal grease filter effectively captures grease particles. It is dishwasher safe for easy cleaning.

• Remove the metal grease filter by pressing the release latch.
• Clean the filter regularly, ideally every 2-4 weeks, depending on usage.
• Wash by hand with hot soapy water or place in a dishwasher.
• Пред повторно да го инсталирате, проверете дали филтерот е целосно сув.

6.2 Activated Carbon Filter (for Recirculation Mode)

If using the hood in recirculation mode, the activated carbon filter removes odors from the air.

• The activated carbon filter cannot be washed and must be replaced periodically.
• Replace the carbon filter every 3-6 months, depending on cooking frequency and type.
• Refer to the product diagram for the location of the carbon filter for replacement.

7 Смена на проблеми

If you encounter issues with your cooker hood, consult the following common problems and solutions:

8. Спецификации

9. Гаранција и поддршка

For warranty information, technical support, or spare parts, please refer to the contact details provided with your purchase documentation or visit the official KKT KOLBE webстраница. Зачувајте го доказот за купување за какви било гаранциски побарувања.
