Упатство за употреба на безжична механичка тастатура E-YOOSO Z-101

1. Поставување

The E-YOOSO Z-101 keyboard offers versatile connectivity options to suit various devices and operating systems. Before initial use, ensure the keyboard is charged or connected via USB-C.

1.1 Трирежимска врска

This keyboard supports three connection modes: Bluetooth 5.0, 2.4GHz wireless, and USB wired. You can connect to up to five devices simultaneously and switch between them using FN key combinations.

Image: Tri-Mode Connection options for the E-YOOSO Z-101 keyboard.

1.1.1 USB-жичен режим

Connect the keyboard directly to your computer using the provided USB-C cable. This mode provides a stable connection and charges the keyboard simultaneously.

1.1.2 Безжичен режим од 2.4 GHz

To use 2.4GHz wireless mode, plug the USB receiver into your device. Switch the mode selector on the keyboard to 2.4G. The keyboard should automatically connect. The USB dongle can be stored in a dedicated slot on the side of the keyboard when not in use.

1.1.3 режим на Bluetooth

Switch the mode selector on the keyboard to BT. The keyboard can store up to three Bluetooth connections (BT1, BT2, BT3). To pair, press FN + 1/2/3 until the indicator light flashes, then search for the keyboard on your device's Bluetooth settings and connect.

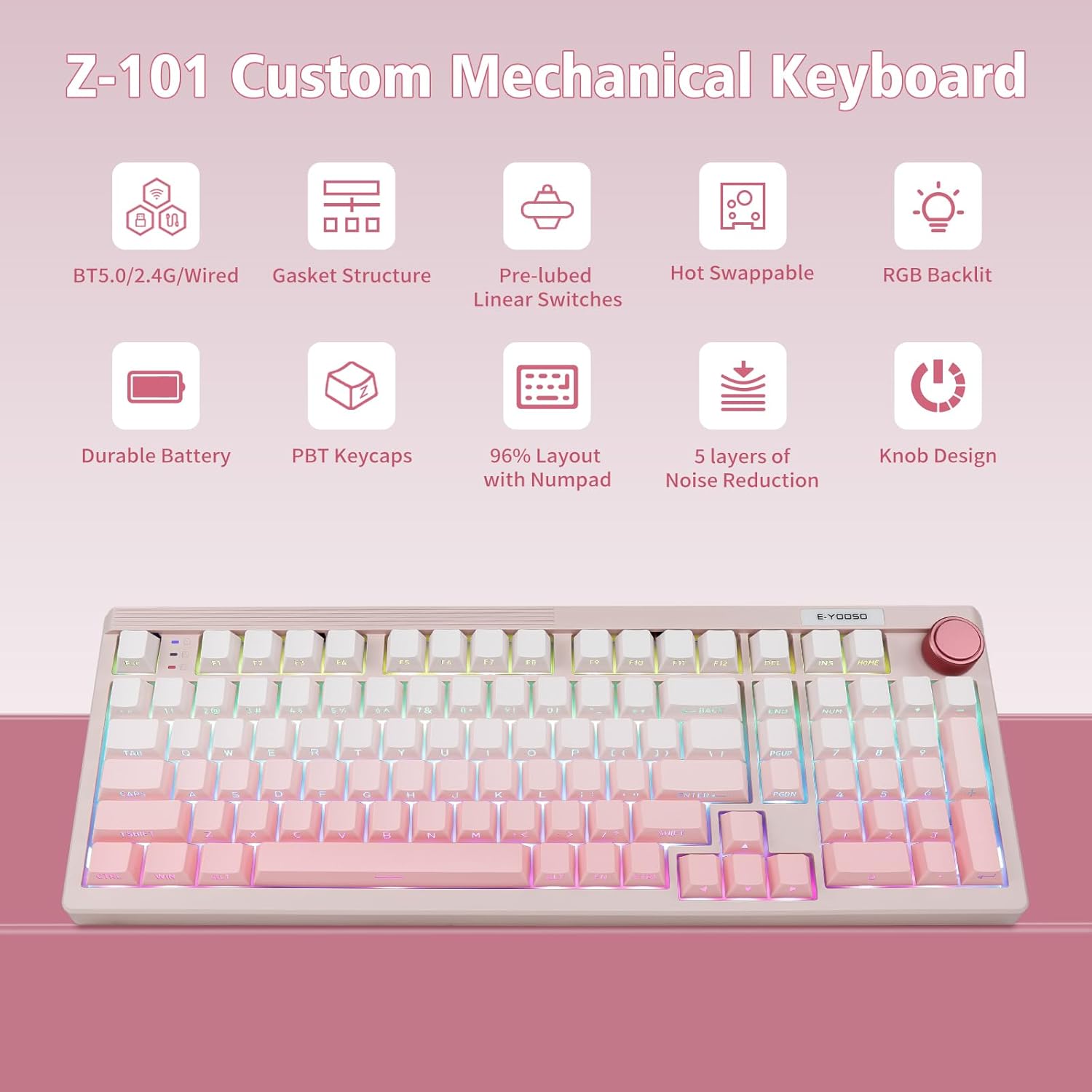

Image: Key features of the E-YOOSO Z-101 Custom Mechanical Keyboard.

1.2 Компатибилност со оперативниот систем

The keyboard includes a switch to toggle between Windows and Mac layouts. Ensure this switch is set correctly for your operating system to utilize all functions properly.

Видео: Оверview of the E-YOOSO Z-101 Wireless Mechanical Keyboard, demonstrating its features and functionality.

2. Упатства за работа

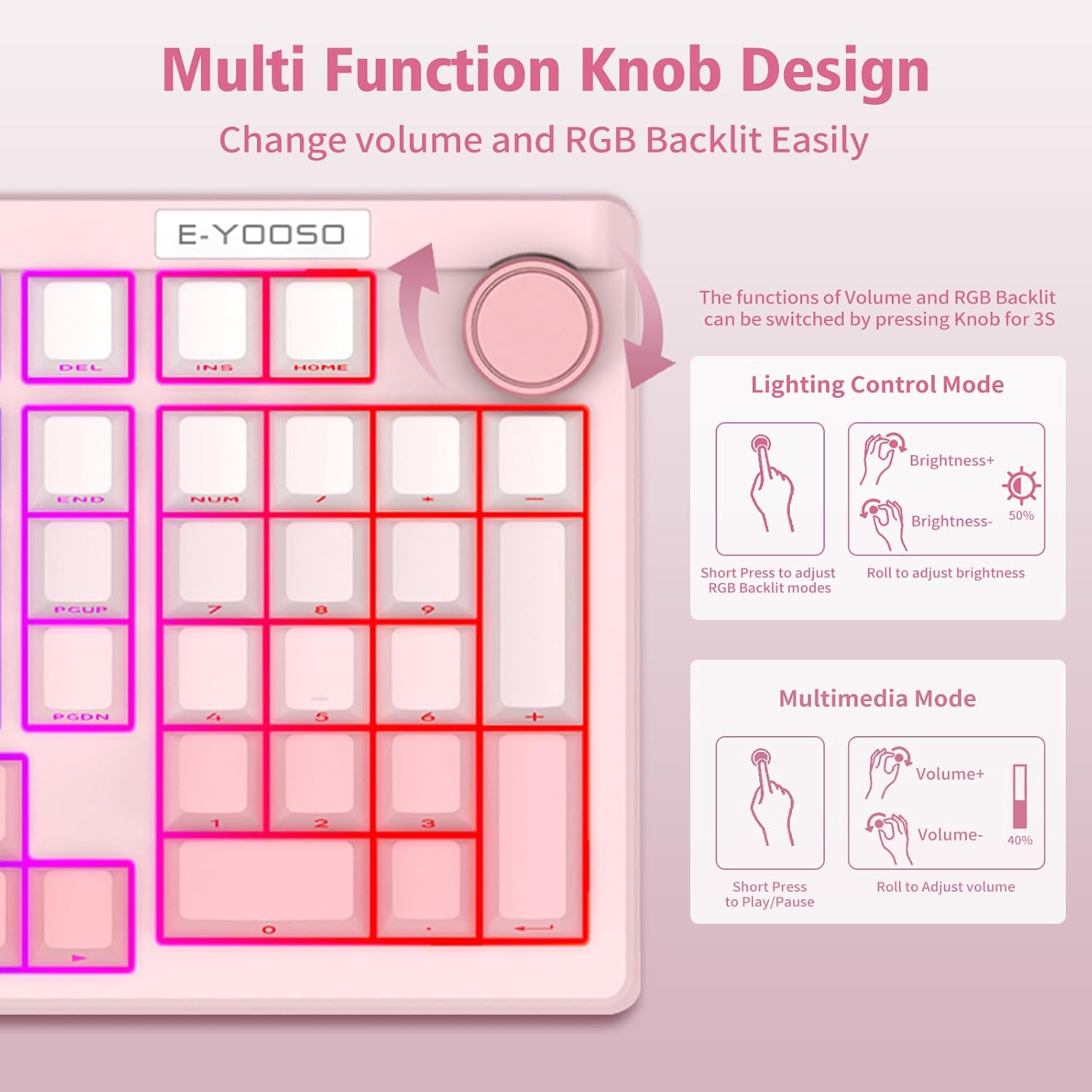

2.1 мултифункционално копче

The knob located on the top right of the keyboard serves dual purposes: volume control and lighting adjustment.

• Volume Control Mode: Rotate the knob to adjust the system volume. Short press the knob to mute or unmute audio.
• Lighting Control Mode: Long press the knob for 3 seconds until the backlight flashes twice to switch to lighting mode. In this mode, rotate the knob to adjust backlight brightness. Short press to cycle through 15 RGB lighting effects. Long press for 2 seconds until the backlight flashes twice to switch back to volume control mode.

Image: Multi-function knob operation for volume and RGB backlight control.

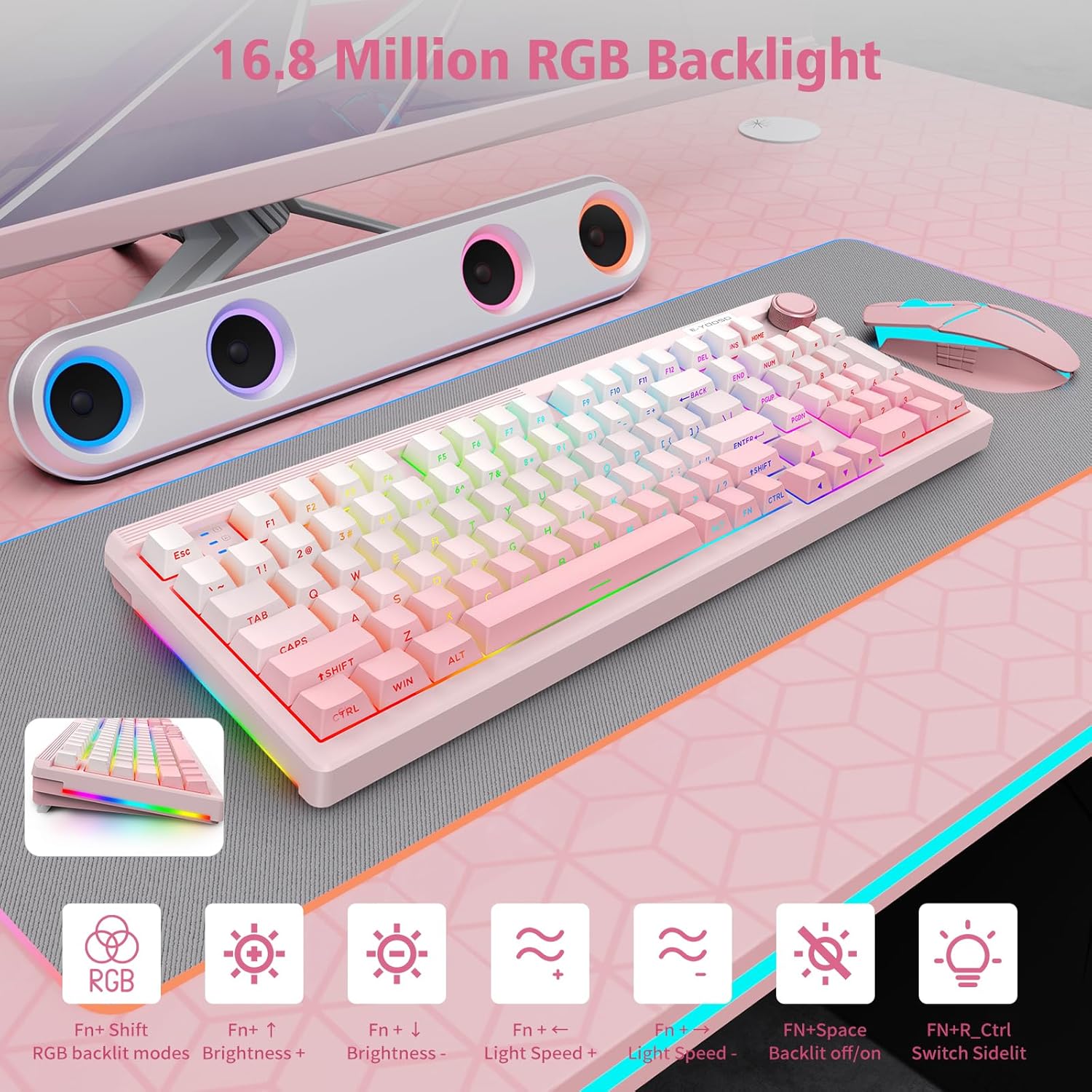

2.2 RGB позадинско осветлување

The keyboard features 16 RGB lighting effects and supports over 16.8 million colors, enhancing the user experience.

• Change RGB Modes: Use FN + Shift to cycle through different RGB backlight modes.
• Прилагодете ја осветленоста: Use FN + ↑ (Up Arrow) to increase brightness and FN + ↓ (Down Arrow) to decrease brightness.
• Прилагодете ја брзината на светлината: Use FN + ← (Left Arrow) to decrease light speed and FN + → (Right Arrow) to increase light speed.
• Вклучено/исклучено позадинско осветлување: Press FN + Space to toggle the backlight on or off.
• Switch Sidelight: Press FN + R_Ctrl to switch the sidelight effect.

Image: RGB Backlight features and control shortcuts.

2.3 FN Shortcuts

The keyboard includes various FN key combinations for quick access to functions on both Windows and Mac operating systems.

Image: FN shortcuts for Windows and Mac.

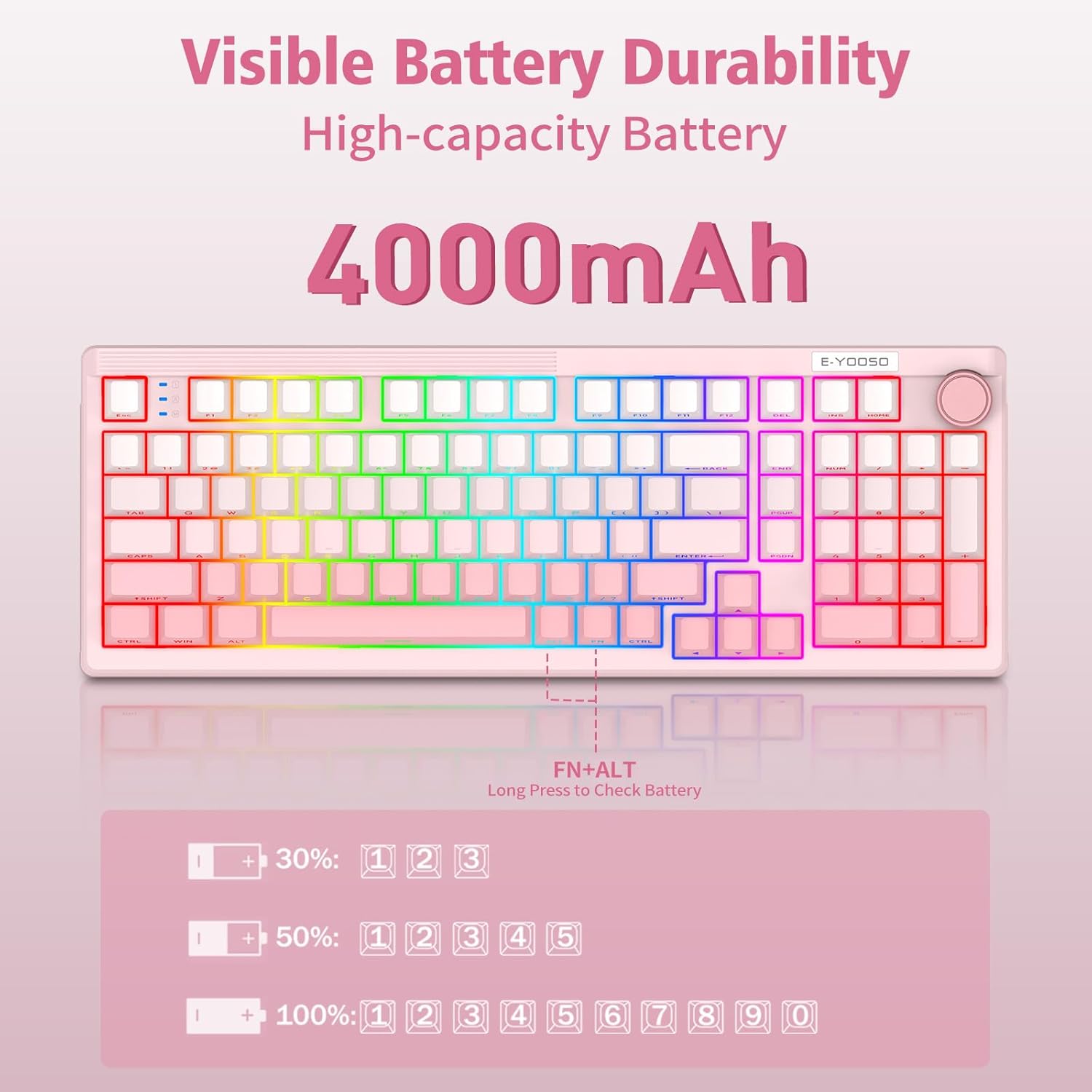

2.4 Battery Status and Power Saving

The keyboard is equipped with a 4000mAh high-capacity battery. To check the battery level, press FN + ALT. The indicator lights will show the approximate charge level (e.g., 1-3 for 30%, 1-5 for 50%, 1-9 for 100%).

For power saving, the backlight will automatically turn off after 3 minutes of inactivity in wireless mode. Press any button to wake up the keyboard.

Image: Visible Battery Durability and status check.

3. Одржување

3.1 Прекинувачи што може да се заменат со топла струја

The E-YOOSO Z-101 features a hot-swappable PCB, supporting both 3-pin and 5-pin mechanical switches. This allows for easy customization and replacement of switches without soldering.

Image: Hot-swappable switch sockets and switch specifications.

3.2 PBT копчиња

The keyboard comes with durable PBT keycaps, known for their resistance to shine and wear over time, ensuring a long-lasting aesthetic and tactile experience.

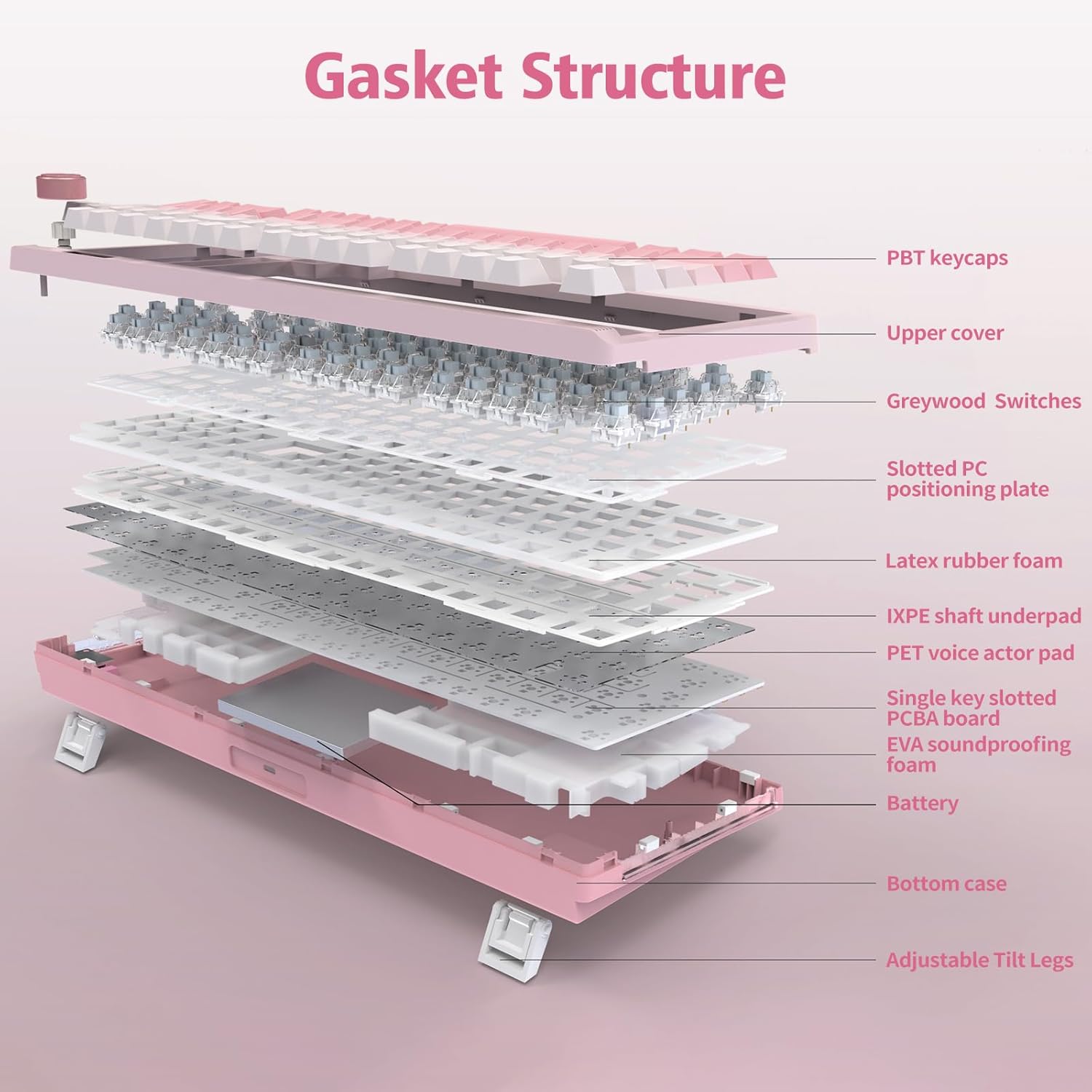

3.3 Структура на заптивката

The keyboard incorporates an advanced five-layer filling structure with an integrated silicone pad and precise PCB slotting. This design optimizes key resilience, board stability, and effectively dampens hollow cavity sounds, providing a consistent and pure typing sound.

Image: Gasket Structure components.

4 Смена на проблеми

• Тастатурата не реагира: Ensure the keyboard is charged or connected via USB-C. Check the connection mode switch (2.4G, BT, or Wired) is set correctly.
• Проблеми со спарување со Bluetooth: Make sure the keyboard is in Bluetooth pairing mode (FN + 1/2/3 flashing). Remove previous pairings from your device and try pairing again.
• Проблеми со поврзување од 2.4 GHz: Ensure the USB receiver is securely plugged into your device. Try a different USB port.
• Задното осветлување не работи: Check if the backlight is turned off (FN + Space). Adjust brightness using the knob or FN + ↑/↓.
• Клучевите не се регистрираат: If specific keys are not working, ensure the switches are properly seated. For hot-swappable switches, gently remove and reinsert them.
• Неочекувано однесување: Perform a factory reset by long-pressing FN + ESC for 3 seconds.

5. Спецификации

6. Гаранција и поддршка

For software drivers and further customization options, please visit: bit.ly/Z-101Driver

For warranty information or technical assistance, please contact E-YOOSO customer support through your retailer or the official E-YOOSO webсајт.
