1. Вовед
Thank you for choosing the Rowenta X-Clean 10 Wet & Dry Cordless Electric Mop Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.
The Rowenta X-Clean 10 is designed to simplify your cleaning routine with its innovative Wet & Dry technology, allowing you to vacuum and mop simultaneously. Its advanced features include a self-cleaning and automatic drying system, long battery autonomy, and an intuitive LED screen.
Производот завршиview
Ова видео дава општ прегледview of the Rowenta X-Clean 10's features and capabilities, demonstrating its efficiency in handling various cleaning tasks.
2. Вклучени компоненти
Your Rowenta X-Clean 10 package includes the following items:
- Cordless Wet & Dry Mop Vacuum Cleaner
- Charging Base for Self-Wash and Self-Dry Cycle
- Четка за чистење
- Полнач
- Additional Roller
- Дополнителен филтер
Image: All components included in the Rowenta X-Clean 10 package.
3. Поставување и првична употреба
3.1 Assembly and Charging
- Соберете ја рачката: Insert the handle into the main body of the vacuum cleaner until it clicks securely into place. Ensure the lock icon is visible, indicating proper assembly.
- Поврзете ја базата за полнење: Place the charging base on a flat surface near a power outlet. Connect the charger cable to the base and then plug it into the wall outlet.
- Почетна наплата: Place the assembled vacuum cleaner onto the charging base. Allow it to charge for approximately 3 hours and 30 minutes before the first use to ensure full battery capacity. The LED screen will indicate charging status.
This video demonstrates the assembly of the handle, connecting the charging base, and placing the unit for charging.
3.2 Полнење на резервоарот за чиста вода
- Remove the Clean Water Tank: Locate the clean water tank on the main unit and remove it.
- Наполнете со вода: Open the tank cap and fill it with clean tap water. The tank can hold water up to 50 degrees Celsius.
- Додај детергент (опционално): If desired, add a small amount of floor cleaning detergent according to the detergent manufacturer's instructions. Do not overfill.
- Reinsert the Tank: Close the tank cap securely and reinsert the clean water tank into the vacuum cleaner until it clicks into place.
Image: Filling the clean water tank with water and adding detergent.
4. Упатства за работа
4.1 Вклучување и избор на режим
- Вклучување: Press the power button on the handle to turn on the appliance.
- Одбери јазик: Follow the voice instructions to select your preferred language.
- Изберете режим на чистење: Користете го копчето за избор на режим за да се движите низ достапните режими на чистење:
- Auto/AI Mode: Automatically adjusts water flow and suction power based on detected dirt levels.
- Режим на бришење: For removing surface water.
- Тивок режим: For quiet cleaning of lightly soiled floors.
- Турбо режим: For ingrained stains requiring higher water flow.
- Макс режим: For the most difficult stains.
Image: The LED screen displaying cleaning modes.
Image: Selecting a cleaning mode on the handle.
4.2 Перформанси на чистење
The Rowenta X-Clean 10 is designed for optimal results, vacuuming and mopping in a single pass. It effectively cleans both solids and liquids on various sealed hard floor types, including wood, marble, laminate, and tiles.
- Технологија за влажно и суво чистење: Experience a comprehensive cleaning solution that saves time and covers every inch of your home.
- Чистење без напор: The self-propelled roller system makes the cordless mop ultra-light, weighing only 0.8 kg in hand, with a flexible 180-degree design for maximum reach under furniture.
- Долга автономија: Enjoy up to 60 minutes of cleaning on a single charge, suitable for both unexpected spills and thorough cleaning sessions.
- Anti-Tangle Roller: The microfiber roller is designed to prevent long hair and pet hair from tangling, ensuring smoother and easier cleaning.
- Smart Noise Reduction: Advanced noise dampening technology ensures a quieter cleaning experience.
Image: The vacuum cleaner effectively cleaning various spills on a hard floor.
Image: The 180-degree flat design for cleaning under furniture.
Image: Demonstrating the long battery autonomy for cleaning various areas.
Image: The anti-tangle brush roll design.
5. Одржување
Regular maintenance ensures optimal performance and extends the lifespan of your Rowenta X-Clean 10.
5.1 Self-Cleaning and Automatic Drying System
The exclusive bidirectional self-cleaning and self-drying system makes maintenance effortless:
- Започнете со самочистење: After each use, ensure the charging base is connected. Place the vacuum cleaner on the base and press the dedicated self-cleaning button. The system will automatically clean the roller with fresh water.
- Автоматско сушење: Following the self-cleaning cycle, the automatic drying process at 65°C will begin to eliminate water from the roller, preventing bacteria formation and odors.

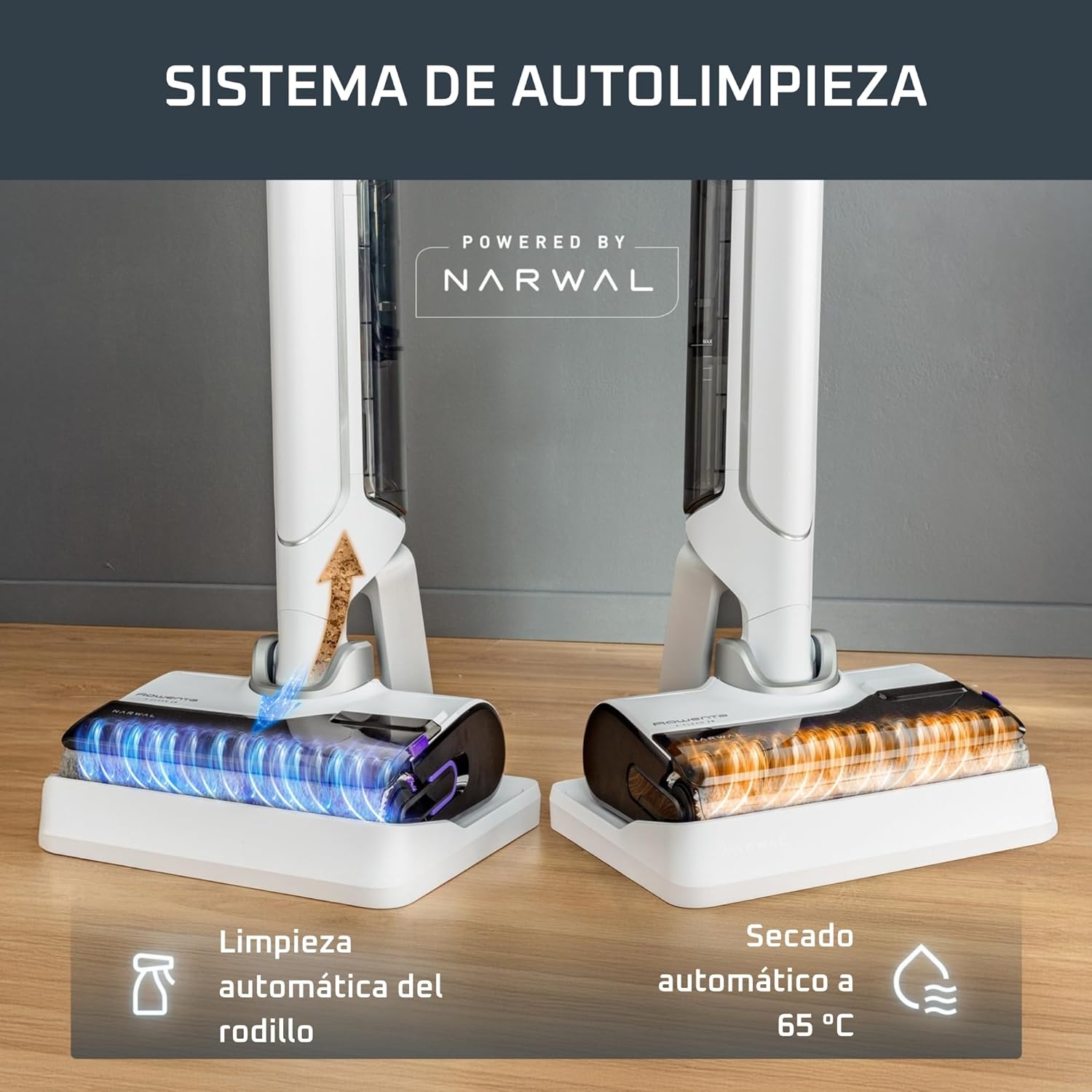

Image: The self-cleaning and automatic drying system in action.
This video demonstrates how to initiate the self-cleaning cycle and the automatic drying process.
5.2 Празнење и чистење на резервоарот за валкана вода
- Отстранете го резервоарот за валкана вода: After each use, remove the dirty water tank from the main unit.
- Separate Solids and Liquids: The tank is designed to separate solids from liquids. Empty the solid debris into a trash bin.
- Empty Liquid Waste: Pour the dirty water down the drain.
- Исплакнете и исчистете: Rinse the tank thoroughly with clean water. You can use the provided cleaning brush to remove any residue.
- Повторно вметнете го резервоарот: Ensure the tank is clean and dry before reinserting it into the vacuum cleaner.
Image: The dirty water tank separating solids from liquids.
5.3 Weekly Maintenance: Cleaning the Brush Roll and Head
Once a week, perform a deeper clean of the brush roll and vacuum head:
- Remove Side Brush Cover: Carefully remove the side cover of the brush head.
- Отстранете ја ролната со четка: Take out the main brush roll.
- Чиста глава на четката: Use the cleaning brush to thoroughly clean any hair or debris from the brush head area.
- Чиста ролна со четка: Rinse the brush roll under running water, ensuring all dirt and hair are removed.
- Суви компоненти: Allow the brush roll and side cover to air dry completely for 24 hours before reassembling.
- Чиста база за полнење: Wipe down the charging base with a damp cloth to remove any accumulated dirt or water.
This video demonstrates the weekly cleaning process for the brush roll and vacuum head.
6 Смена на проблеми
If you encounter any issues with your Rowenta X-Clean 10, please refer to the following common problems and solutions before contacting customer support.
| Проблем | Можна причина | Решение |
|---|---|---|
| Апаратот не се вклучува | Слаба батерија или не е наполнета | Place the appliance on the charging base and ensure it is fully charged (approx. 3.5 hours). |
| Слаби перформанси на вшмукување | Dirty water tank full, filter clogged, or brush roll obstructed | Empty and clean the dirty water tank. Clean or replace the HEPA filter. Remove any obstructions from the brush roll. |
| Истекување на вода | Clean or dirty water tank not properly installed or damaged | Ensure both water tanks are securely closed and correctly inserted. Check for any cracks or damage to the tanks. |
| Ролерот не се врти | Hair or debris tangled in the brush roll, or brush roll not properly installed | Remove the brush roll and clean it thoroughly. Ensure it is reinstalled correctly. |
| Self-cleaning cycle not starting | Charging base not connected to power, or clean water tank empty | Ensure the charging base is plugged in. Fill the clean water tank. |
7. Спецификации
Technical details for the Rowenta X-Clean 10 (Model YY5785FE):
- Број на модел: YY5785FE
- Димензии на производот: 23 x 27 x 116 cm
- Тежина на производот: 4.15 кг
- Извор на енергија: Батерија
- Батерија: 1 x 12V (вклучено)
- Voltage: 21.6 волти
- Ватtage: 200 вати
- Специјална карактеристика: Безжичен, лесен
- Тип на филтер: ХЕПА филтер
- Препорака за површина: Sealed hard floors
- Производител: Groupe Seb
- Земја на потекло: Кина
Image: Product dimensions of the Rowenta X-Clean 10.
8. Гаранција и поддршка
Your Rowenta X-Clean 10 is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For technical assistance, spare parts, or any questions not covered in this manual, please contact Rowenta customer support. Contact details can be found on the official Rowenta webна страницата или на пакувањето на вашиот производ.
Always use genuine Rowenta spare parts and accessories to ensure the continued safe and efficient operation of your appliance.
