Goeco 12W LED Wall Lamp Упатство за употреба

1. Важни безбедносни инструкции

Read all instructions carefully before installation and use. Keep this manual for future reference.

• Електрична безбедност: Always turn off the main power supply at the circuit breaker before installing, cleaning, or performing any maintenance on the fixture.
• Квалификуван електричар: Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical wiring to ensure safety and compliance with local electrical codes.
• Voltagд Компатибилност: Обезбедете волtage of your power supply matches the fixture's requirements (220-240V).
• Површина за монтирање: Mount the fixture only on a structurally sound surface that can support its weight.
• Жици: Ensure all electrical connections are secure and properly insulated. Do not expose wires to sharp edges or abrasive surfaces.
• Топлина: Do not touch the light fixture immediately after operation, as it may be hot. Allow it to cool before handling.
• Само за внатрешна употреба: Овој производ е наменет само за внатрешна употреба. Не изложувајте на влага или надворешни влијанија.

2. Производот завршиview

The Goeco 12W LED Wall Lamp (Model 922/VM4-307) is a modern indoor lighting fixture featuring a unique leaf-shaped design. It provides warm 3000K light, suitable for various indoor spaces.

Клучни карактеристики:

• Модерен дизајн: Chrome-plated metal frame with two light sources forming a decorative leaf shape.
• Акрилик Лampсенка: High light transmittance, excellent heat dissipation, and durable.
• Integrated LED Chips: Provides 3000K warm light, 12W power, with no flicker or glare, ensuring a long service life.
• Издржлива конструкција: Robust iron base and aluminum body, galvanized for a smooth, bright finish.

Слика 2.1: Goeco LED Wall Lamp Components. This image highlights the acrylic lampshade, known for its high light transmittance and good heat dissipation, and the integrated LED chips that provide a flicker-free, glare-free light source with a long service life.

Слика 2.2: Goeco LED Wall Lamp demonstrating its no flicker and no glare feature, ensuring comfortable illumination.

3. Спецификации

Слика 3.1: Detailed dimensions of the Goeco LED Wall Lamp, showing its length, width, and height in both centimeters and inches.

Слика 3.2: Energy efficiency label for the Goeco LED Wall Lamp, indicating its energy class and consumption. For more details, refer to the official EU EPREL database: Врска до базата на податоци EPREL

4. Содржина на пакетот

Проверете дали сите компоненти се присутни и неоштетени пред да продолжите со инсталацијата.

• Goeco 12W LED Wall Lamp (1 единица)
• Mounting Material (screws, wall anchors, etc.)
• Упатство за употреба (овој документ)

5. Инструкции за инсталација

The product comes pre-wired for easy installation. Follow these steps carefully. Ensure the power supply is OFF before starting.

1. Подгответе се за инсталација:
   • Turn off the main power supply to the installation area at the circuit breaker.
   • Gather necessary tools (e.g., screwdriver, drill, wire strippers).
2. Обележете ја позицијата за монтирање:
   • Determine the desired location for the wall lamp.
   • Use the mounting bracket (if separate) or the lamp's base as a template to mark the drilling points on the wall.
3. Drill Holes and Install Wall Anchors:
   • Дупчете дупки на означените позиции.
   • Insert appropriate wall anchors into the drilled holes, if required for your wall type.
4. Поврзете жици:
   • Внимателно поврзете го lamp's wires to your household electrical circuit wires. Typically, this involves connecting live to live, neutral to neutral, and ground to ground. Refer to local electrical codes for proper wiring color conventions.
   • Ensure all connections are secure using wire nuts or terminal blocks.
5. Монтирајте го Lamp:
   • Порамнете го lamp's base with the mounting holes.
   • Обезбедете го lamp to the wall using the provided screws. Do not overtighten.
6. Вратете ја моќноста:
   • Откако лamp is securely mounted and all connections are checked, turn the main power supply back on at the circuit breaker.
   • Тестирајте го lamp за да се осигура дека функционира правилно.

6. Операција

The Goeco 12W LED Wall Lamp operates as a standard wall-mounted light fixture.

• Вклучување/исклучување: Контролирајте го lamp using your existing wall switch connected to the fixture's circuit.
• Излез на светлина: Л.amp provides a consistent 3000K warm white light. It is not dimmable unless connected to a compatible dimming switch and the lamp itself is specified as dimmable (this model is not specified as dimmable).

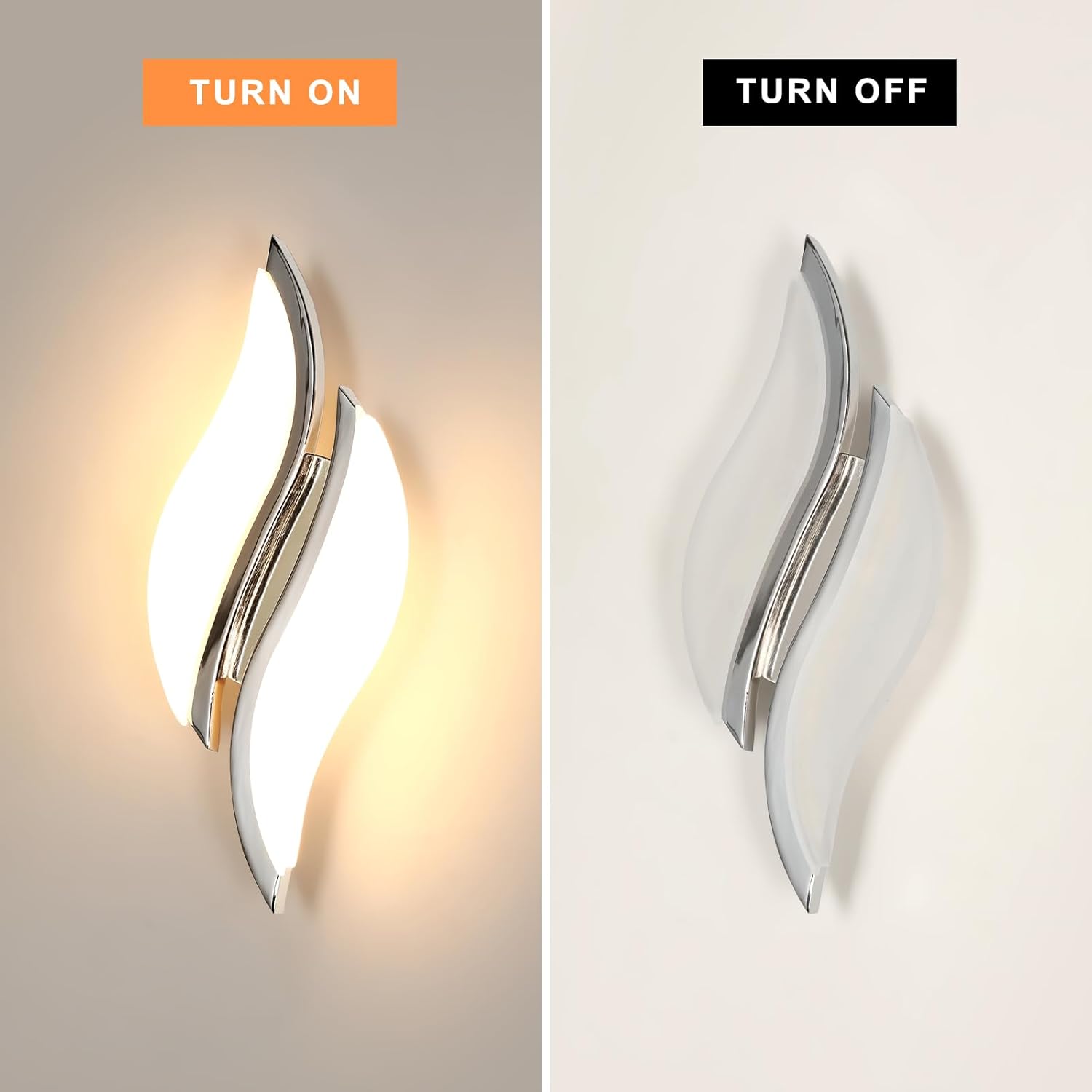

Слика 6.1: Visual representation of the Goeco LED Wall Lamp in its 'Turn On' (illuminated) and 'Turn Off' (unilluminated) states.

7. Одржување и грижа

Regular maintenance ensures the longevity and optimal performance of your LED wall lamp.

• Чистење:
  • Before cleaning, ensure the power supply to the lamp е исклучен.
  • Избришете го lamp's surface with a soft, dry, or slightly damp крпа.
  • Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or acrylic.
• Замена на сијалицата: The LED chips are integrated and not user-replaceable. The lamp is designed for a long service life. If the LEDs fail, the entire fixture may need replacement.
• Инспекција: Periodically check for any loose connections or signs of damage. If any issues are found, consult a qualified electrician.

8 Смена на проблеми

If you encounter issues with your Goeco LED Wall Lamp, погледнете ги следните вообичаени проблеми и решенија:

Ако проблемот продолжи откако ќе ги испробате овие решенија, контактирајте ја службата за корисници или квалификуван електричар.

9. Гаранција и поддршка

This product is covered by a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support, replacement parts, or warranty claims, please contact Goeco customer service through the retailer where the product was purchased.

Производител: Goeco

Број на модел: 922/VM4-307

Прв достапен: 20 декември 2025 година
