Упатство за користење на скенерот FOXWELL NT630 Plus OBD2

1. Вовед

The FOXWELL NT630 Plus is a professional diagnostic scan tool designed for comprehensive vehicle system analysis. It provides advanced functions for Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS) diagnostics, along with full OBD2 capabilities. This manual provides instructions for setting up, operating, maintaining, and troubleshooting the device to ensure accurate and efficient vehicle diagnostics.

2. Производот завршиview

The NT630 Plus scanner features a 2.8-inch color screen and an intuitive button layout for easy navigation. It comes with a durable carrying case for protection and portability.

Image: The FOXWELL NT630 Plus scanner with its protective carrying case, displaying the main menu interface.

The included carrying case is designed to securely hold the scanner and its accessories, offering organized protection.

Image: The interior of the FOXWELL carrying case, showing compartments for the scanner and cables.

The case dimensions are optimized for portability and protection.

Image: Diagram illustrating the dimensions of the FOXWELL NT630 Plus carrying case.

3. Поставување

3.1 Првично вклучување и поврзување

1. Лоцирајте го OBD2 портот на возилото, кој обично се наоѓа под контролната табла од страната на возачот.
2. Connect the NT630 Plus scanner to the vehicle's OBD2 port using the provided cable.
3. Turn the vehicle's ignition to the 'ON' position (engine off). The scanner will power on automatically.
4. Follow the on-screen prompts to select language and regional settings.

3.2 Ажурирања на софтверот

The NT630 Plus offers lifetime free WiFi updates to ensure the software remains current with the latest vehicle models and diagnostic protocols. No subscription or PC is required for updates.

1. Ensure the scanner is connected to a stable Wi-Fi network.
2. Navigate to the 'Update' menu on the device.
3. Select 'Check for Updates' and follow the on-screen instructions to download and install any available updates.

4. Упатства за работа

4.1 Основни OBD2 функции

The NT630 Plus supports all 10 OBDII test modes for comprehensive engine diagnostics and emissions testing.

Image: Screen display showing various OBD2 functions including Freeze Frame, Sensor Test, On-Board Monitor Test, EVAP Monitor, Auto VIN, and DTC Lookup.

• Прочитајте ги кодовите: Ги презема дијагностичките кодови за проблеми (DTC) од компјутерот на возилото.
• Исчисти кодови: Erases DTCs from the vehicle's computer after repairs are completed.
• Пренос на податоци во живо: Displays real-time data parameters (e.g., RPM, fuel trim, temperature) in text or graph format.
• Подготвеност за I/M: Ја проверува состојбата на мониторите поврзани со емисиите за да утврди дали возилото е подготвено за тест за емисии.
• Тест на вградениот монитор: Презема резултати за компоненти и системи на погонскиот склоп поврзани со емисиите.
• Тест на мониторот за EVAP: Започнува тест на Системот за контрола на испарувачките емисии.
• Тест на сензор за О2: Ги презема резултатите од тестот на мониторот на O2 сензорот.
• Пребарување DTC: Provides detailed descriptions of generic and manufacturer-specific DTCs.
• Автоматски VIN: Automatically identifies vehicle information (availability varies by vehicle).

4.2 ABS and SRS System Diagnostics

The NT630 Plus provides comprehensive diagnostic capabilities for the Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS).

Image: Diagram illustrating the ABS, SRS, and OBD2 systems within a vehicle, highlighting the scanner's ability to read and clear codes, view live data, and freeze frames.

• Прочитајте ги DTC-ата за ABS/SRS: Identifies fault codes related to the ABS and SRS systems.
• Јасни ABS/SRS DTC-и: Erases fault codes after necessary repairs. Note: This tool reads SRS codes only and cannot reset or erase airbag crash-related fault codes.
• Live ABS Data: Displays real-time parameters such as wheel speeds (FR/FL), total mileage, brake pressure, and ABS pump status.

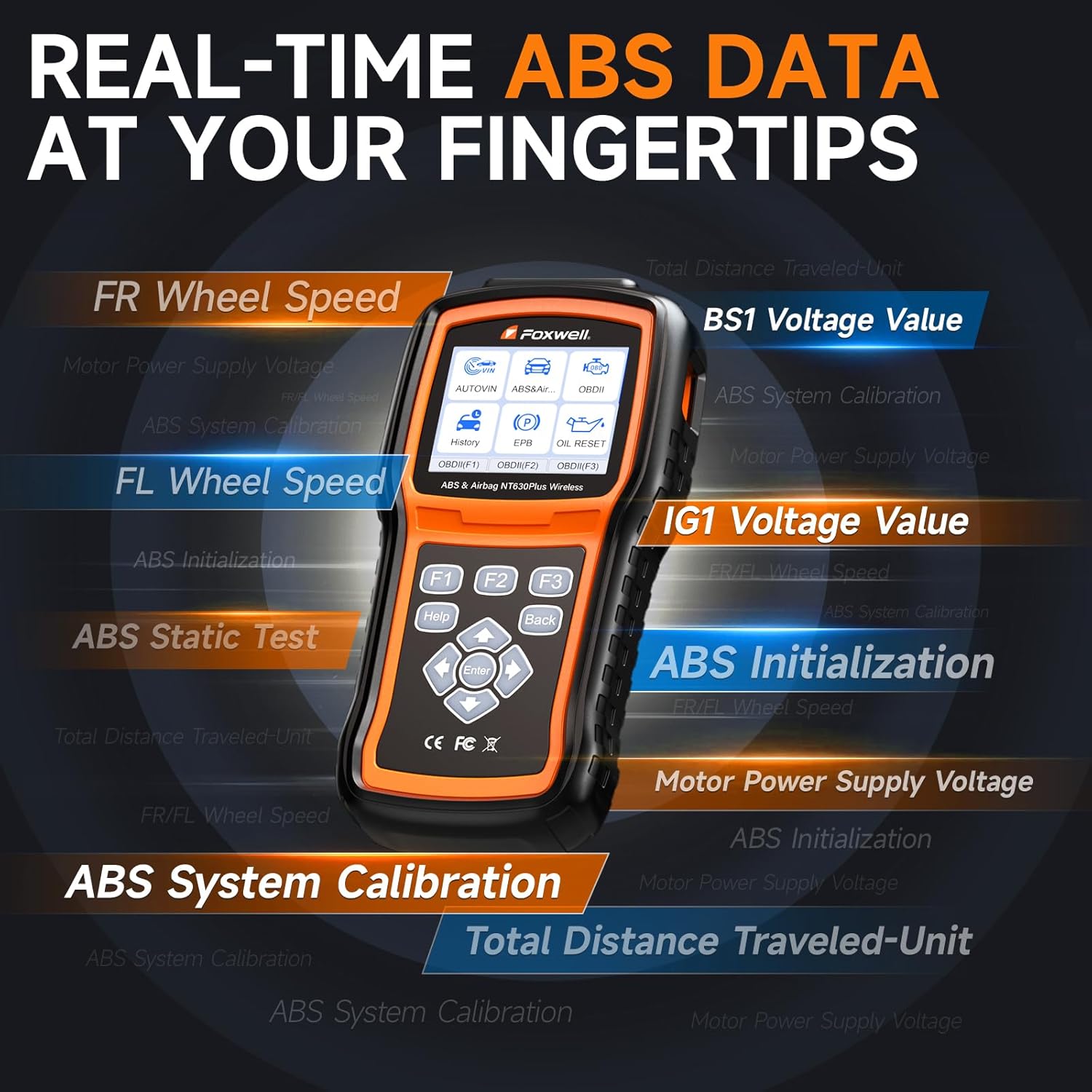

Image: The scanner's display showing various real-time ABS data parameters like FR Wheel Speed, FL Wheel Speed, ABS System Calibration, and Motor Power Supply Voltage.

4.3 Двонасочна контрола (активен тест)

The NT630 Plus supports bi-directional control, allowing the user to send commands to vehicle systems to test component functionality.

Image: The scanner connected to a vehicle, illustrating the bi-directional communication for active tests such as ABS Manual Control Test, Auto Bleed Test, ABS Motor Test, ABS Version Test, and Actuator Test.

• ABS Pump/Valve Activation: Activate the ABS pump and valves to diagnose hydraulic or circuit problems.
• Тестови на актуаторот: Perform various actuator tests to verify component operation.

4.4 Специјални функции за ресетирање

The scanner includes essential reset functions to assist with common vehicle maintenance procedures.

• Калибрација на SAS: Performs Steering Angle Sensor calibration.
• Ресетирање на светлото за масло: Го ресетира светлото за сервисирање на маслото по промената на маслото.
• EPB Maintenance: Services the Electronic Parking Brake system, including deactivating and reactivating the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement.

5. Одржување

5.1 ABS Auto Bleed

The ABS auto bleed function helps remove air from the brake lines after replacing brake components or fluid, restoring firm brake pedal response.

Image: A visual representation of the ABS auto bleed process, showing replacement of the ABS pump, adding brake fluid, and the resulting firm brake pedal.

Note: ABS auto bleeding is supported only on specific vehicle models and is incompatible with vehicles that lack an integrated ABS auto-bleed function. Consult your vehicle's service manual for compatibility.

1. Ensure the vehicle is safely supported and the brake fluid reservoir is at the correct level.
2. Connect the NT630 Plus scanner to the vehicle.
3. Navigate to the 'ABS' menu and select 'Auto Bleed'.
4. Follow the on-screen instructions, which may involve opening and closing bleed screws at each wheel while the scanner activates the ABS pump.

5.2 Општа грижа за уредот

• Одржувајте го уредот чист и без прашина и влага.
• Чувајте го скенерот во неговата заштитна торбичка за носење кога не е во употреба.
• Избегнувајте испуштање на уредот или изложување на екстремни температури.

6 Смена на проблеми

6.1 Заеднички прашања и решенија

• Скенерот не се вклучува:
  • Осигурајте се дека OBD2 кабелот е безбедно поврзан и со скенерот и со OBD2 портата на возилото.
  • Проверете дали палењето на возилото е во положба „ВКЛУЧЕНО“.
  • Check the vehicle's fuse for the OBD2 port.
• Грешка во комуникацијата со возилото:
  • Confirm the vehicle supports the OBD2 protocol (most vehicles manufactured after 1996 do).
  • Осигурајте се дека батеријата на возилото е доволно наполнета.
  • Try connecting to a different vehicle to rule out scanner malfunction.
• DTCs cannot be cleared:
  • Ensure the underlying fault causing the DTC has been repaired. Codes will reappear if the issue persists.
  • Some critical SRS crash-related codes cannot be cleared by this tool.
• ABS Auto Bleed not working:
  • Verify that your specific vehicle model supports the integrated ABS auto-bleed function.
  • Ensure all steps in the auto bleed procedure are followed correctly.

7. Спецификации

8. Гаранција и поддршка

The FOXWELL NT630 Plus comes with lifetime free WiFi updates, ensuring your device always has the latest software and vehicle coverage without additional subscription fees. For technical assistance, product support, or warranty inquiries, please refer to the official FOXWELL website or contact their customer service through the channels provided with your product packaging.
