Gisam Cordless Angle Grinder (Model KL003) - Instruction Manual

Производот завршиview

This manual provides essential information for the safe and effective operation of your Gisam Cordless Angle Grinder. Please read it thoroughly before use and keep it for future reference.

Клучни карактеристики:

• Моќен мотор без четки: Equipped with a 1000W brushless motor, delivering a maximum speed of 12000 rpm. Features 4-stage speed regulation for versatile applications, including metal cutting, stone polishing, and wood sanding. The brushless design ensures longer lifespan, reduced noise, lower energy consumption, and stable operation.
• Cordless Design with Dual High-Performance Batteries: Comes with two 4Ah batteries and a specialized charger, offering extended usage time without the need for continuous charging. The cordless design provides maximum mobility for outdoor, elevated, or confined space work.
• Efficient Cooling System & 125mm Working Surface: An intelligent multi-directional cooling system rapidly dissipates heat, preventing overheating and ensuring long-term reliability. The 125mm working surface accommodates a wide range of processing tasks.
• Ergonomic Anti-Vibration Handle & Professional Protection Shield: Features a lightweight body and an ergonomic anti-vibration rubber handle for comfortable, non-slip grip and reduced fatigue during prolonged use. The integrated protection shield blocks grinding splashes, significantly reducing injury risk.
• Сеопфатен комплет додатоци од 12 дела: Includes three types of discs: cutting discs for precise metal and pipe cutting, flap discs for efficient rust and burr removal, and wood sanding discs for shaping and polishing wood surfaces.

1. Поставување

1.1 Инсталација на батерија

Ensure the battery is fully charged before installation. Align the battery with the slot at the base of the grinder handle and slide it in until it clicks securely into place. To remove, press the release button on the battery and slide it out.

Image: Gisam Cordless Angle Grinder with a 4.0 Ah battery securely attached.

1.2 Protective Guard Installation

The protective guard is crucial for safety. Position the guard over the spindle head, ensuring it covers the top and sides of the disc. Secure it firmly according to the tool's mechanism, typically by tightening a screw or engaging a quick-release lever. Ensure it is correctly oriented to deflect sparks away from you.

Image: Step-by-step diagram illustrating the correct installation of the protective guard and various abrasive discs.

1.3 Disc Installation

To install a disc, first ensure the grinder is switched off and the battery is removed. Press the spindle lock button to prevent the spindle from rotating. Place the inner flange onto the spindle, then position the desired cutting, grinding, or flap disc onto the inner flange. Finally, screw on the outer flange and tighten it securely with the provided wrench. Ensure the disc is centered and firmly held.

Слика: Детална view of the spindle lock and the process for installing different types of discs.

1.4 Side Handle Attachment

Attach the side handle to one of the designated threaded holes on the grinder's gear housing. This provides additional stability and control during operation. Choose the position that offers the most comfortable and secure grip for your task.

Image: The Gisam angle grinder featuring its anti-vibration handle, emphasizing ergonomic comfort and control.

2. Упатства за работа

2.1 Вклучување/исклучување

To power on the grinder, ensure the battery is inserted and the protective guard and disc are correctly installed. Press the safety lock button (if present) and then squeeze the trigger switch. To turn off, release the trigger switch. Always maintain a firm grip on the tool.

2.2 Местење на брзината

The Gisam Angle Grinder features 4-stage speed regulation. Use the speed selector switch to choose the appropriate RPM for your material and task. Lower speeds are suitable for fine machining or polishing, while higher speeds are for rapid cutting and heavy-duty grinding.

• Speed 1 (3500 RPM): Fine machining.
• Speed 2 (6500 RPM): Light grinding, cutting, repair work.
• Speed 3 (9500 RPM): High-efficiency cutting, moderate grinding.
• Speed 4 (12000 RPM): Rapid cutting, heavy-duty grinding.

Слика: Визуелен приказ на 4-китеtage variable speed control on the Gisam angle grinder.

2.3 Техники на сечење и мелење

Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection. Position the workpiece securely. For cutting, use a cutting disc and apply steady, even pressure, allowing the disc to do the work. For grinding, use a grinding disc and maintain an angle of approximately 15-30 degrees to the workpiece for optimal material removal and control.

Image: The Gisam angle grinder actively cutting a metal piece, generating sparks.

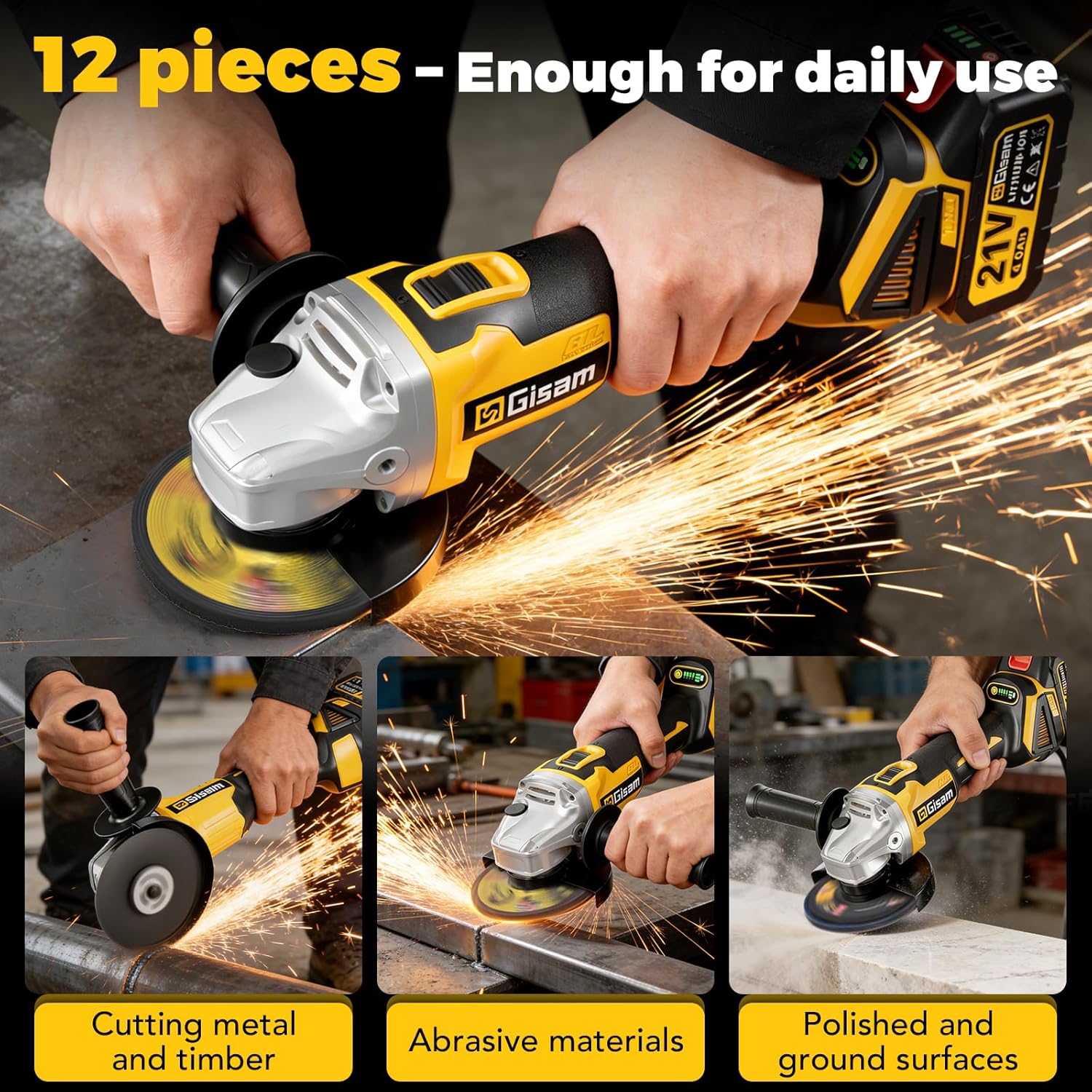

Image: The Gisam angle grinder in action, grinding a metal surface.

2.4 General Usage Demonstration (Similar Product)

The following video demonstrates general usage and features common to cordless angle grinders, using a similar product. Please note that specific features or appearance may vary from your Gisam model.

Video: Demonstration of a cordless angle grinder (Seesii brand) showing metal cutting, brushless motor, battery installation, lock-on design, PVC tube cutting, 2-position handle, and metal grinding. This video illustrates common angle grinder operations.

3. Одржување

3.1 Чистење

Regularly clean the tool, especially the air vents, to prevent dust and debris buildup which can lead to overheating. Use a soft brush or compressed air to clear the vents. Do not use water or harsh chemicals.

Image: Illustration of the Gisam angle grinder's internal airflow system for rapid heat dissipation, crucial for maintenance.

3.2 Замена на диск

Always replace worn, chipped, or damaged discs immediately. Follow the disc installation instructions (Section 1.3) carefully to ensure safe replacement. Use only discs rated for the grinder's maximum RPM and intended application.

3.3 Грижа за батерии

To prolong battery life, store batteries in a cool, dry place away from direct sunlight. Do not overcharge or completely discharge the batteries. Charge them regularly, even if not in use, to maintain optimal performance.

4 Смена на проблеми

Заеднички прашања:

• Алатката не се вклучува:
  Можна причина: Батеријата не е наполнета или неправилно е вметната.
  Решение: Ensure the battery is fully charged and securely clicked into place. Check the power switch and safety lock.
• Прегревање за време на употреба:
  Можна причина: Blocked air vents or excessive continuous use.
  Решение: Clean air vents thoroughly. Allow the tool to cool down. Avoid applying excessive pressure during operation.
• Poor cutting/grinding performance:
  Можна причина: Worn, incorrect, or improperly installed disc.
  Решение: Inspect the disc for wear or damage and replace if necessary. Ensure the correct type of disc is used for the material and that it is securely installed. Adjust operating speed as needed.
• Прекумерна вибрација:
  Можна причина: Damaged or unbalanced disc, loose components.
  Решение: Check the disc for damage or imbalance and replace if needed. Ensure all components, including the side handle and guard, are securely fastened.

5. Спецификации

6. Гаранција и поддршка

For warranty claims, technical support, or any product-related inquiries, please contact the manufacturer or your retailer. Keep your purchase receipt as proof of purchase. Specific warranty terms and conditions may vary and are typically provided with the product packaging or on the manufacturer's official webсајт.
